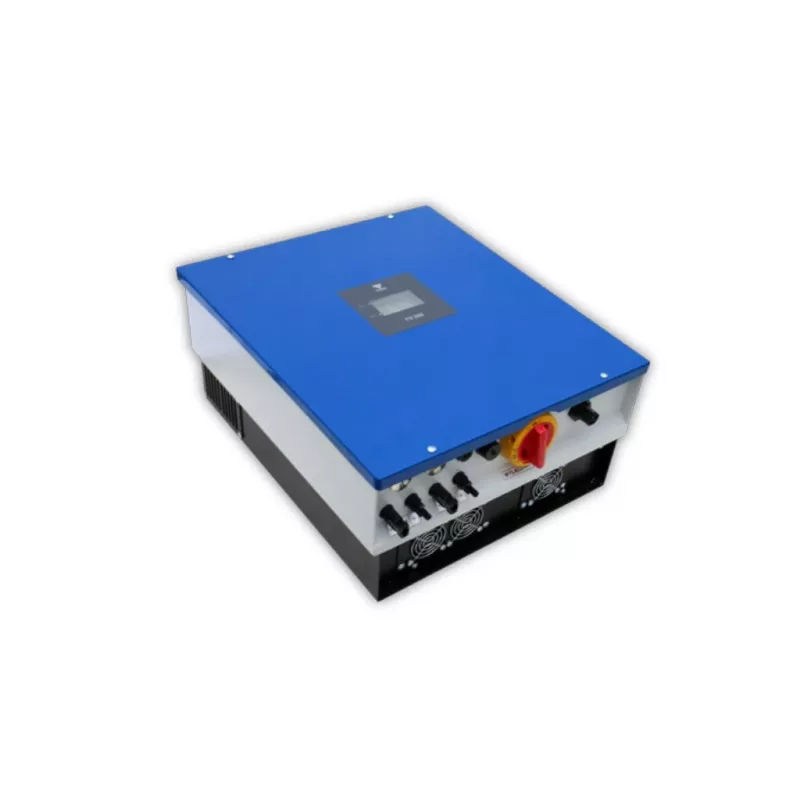

F&F TWERD PS300-WT Inversor Trifásico Ligado à Rede 10kW

The F&F TWERD PS300-WT 10kW inverter is a high-efficiency, on-grid three-phase inverter designed for residential and commercial solar installations. With a rated output of 10 kW and a maximum efficiency of 98.6%, it ensures optimal energy conversion from your solar panels. The inverter features dual MPPTs, an IP65 protection rating, and a wide operating temperature range, making it suitable for outdoor installation.

Advantages

High efficiency (up to 98.6%) reduces energy losses. Dual MPPT trackers maximize energy harvest from panels with different orientations. IP65 rating allows for flexible outdoor installation. Natural convection cooling ensures silent operation and long lifespan. LCD display provides real-time monitoring of system performance.

Suitable for

• Residential and commercial solar systems
• Three-phase grid connections
• Outdoor installations
• Systems requiring high efficiency and reliability

Key specifications

• Rated AC Output Power: 10 kW
• Max AC Output Power: 11 kVA
• Max DC Input Power: 13 kW
• Max DC Input Voltage: 1000 V
• MPPT Voltage Range: 200 V - 950 V
• Number of MPPTs: 2
• Max Input Current per MPPT: 12.5 A
• Nominal AC Output Voltage: 3/N/PE, 230V/400V
• AC Grid Frequency: 50 Hz / 60 Hz (Auto-sensing)
• Max Output Current: 16 A
• Power Factor: >0.99 (adjustable 0.8 leading - 0.8 lagging)
• Total Harmonic Distortion (THD): <3%
• Max Efficiency: 98.6%
• European Efficiency: 98.1%
• Protection Degree: IP65
• Operating Temperature Range: -25°C to +60°C
• Cooling Method: Natural Convection
• Display: LCD
• Communication Interfaces: RS485, Wi-Fi (optional), Ethernet (optional)
• Topology: Transformerless

Recommendations

For optimal performance, pair this inverter with high-quality solar panels and ensure proper ventilation. The optional Wi-Fi or Ethernet module enables remote monitoring. Always consult a certified installer for system design and installation.
