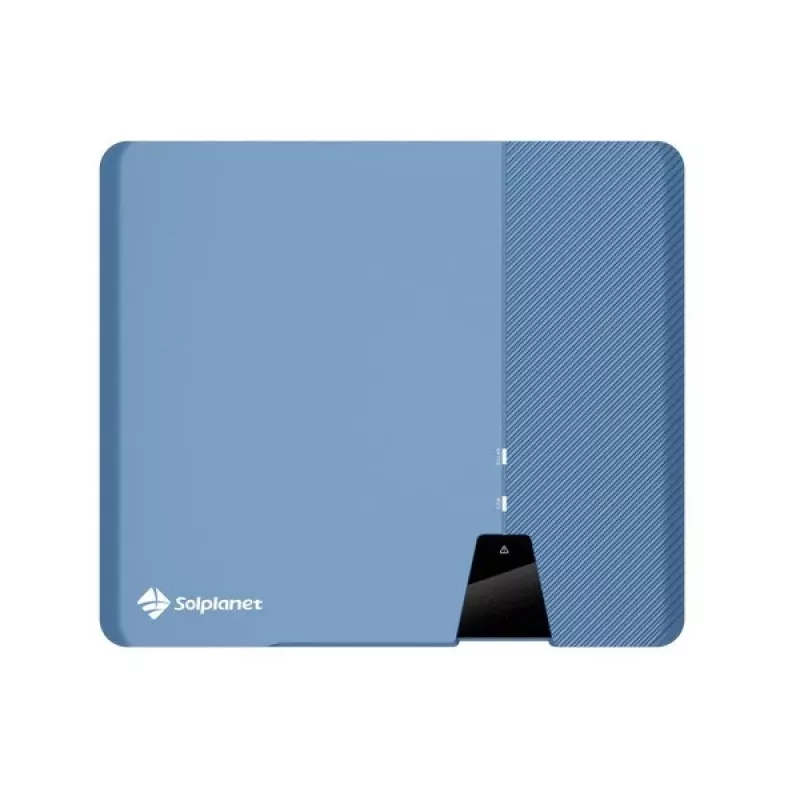

SOLPLANET ASW 15K-LT-G2 Pro AFCI 15kW Inversor de 3 fases com 2 MPPT, interruptor DC, Wi-Fi, RS485, proteção contra sobretensões DC Tipo II

The SOLPLANET ASW 15K-LT-G2 Pro AFCI is a high-performance three-phase inverter designed for residential and commercial solar installations. With a nominal output of 15 kW and advanced safety features including integrated AFCI and DC surge protection Type II, it ensures reliable and efficient energy conversion.

Advantages

High efficiency up to 98.6%, dual MPPT for flexible panel configuration, integrated DC switch for safe maintenance, and comprehensive communication options including Wi-Fi and RS485 with optional 4G.

Suitable for

• Residential and commercial solar systems
• Three-phase grid connections
• Installations requiring arc fault protection

Key specifications

• Nominal AC Output Power: 15 kW
• Max. AC Output Power: 16.5 kVA
• Number of MPPTs: 2
• Max. DC Input Voltage: 1100 V
• MPPT Voltage Range: 150 V - 1000 V
• Max. Input Current (MPPT1 / MPPT2): 32 A / 20 A
• Number of DC Inputs (MPPT1 / MPPT2): 2 / 1
• AC Grid Type: 3-Phase
• Max. Efficiency: 98.6%
• Integrated DC Switch: Yes
• Arc Fault Circuit Interrupter (AFCI): Yes
• DC Surge Protection: Type II
• Communication Interfaces: Wi-Fi, RS485 (4G optional)
• Ingress Protection Rating: IP65
• Cooling Type: Smart Fan Cooling
• Operating Temperature Range: -25°C to +60°C

Recommendations

For optimal performance, pair with compatible solar panels and ensure proper installation by a certified professional. The optional 4G module enables remote monitoring in areas without Wi-Fi.
