Solplanet ASW10kH-T2 Inversor híbrido 10 kW trifásico 2 MPPT interruptor DC WLAN/LAN RS485 LiFePO4

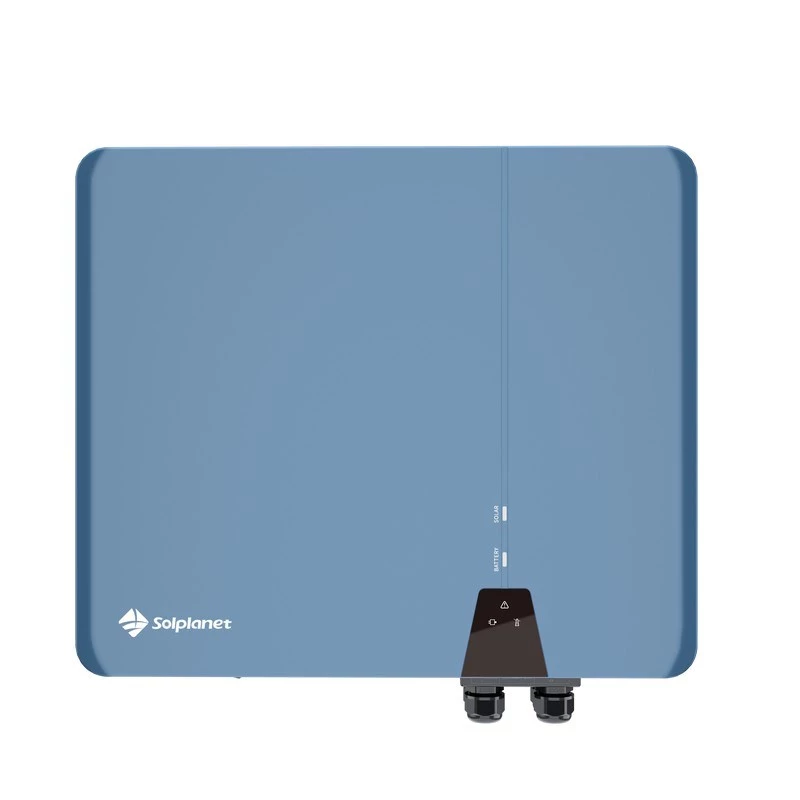

Solplanet ASW10kH-T2 is a three-phase hybrid inverter that delivers 10 kW of continuous power for residential and small commercial solar-plus-storage systems. Its dual MPPT design with a wide 150–1000 V input range maximizes energy harvest from varied roof orientations, while the integrated high-voltage LiFePO4 battery interface enables seamless backup and self-consumption optimization.

Advantages

The ASW10kH-T2 achieves up to 98.2% maximum efficiency and 97.5% European efficiency, ensuring minimal conversion losses. Transformerless topology reduces weight and improves thermal performance. Built-in WLAN, LAN, and RS485 interfaces provide flexible monitoring and control, while the integrated DC switch simplifies installation and maintenance. With an IP65-rated enclosure, the inverter withstands harsh outdoor conditions from -25°C to +60°C.

Suitable for

• Three-phase homes with high energy demand and rooftop PV arrays
• Small commercial installations requiring reliable hybrid power management
• Systems using high-voltage LiFePO4 battery banks (150–600 V)
• Installers seeking a 10-year warranty and robust communication options

Key specifications

• Rated AC output power: 10 kW (three-phase, 16 A max)
• Max DC input power: 15,000 W with 2 MPPT trackers
• MPPT voltage range: 150–1000 V; start-up voltage: 180 V
• Max input current per MPPT: 26 A (13 A per string)
• Battery compatibility: high-voltage LiFePO4, 150–600 V, max charge/discharge current 25 A
• Communication: WLAN, LAN, RS485
• Protection degree: IP65; operating temperature -25°C to +60°C
• Warranty: 10 years

Recommendations

For maximum performance, pair the ASW10kH-T2 with a compatible high-voltage LiFePO4 battery and size the PV array to stay within the 15 kW DC input limit. Use the Solplanet monitoring app via WLAN or LAN for real-time energy insights and firmware updates.
