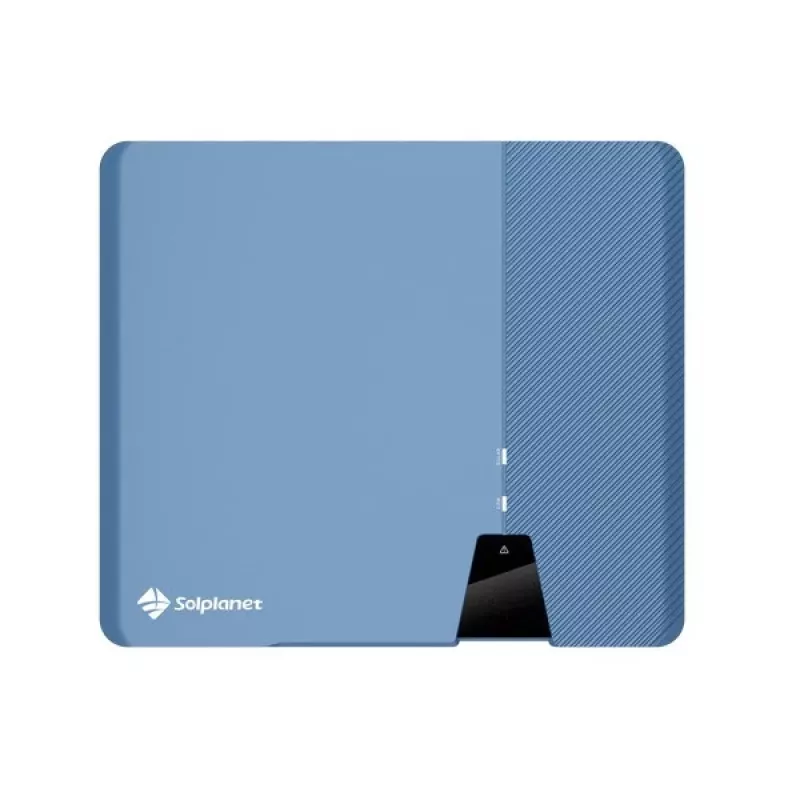

SOLPLANET ASW 10K-LT-G2 Pro AFCI Inversor trifásico de rede 10kW 2 MPPT

The SOLPLANET ASW 10K-LT-G2 Pro AFCI is a high-performance three-phase grid-tied inverter designed for residential and commercial solar installations. With a rated output of 10 kW and advanced safety features including integrated AFCI and Type II DC surge protection, it ensures reliable and efficient energy conversion. The inverter features 2 MPPT trackers (20A/16A) and supports Wi-Fi and RS485 communication, with optional 4G connectivity.

Advantages

High efficiency up to 98.6%, natural convection cooling for silent operation, integrated DC switch for safety, and robust IP65 protection for outdoor installation. The AFCI function provides arc fault detection, enhancing system safety.

Suitable for

• Residential and commercial solar power systems
• Three-phase grid connections
• Systems requiring advanced monitoring and communication

Key specifications

• Rated AC Output Power: 10000 W
• Max. AC Output Power: 11000 VA
• Max. DC Input Power: 15000 W
• Number of MPPTs: 2 (MPPT1: 20A, MPPT2: 16A)
• MPPT Voltage Range: 150 V - 1000 V
• Max. Input Voltage: 1100 V
• Max. Efficiency: 98.6%
• European Efficiency: 98.0%
• Communication: Wi-Fi, RS485 (Optional 4G)
• DC Surge Protection: Type II
• AC Surge Protection: Type II
• AFCI: Yes
• IP Rating: IP65
• Cooling: Natural Convection
• Operating Temperature: -25 °C to +60 °C

Recommendations

For optimal performance, pair with compatible solar panels and ensure proper installation by a certified electrician. The optional 4G module enables remote monitoring via the SOLPLANET portal.
