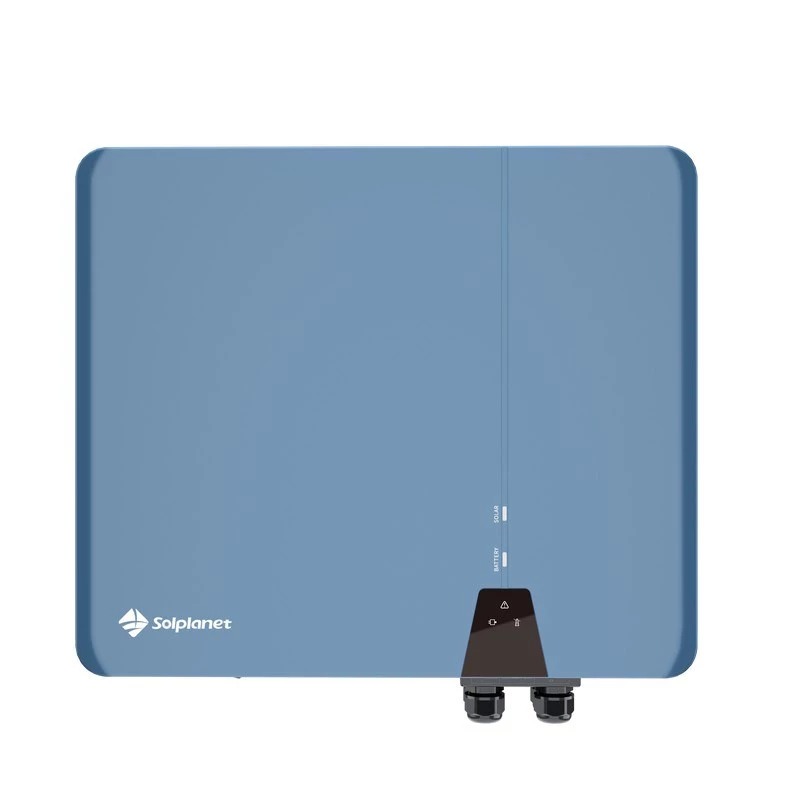

Solplanet ASW12kH-T2 Inversor híbrido, 3 fases, 12 kW, 2 MPPT, interruptor DC, WLAN/LAN/RS485, AFCI, adequado para baterias de alta tensão, 10 anos de garantia

The Solplanet ASW12kH-T2 is a high-performance 3-phase hybrid inverter designed for residential and commercial solar systems. With 12kW nominal output power, dual MPPT trackers, and support for high-voltage LiFePO4 batteries, it offers maximum energy yield and reliability. Integrated DC switch, AFCI, and comprehensive communication interfaces ensure safe and smart operation.

Advantages

High efficiency up to 98.2%, IP65 protection for outdoor installation, natural convection cooling (no fans), and a 10-year warranty provide peace of mind. The inverter supports both grid-tied and off-grid operation with battery backup.

Suitable for

• Residential and small commercial solar installations
• Systems requiring battery storage with high-voltage Li-ion or LiFePO4 batteries
• Applications needing remote monitoring via WLAN, LAN, or RS485

Key specifications

• Inverter Type: Hybrid
• Phase: 3-Phase
• Nominal AC Output Power: 12 kW
• Max. AC Output Power: 13.2 kVA
• Number of MPPTs: 2
• Max. PV Input Power: 18000 W
• Max. DC Input Voltage: 1100 V
• MPPT Voltage Range: 150 V - 1000 V
• Max. Input Current per MPPT: 16 A
• Battery Type: High-Voltage Li-ion (LiFePO4 Compatible)
• Battery Voltage Range: 150 V - 600 V
• Max. Charge/Discharge Current: 25 A
• Communication Interfaces: WLAN, LAN, RS485, USB
• Safety Features: Integrated DC Switch, AFCI, Reverse Polarity Protection
• Max. Efficiency: 98.2%
• Protection Degree: IP65
• Cooling: Natural Convection
• Warranty: 10 Years
• Nominal AC Voltage: 3/N/PE, 230/400 V
• Topology: Transformerless

Recommendations

For optimal performance, pair with compatible high-voltage batteries and ensure proper installation by a certified electrician. The inverter's AFCI feature enhances safety by detecting arc faults.
