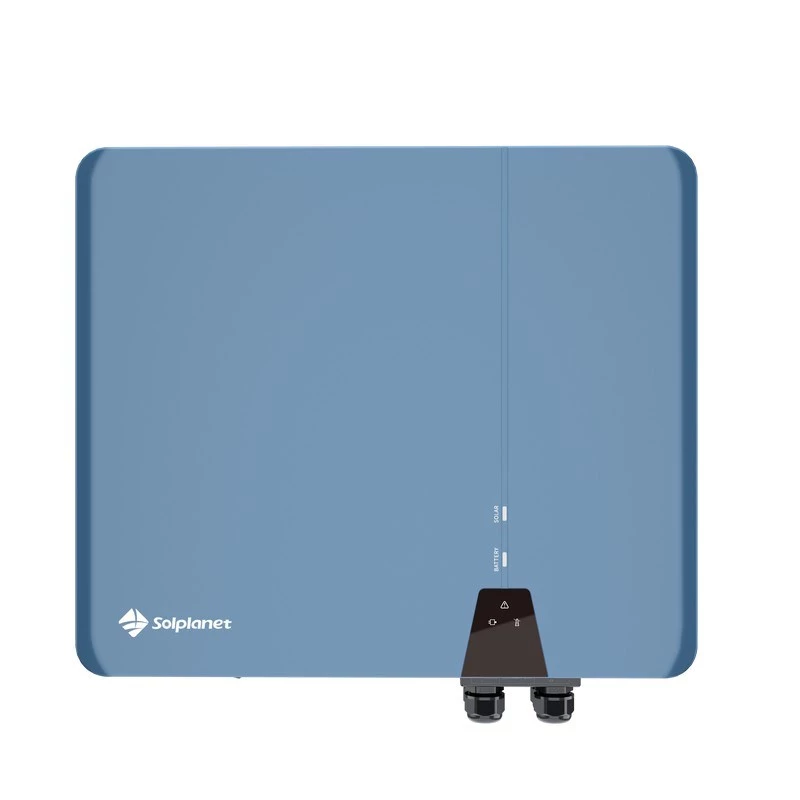

Solplanet ASW06kH-T2 Inversor híbrido 6kW 3 fases 2 MPPT interruptor DC WLAN/LAN/RS485 compatível com baterias de alta tensão 10 anos de garantia

The Solplanet ASW06kH-T2 is a high-performance hybrid inverter designed for residential and commercial solar energy systems. With 6kW rated AC output power and 3-phase operation, it efficiently converts DC power from solar panels into usable AC electricity while supporting high-voltage LiFePO4 batteries for energy storage. This inverter features 2 MPPT trackers, an integrated DC switch, and multiple communication interfaces including WLAN, LAN, and RS485 for easy monitoring and control. Backed by a 10-year warranty, it ensures reliable and long-lasting performance.

Advantages

• Hybrid functionality allows both grid-tied and battery backup operation.
• High efficiency up to 98.2% maximizes energy yield.
• Wide MPPT voltage range (150-850V) provides flexibility in panel configuration.
• Integrated DC switch enhances safety during installation and maintenance.
• IP65 rating ensures protection against dust and water jets, suitable for outdoor installation.
• Natural convection cooling eliminates noisy fans and reduces maintenance.

Suitable for

• Residential solar systems with battery storage
• Commercial installations requiring 3-phase power
• Off-grid or backup power applications
• Systems using high-voltage LiFePO4 batteries

Key specifications

• Inverter Type: Hybrid
• Phase: 3-Phase
• Rated AC Output Power: 6000 W
• Max. AC Output Power: 6600 W
• Max. DC Input Power: 9000 W
• Number of MPPT Trackers: 2
• MPPT Voltage Range: 150 - 850 V
• Max. DC Input Voltage: 1000 V
• Max. Efficiency: 98.2%
• Euro Efficiency: 97.5%
• Battery Type Compatibility: High-Voltage LiFePO4
• Battery Voltage Range: 80 - 495 V
• Max. Charge/Discharge Power: 6000 W
• Communication Interfaces: WLAN, LAN, RS485
• Integrated DC Switch: Yes
• Ingress Protection (IP) Rating: IP65
• Cooling Method: Natural Convection
• Operating Temperature Range: -25°C to +60°C
• Warranty: 10 Years

Recommendations

For optimal performance, pair this inverter with compatible high-voltage LiFePO4 batteries and ensure proper ventilation for natural convection cooling. Professional installation by a certified electrician is recommended.
