EPEVER QI Series 1000W 60A carregador inversor MPPT onda sinusoidal pura 12V para 230V

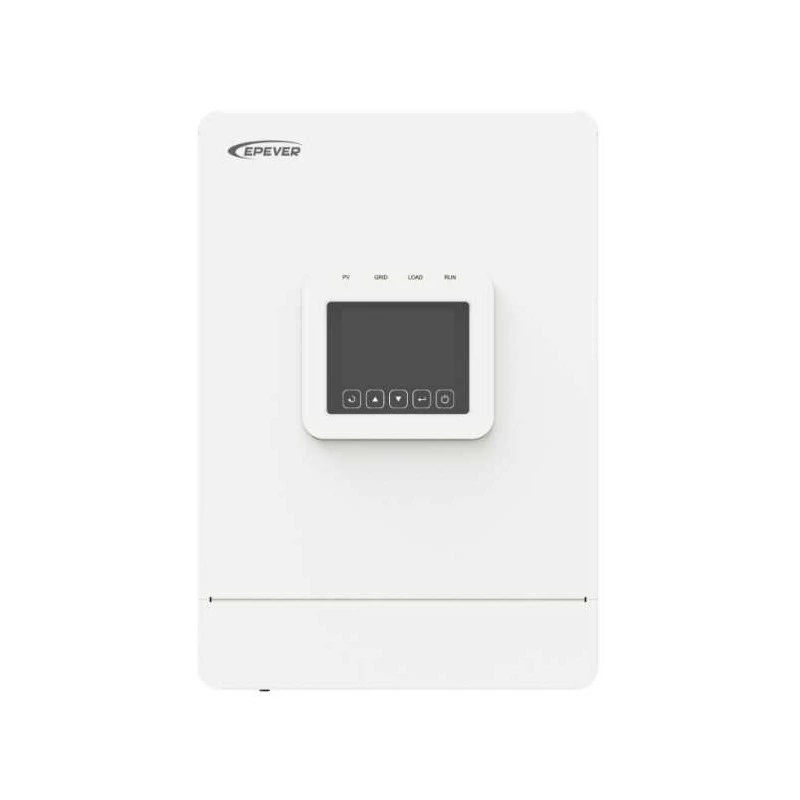

The EPEVER QI1012-0610C is a high-performance inverter charger combining a 1000W pure sine wave inverter with a 60A MPPT solar charge controller. Designed for off-grid and backup power systems, it efficiently converts 12V DC battery power to 230V AC while managing solar charging with maximum power point tracking. Ideal for RVs, boats, cabins, and small home systems.

Advantages

Integrated MPPT solar charger maximizes PV harvest; pure sine wave output ensures clean power for sensitive electronics; dual charging from solar and AC; configurable output voltage and frequency; comprehensive protections for long system life.

Suitable for

• Off-grid solar power systems
• RV and marine applications
• Backup power for home or office
• Remote monitoring stations

Key specifications

• Inverter Type: Pure Sine Wave
• Rated Power: 1000W
• Surge Power: 2000W (5 seconds)
• Battery Voltage: 12V DC
• AC Output: 230V AC (configurable 220V/230V/240V), 50Hz (configurable 50/60Hz)
• Max. PV Input Power: 780W (12V system)
• Max. PV Open Circuit Voltage: 100V
• MPPT Voltage Range: 15V ~ 80V
• Max. MPPT Charge Current: 60A
• Max. AC Charge Current: 20A
• Max. Total Charge Current: 80A (MPPT + AC)
• Transfer Time: 10ms typical
• Peak Efficiency: >92%
• Battery Types: Lead-acid (GEL, AGM, Flooded), Lithium-ion (user-defined)
• Communication: RS485
• Display: LCD
• Protections: Battery over/under voltage, overload, short circuit, over temperature, PV reverse polarity

Recommendations

For optimal performance, use with a 12V battery bank sized to handle the load and solar array within the specified limits. Ensure proper ventilation and cable sizing.
