F-Tronic Z21B quadro de contadores de 2 campos, altura 1050mm, 2-3 HZ, compatível com eHZ, barramento coletor de 5 polos, 63A 7141303

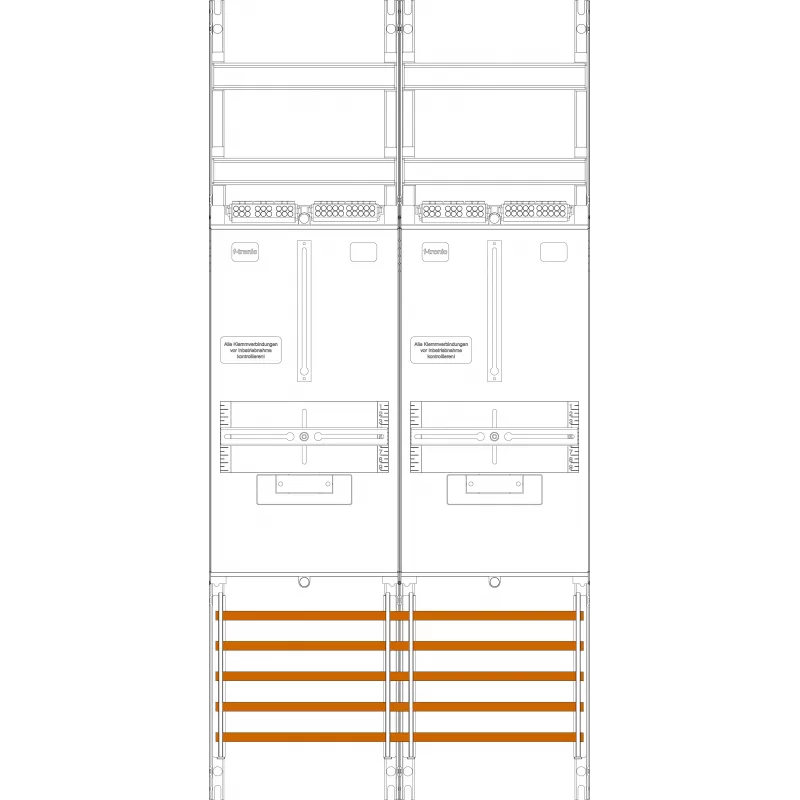

Meter panel for two meter positions in residential and commercial electrical installations. The Z21B series panel supports two electronic household meters (eHZ) and is suitable for 2-3 household connections. Its 5-pole busbar with 10 mm² cross-section handles rated current up to 63 A at 230/400 V AC.

Advantages

Galvanized steel construction ensures durability. The panel accommodates main connection cross-sections up to 25 mm² and meter connection cross-sections up to 16 mm², simplifying wiring. Screw terminals provide secure connections.

Suitable for

• Residential buildings with 2-3 household connections
• Installation in meter cabinets or distribution boards
• Use with eHZ electronic household meters

Key specifications

• Number of fields: 2
• Height: 1050 mm, width: 500 mm, depth: 160 mm
• Rated current: 63 A, rated voltage: 230/400 V AC
• Busbar: 5-pole, 10 mm²
• Material: galvanized steel frame, plastic insulators/covers
• Standards: DIN VDE 0603-1, DIN 43870-1

Recommendations

Verify local regulations and ensure installation by a qualified electrician. The panel is designed for standard meter cabinet mounting.
