Ferramenta combinada de cravar cabos Knipex 97 78 180 T

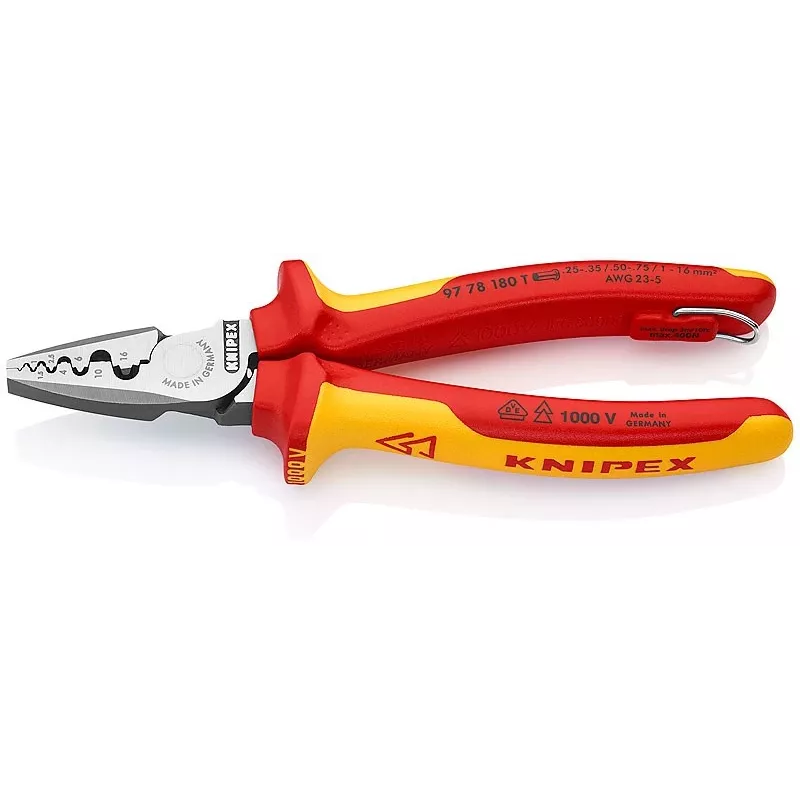

The Knipex 97 78 180 T is a combination cable crimper for crimping end sleeves (ferrules) to DIN 46228 parts 1 and 4 in sizes from 0.25 to 16 mm². At 180 mm length and 254 g weight it offers a light and slim design while maintaining a robust forged, oil-hardened tool-steel construction. The tool includes an integrated insulated tether attachment point for use with a safety lanyard.

Advantages

Improved leverage provides up to 30% easier crimping compared with conventional designs. The pliers feature nine particularly deep, half-round crimping dies with conical side faces for reliable connections between sleeve and conductor. The light, slim profile and ergonomic layout improve handling for repetitive tasks.

Suitable for

• Crimping end sleeves (ferrules) from 0.25 mm² to 16 mm²
• Electrical installation and panel wiring work
• Maintenance and repair of electrical equipment
• Professional electricians and skilled DIY applications

Key specifications

• Brand: Knipex
• Model / MPN: 97 78 180 T
• EAN: 4003773081531
• Length: 180 mm
• Weight: 254 g
• Crimping range: 0.25–16 mm² (DIN 46228 parts 1 + 4)
• Number of dies: 9 half-round dies with conical side faces
• Material: forged, oil-hardened special tool steel
• Feature: integrated insulated tether attachment point

How to use

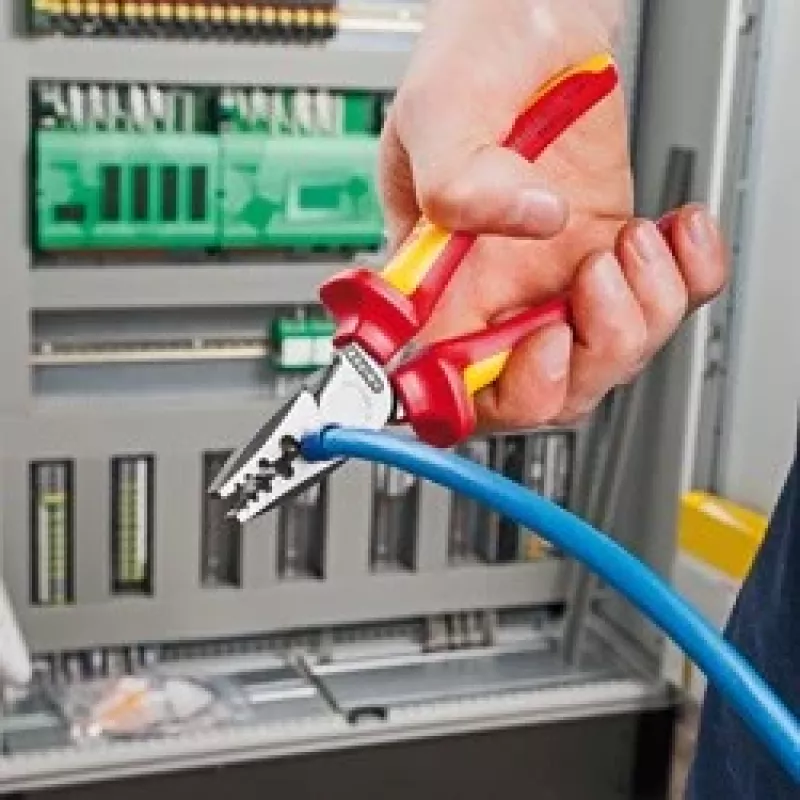

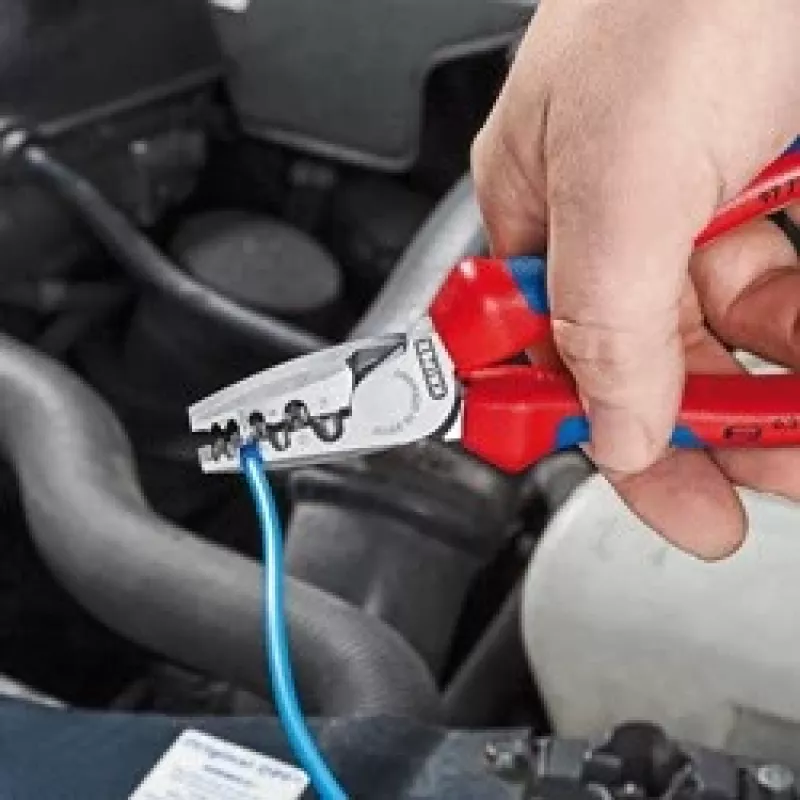

Select the correct die for the sleeve size, position the end sleeve and conductor in the marked half-round die, then close the handles until the crimp is completed. Use the improved leverage and ergonomic grips to perform uniform crimps across the range. Attach a tether to the insulated attachment point when working at height or where tool retention is required.

Recommendations

Use the tool only for crimping ferrules within the specified 0.25–16 mm² range and follow standard electrical safety practices. Keep the dies clean and periodically check for wear; store the pliers dry to preserve the oil-hardened steel.
