Ferramenta de cravar DeLOCK 86830

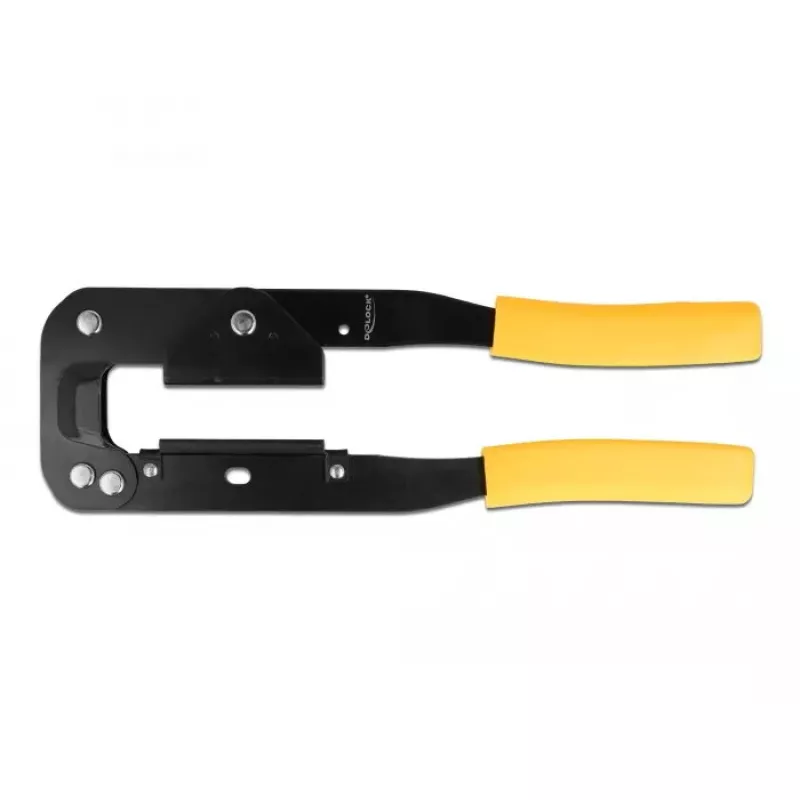

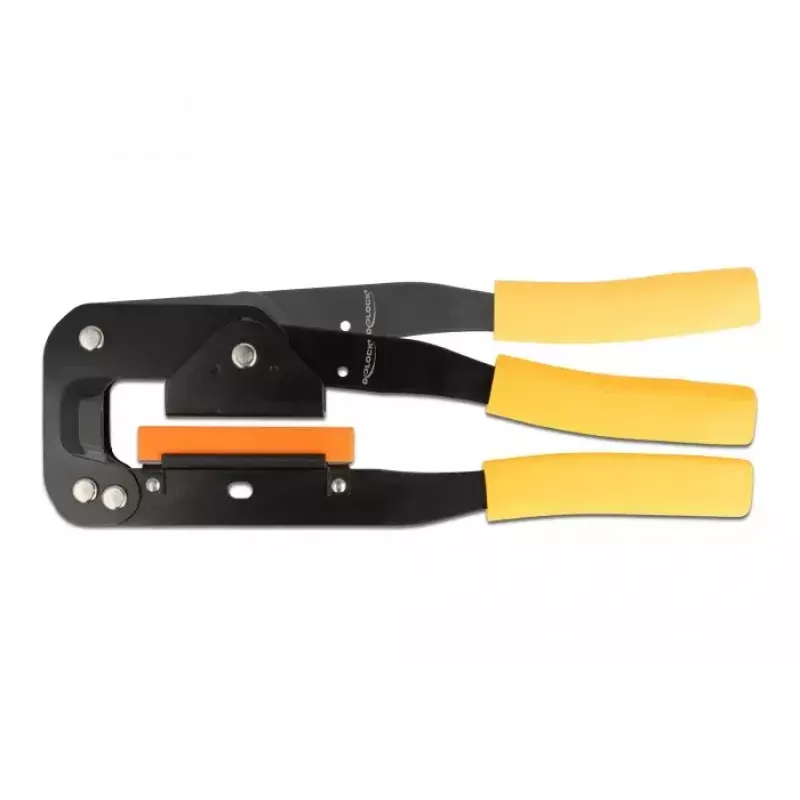

The DeLOCK 86830 crimping tool is made for pressing D-Sub, IDC and similar insulation displacement connectors into suitable flat ribbon cables to achieve reliable electrical contacts. It has a compact, lightweight design (240 mm length, 76 mm width, 4 mm height) and is supplied in a blister pack with one piece per pack. The tool is finished in black and yellow and is suitable for workshop and field use where precise crimps are required.

Advantages

The tool offers precise and repeatable crimping for insulation displacement connectors, a compact form factor that improves access in confined spaces, and a lightweight construction that reduces user fatigue. Its dimensions make it easy to store and carry, and the blister packaging contains a single, ready-to-use unit.

Suitable for

• Crimping D-Sub connectors to ribbon flat cables
• Pressing IDC (insulation displacement) connectors
• Small electronics assembly and cable harness work
• Field repairs and workshop tasks requiring reliable cable connections

Key specifications

• Brand: DELOCK
• Manufacturer part number (MPN): 86830
• EAN: 4043619868308
• Dimensions (L × W × H): 240 × 76 × 4 mm
• Colour: Black, Yellow
• Packaging: Blister, 1 piece per pack
• Category: Network Tools

How to use

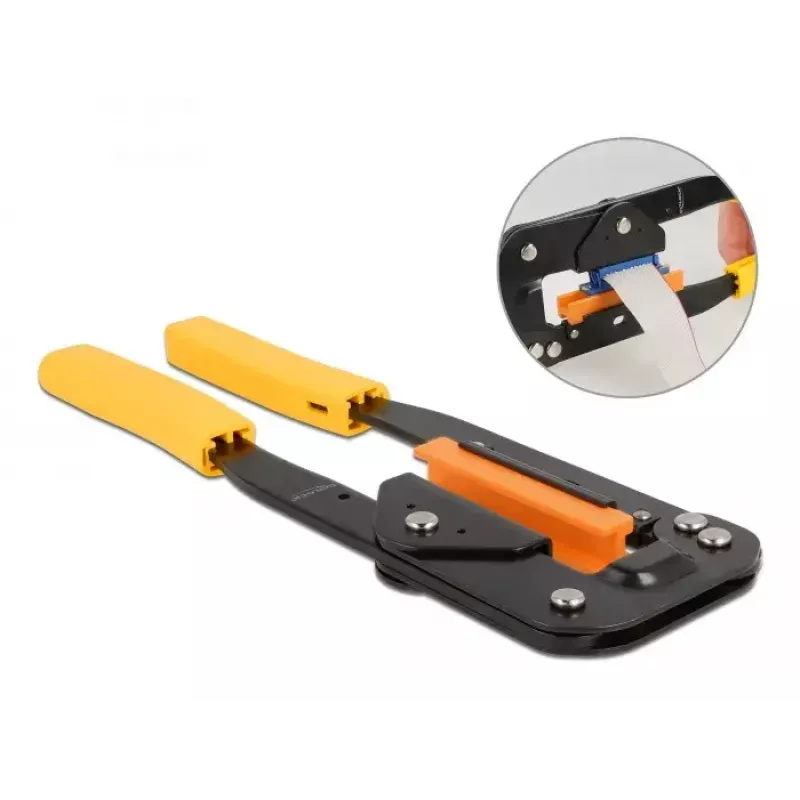

Place the ribbon flat cable and the connector in the correct alignment for insulation displacement, position them in the crimping area of the DeLOCK 86830, and squeeze the handles firmly until the connector is fully pressed onto the cable. Check the connection visually and by continuity testing if required. Follow connector manufacturer instructions for proper wire-to-contact alignment and insertion depth.

Recommendations

Use the tool on compatible ribbon cables and connectors only. Inspect the connector and cable for damage before crimping, and perform a test crimp on a sample cable when using a new connector type. Store the tool dry and clean to maintain performance.
