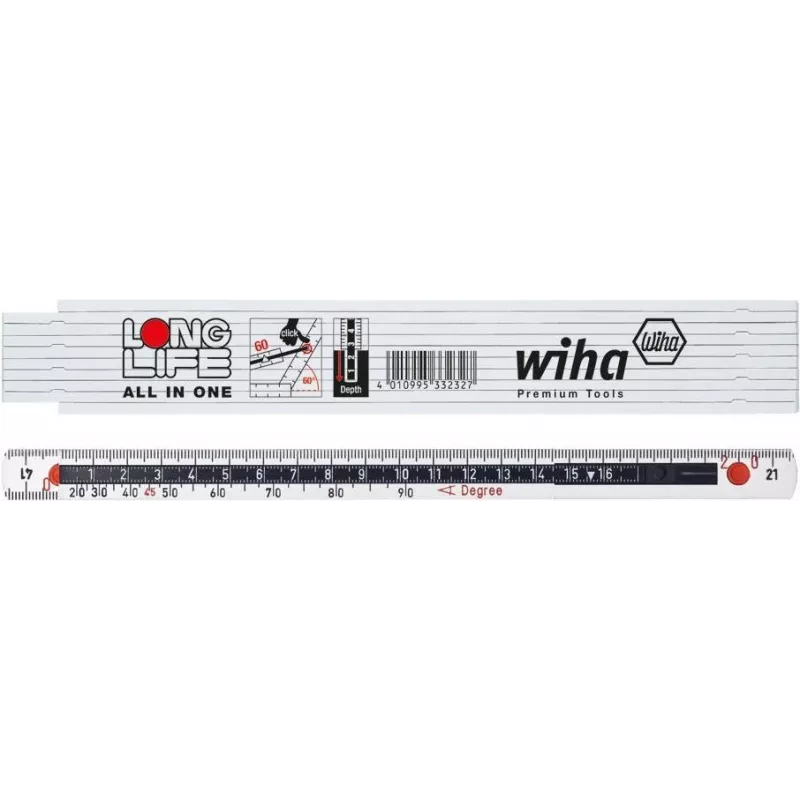

Ferramenta de medição de fibra de vidro Wiha 410 2007 2000 mm

The Wiha 410 2007 is a lightweight 2000 mm measuring tool made from fiberglass-reinforced polyamide offering high strength and resistance to scratches, scores and bending. The material is chemically resistant and does not swell when exposed to water. The tool is 15 mm wide, weighs 139 g and is supplied as a single piece.

Advantages

The recto-verso, double-running scale is readable from both sides and includes a push-out depth gauge for depth measurement and an anchoring feature to measure angles by fixing the depth gauge in the fixation hole. The scale is deep-embossed in black with 1 mm increments and every 10 cm clearly marked in red. Joints are play-free, wear-resistant and dirt-resistant, using a spring pin for constant tension and a handy 90° latching for all joints. The product meets CE conformity and EU standard accuracy class III.

Suitable for

Key specifications

How to use

Extend or fold the measuring tool to the required length and read the measurement from the side appropriate for your position using the recto-verso scale. For depth measurements, push out the depth gauge and position it against the measured surface. To measure angles, anchor the depth gauge into the fixation hole to hold the selected angle and read the scale. Use the 90° latching to lock joints at right angles when required.

Recommendations

Store the tool clean and dry to preserve the embossed scale and joint function; avoid exposure to strong solvents or prolonged UV to maintain material properties.
