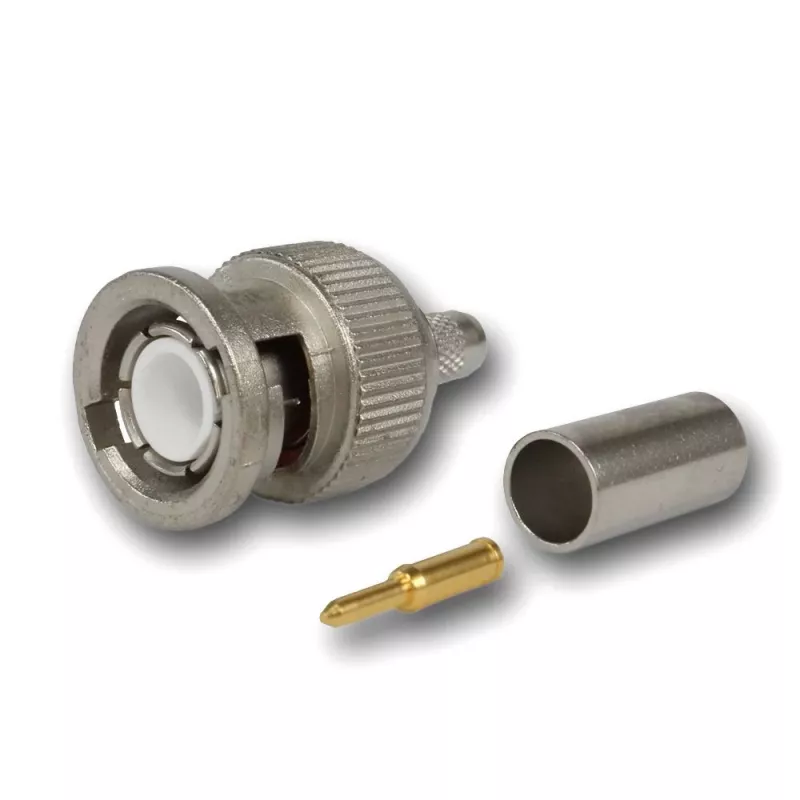

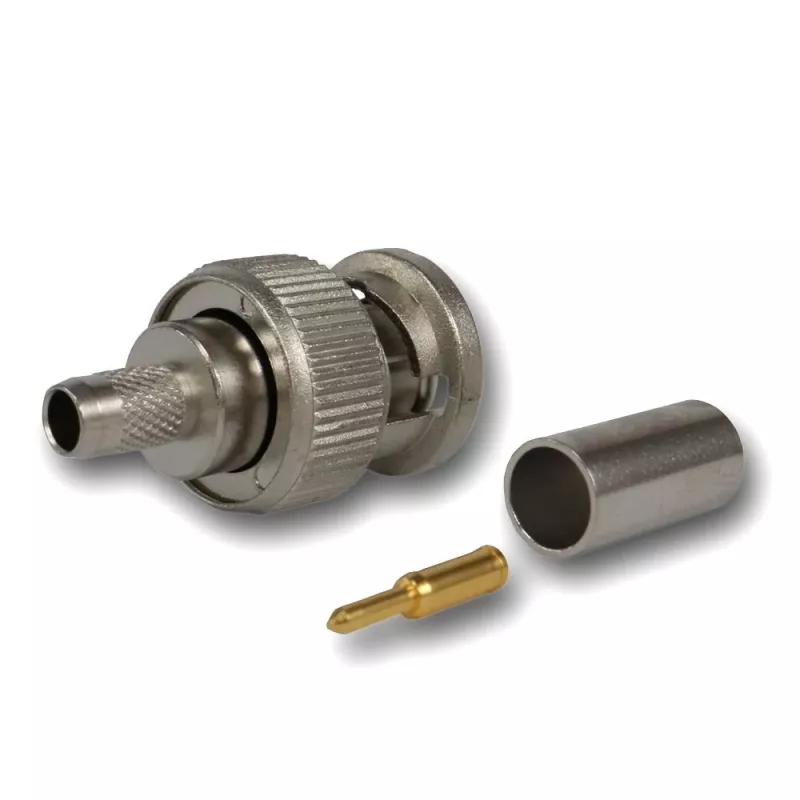

Ficha de cabo BNC Telegärtner crimp G01 50 Ohm, crimp/crimp, standard, A0205, G01 (RG-58 C/U), YR23092 Belden - 1 unid. (J01000F1255Z)

For RF technicians and network installers terminating RG-58 C/U coaxial cable, this Telegärtner BNC plug offers a reliable crimp connection with a 50 Ohm impedance. The nickel-plated brass body and gold-plated center contact ensure low signal loss and long-term durability in professional environments.

Key specifications

• Connector type: BNC plug (male)
• Impedance: 50 Ohm
• Termination style: Crimp/crimp
• Compatible cable: RG-58 C/U, Belden YR23092
• Body material: Brass, nickel-plated
• Contact material: Brass, gold-plated
• Frequency range: DC to 4 GHz
• Operating temperature: -40°C to +85°C

Why choose it

This connector meets IEC 61169-8 and MIL-STD-348 standards, ensuring compatibility with a wide range of equipment. The PTFE insulator provides excellent dielectric properties, and the crimp termination creates a secure, gas-tight connection that resists vibration and pull-out.

Ideal use cases

• RF test and measurement setups
• Broadcast and video transmission systems
• Industrial and laboratory coaxial networks
• Replacement for worn BNC connectors on RG-58 cables

Good to know

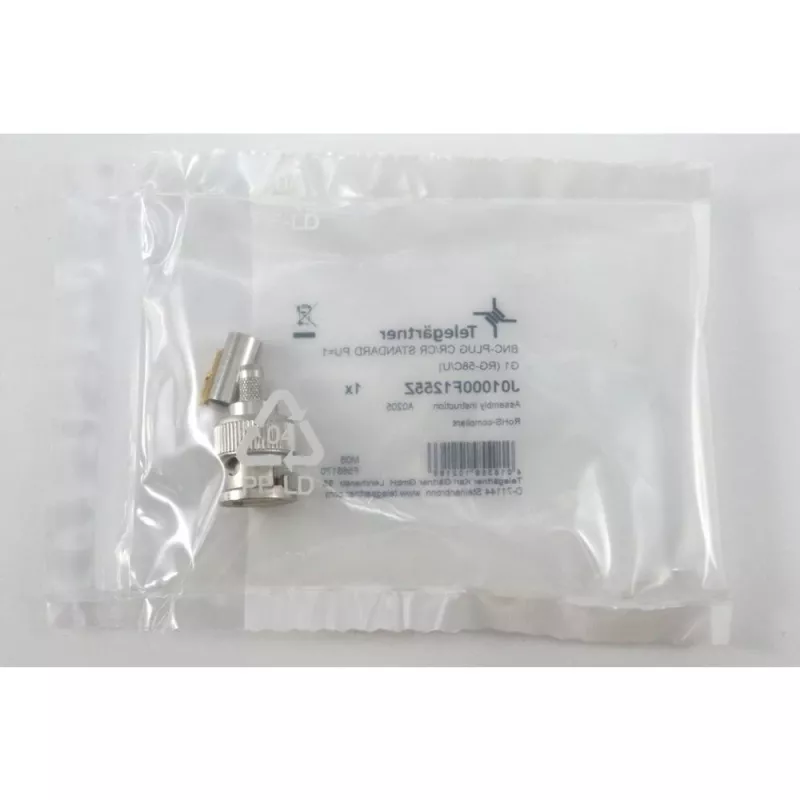

Supplied as a single piece, this connector is suitable for field or bench termination. The crimp/crimp design requires a standard hex crimp tool for the ferrule and center pin. The connector maintains a VSWR of ≤1.25 up to 3 GHz, ensuring minimal signal reflection.
