Ficha de cabo DeLOCK 66712 D-Sub HD 50 pinos preto prateado

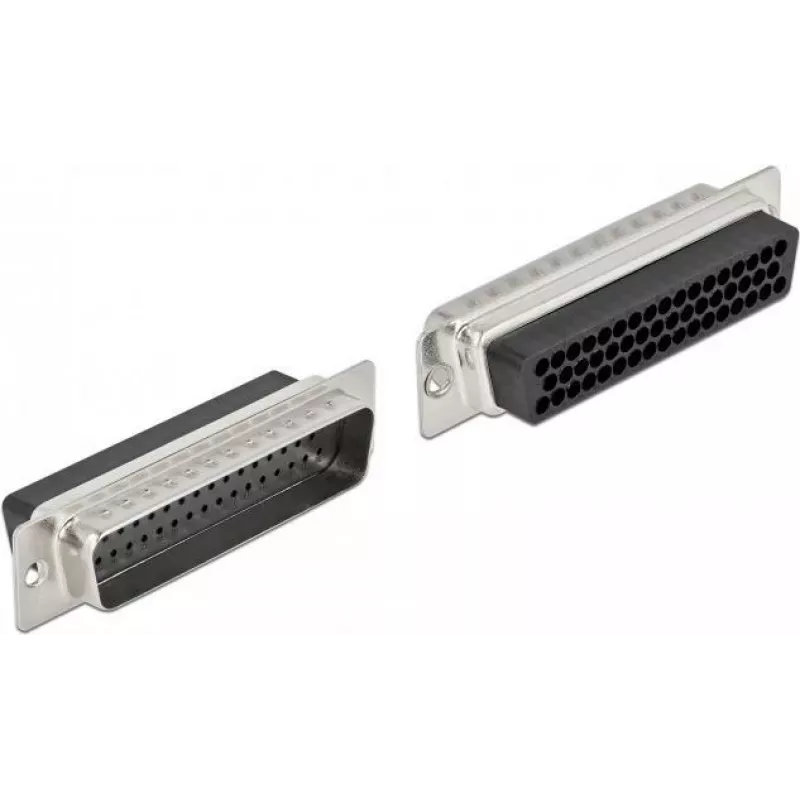

The DeLOCK 66712 D-Sub HD 50 Pin wire connector is a female high-density D-Sub interface designed for compact and reliable signal connections. Finished in black and silver, this connector provides the standard 50-pin layout in a reduced-depth housing suitable for applications where space is limited. Its physical dimensions—17.5 mm width, 67 mm depth and 12.5 mm height—make it easy to integrate into cable assemblies or panel adapters. The unit is supplied in a polybag and manufactured to deliver consistent mechanical contact for multi-pin wiring tasks.

Advantages

This D-Sub HD connector offers a high contact density in a compact form factor, enabling effective use in crowded installations. The female contact configuration simplifies mating with compatible male counterparts and helps protect pins from damage. The black and silver finish gives a clear visual distinction and supports neat cable routing. Small overall dimensions reduce enclosure space requirements while providing a robust mechanical connection for signal distribution.

Suitable for

• Connecting multi-pin signal cables in industrial and commercial equipment
• Replacing or assembling D-Sub HD interfaces in cable harnesses
• Use in space-constrained electronic enclosures and rack equipment
• Prototyping and repair work requiring a 50-pin female D-Sub interface

Key specifications

• Connector type: D-Sub High Density (HD), 50 pins
• Gender: female
• Colour: black housing with silver contacts/accents
• Dimensions: 17.5 mm (width) × 67 mm (depth) × 12.5 mm (height)
• Packaging: polybag
• Origin: manufactured in China

How to use

Prepare cable conductors according to the wiring diagram or pinout for the target application. Insert and secure each conductor into the appropriate contact position following standard crimping or soldering procedures compatible with D-Sub HD contacts. Align the female connector with the mating male connector and engage the mechanical retention method provided by the mating hardware. Verify all connections electrically before placing the assembly into service to ensure correct pin mapping and continuity.
