Ficha de cabo DeLOCK 89914

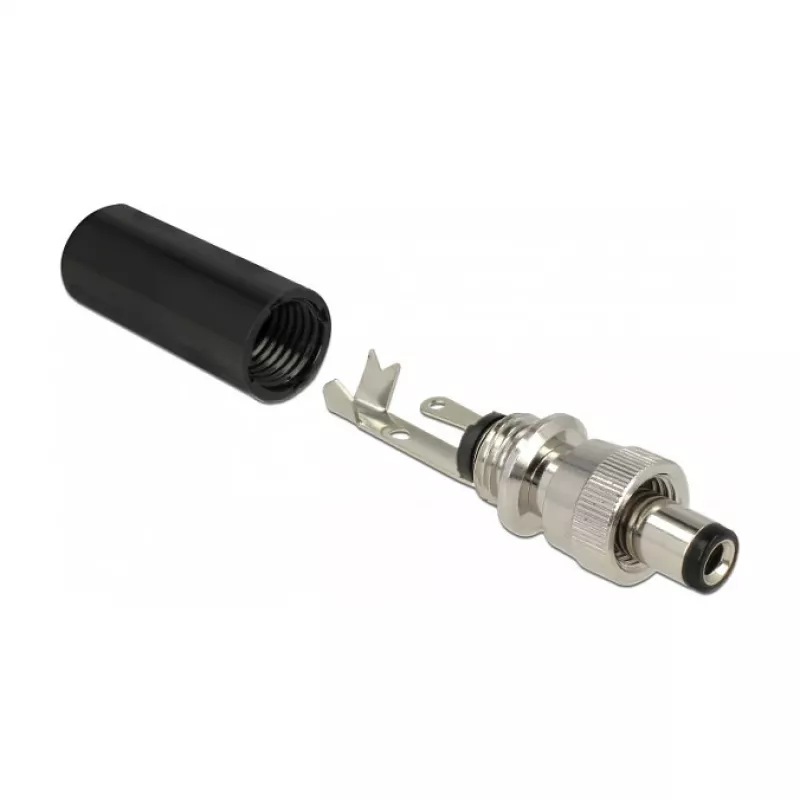

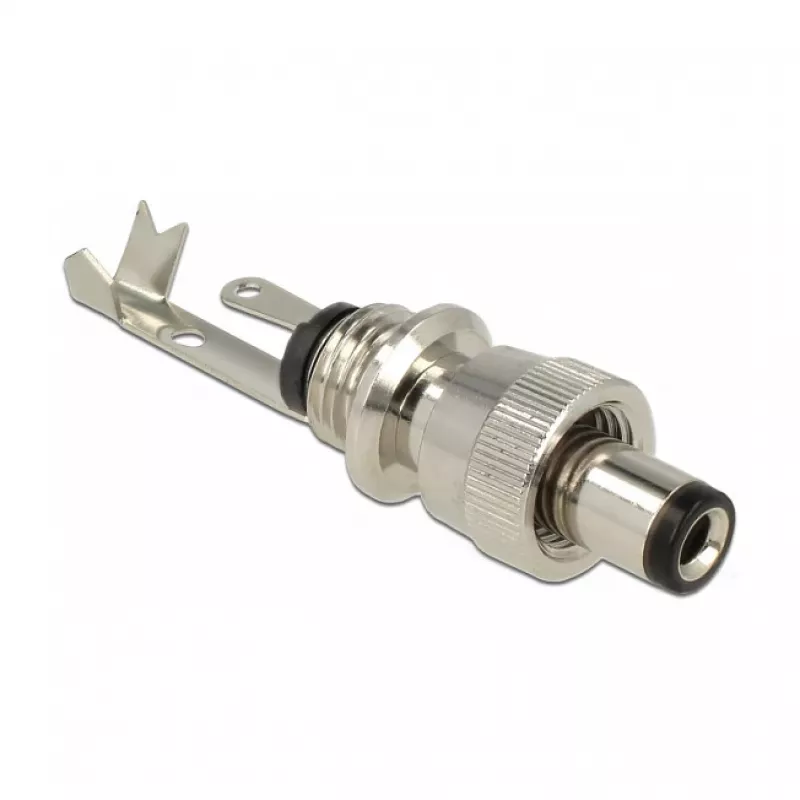

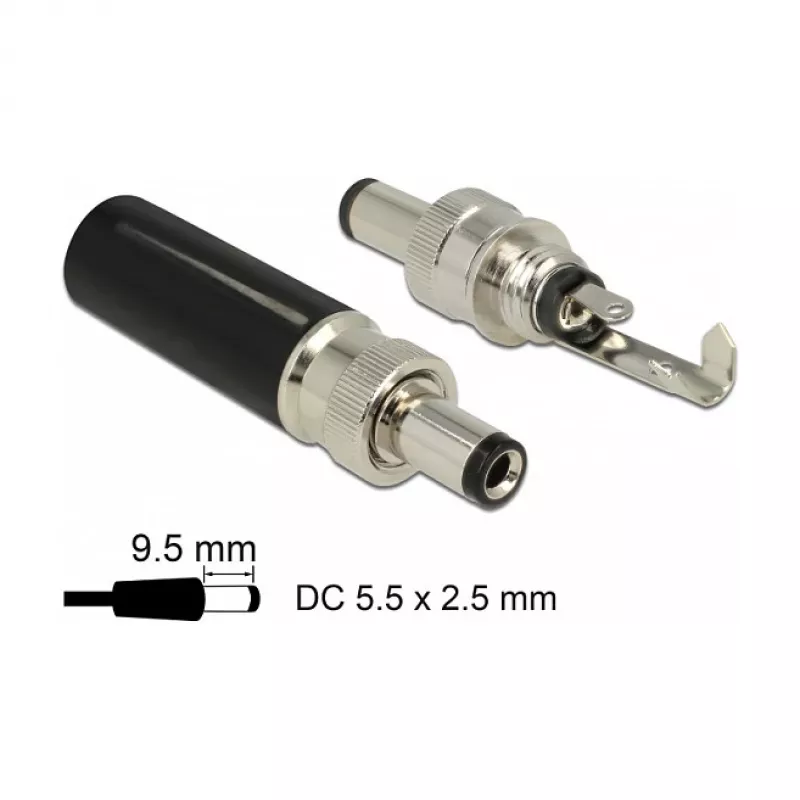

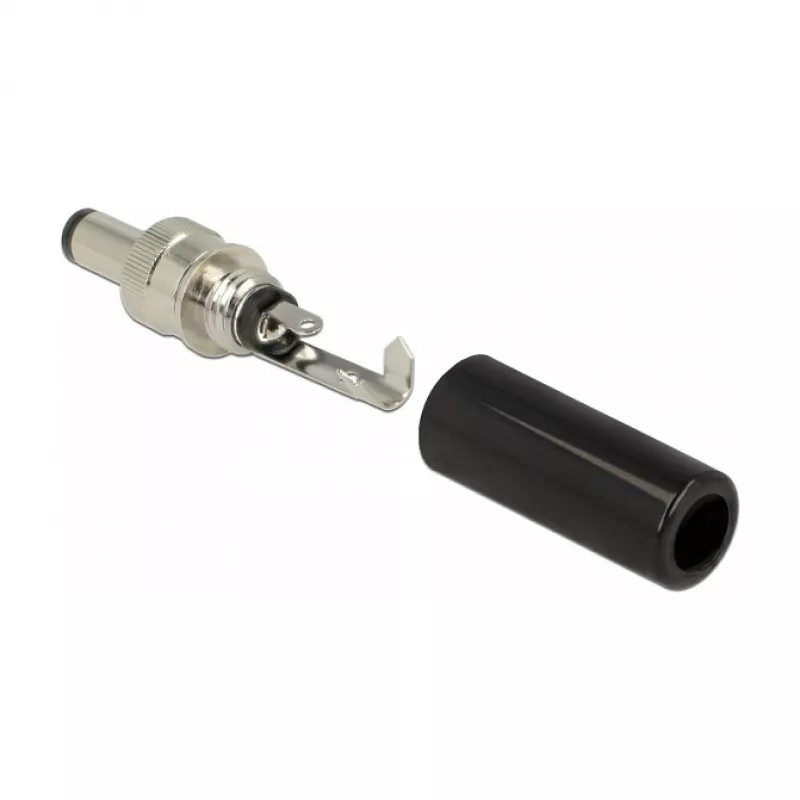

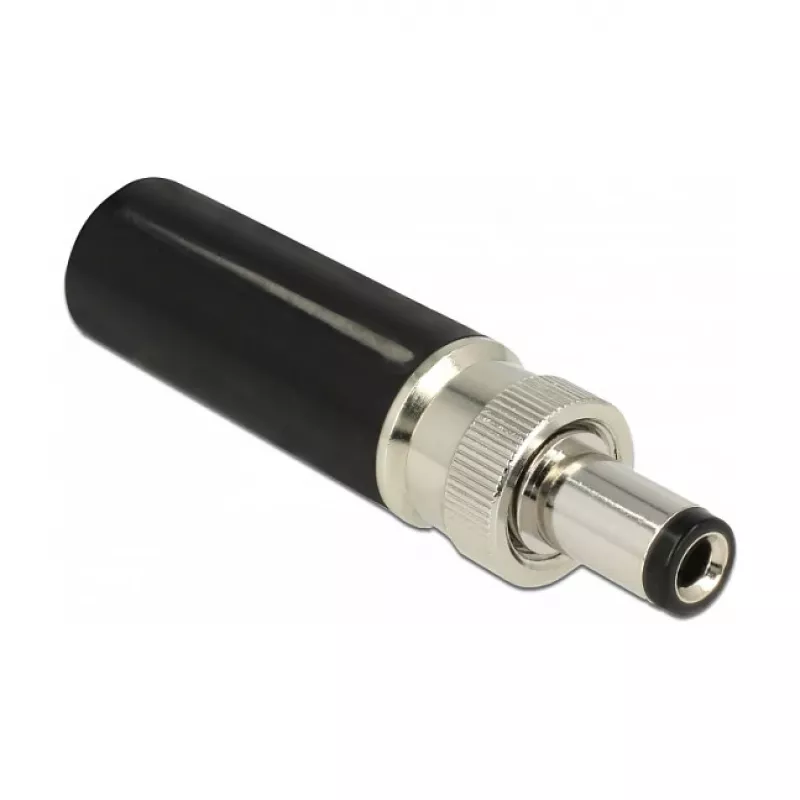

This DC connector by Delock is designed for soldering to a cable and provides compatibility with devices that use a 5.5 x 2.5 mm DC jack. The connector has a compact, cylindrical design with a black and nickel finish and nickel-plated contacts for improved durability and reliable connectivity. Each pack contains one connector suitable for a variety of electronic and power applications.

Advantages

The screw-type connector on the plug ensures a secure mechanical connection with compatible 5.5 x 2.5 mm DC jacks. Nickel-plated contacts resist corrosion and promote long-term electrical reliability. Its compact dimensions make it suitable where space is limited and the two-colour finish provides clear visual identification of the connector.

Suitable for

Key specifications

How to use

Strip the cable to expose the conductor, tin the ends with solder, and pass the wires through the connector housing. Solder the conductor to the appropriate contact on the plug and assemble the connector parts following the screw-type fastening. Verify polarity and tighten the screw connection so the plug seats firmly in the mating 5.5 x 2.5 mm DC jack. Test the assembled cable for electrical continuity and correct polarity before applying power to the connected device.

Recommendations

Use appropriate soldering tools and safety measures. Ensure correct polarity when connecting to devices and avoid excessive mechanical stress on the cable near the solder joints. For best results, use heat-shrink tubing or strain relief at the soldered connection.
