Ficha de cabo LogiLink MP0004 CAT5e

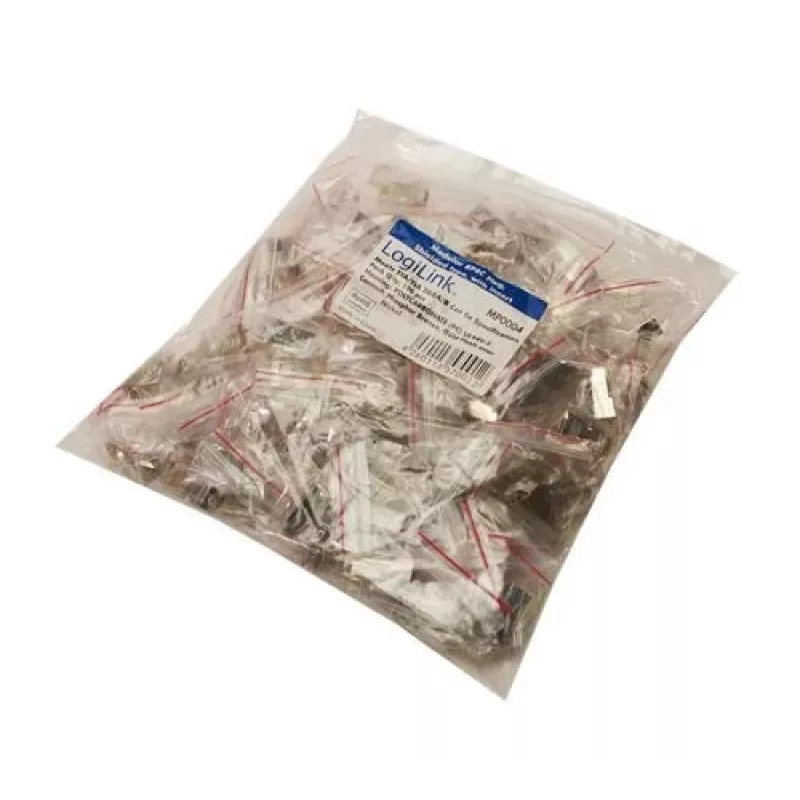

The LogiLink MP0004 CAT5e wire connector is a modular RJ45 plug designed for assembling Cat5/Cat5e round network cables according to EIA/TIA 568A and 568B wiring standards. Constructed from durable plastic with plated contacts, it provides stable electrical connection for networking and telecommunications installations. Each pack contains 100 connectors suitable for bulk cabling tasks.

Advantages

Gold-plated/contact-plated pins improve conductivity and reduce signal loss. The plastic housing offers mechanical stability during crimping and long-term use. The design supports both 568A and 568B wiring schemes, enabling flexible installation. Supplied in bulk quantity for efficient project work.

Suitable for

• Assembling Cat5/Cat5e round Ethernet cables
• Networking and telecommunications installations
• Bulk cabling projects and repairs

Key specifications

• Model: LogiLink MP0004
• Category: Cat5e / RJ45 plug
• Standards: EIA/TIA 568A and 568B
• Contacts: plated (gold-plated or plated for improved conductivity)
• Housing: durable plastic
• Pack quantity: 100 connectors
• Brand: LOGILINK
• MPN: MP0004
• EAN: 4052792003840

How to use

Strip the outer jacket of the round Cat5/Cat5e cable to expose the twisted pairs, untwist and arrange the conductors according to the chosen EIA/TIA 568A or 568B pinout. Insert the wires fully into the connector so each conductor reaches its contact. Use an appropriate crimping tool to press the connector contacts onto the wires and secure the plug to the cable. Verify continuity and wiring order with a cable tester before deployment.

Recommendations

For reliable results use a compatible RJ45 crimping tool and a cable tester. Avoid excessive force when crimping to prevent housing damage and ensure the cable jacket is seated properly to maintain strain relief.
