Ficha de crimpagem D-Sub 25 pinos para 2 x conector fêmea RJ45 DeLOCK 66833

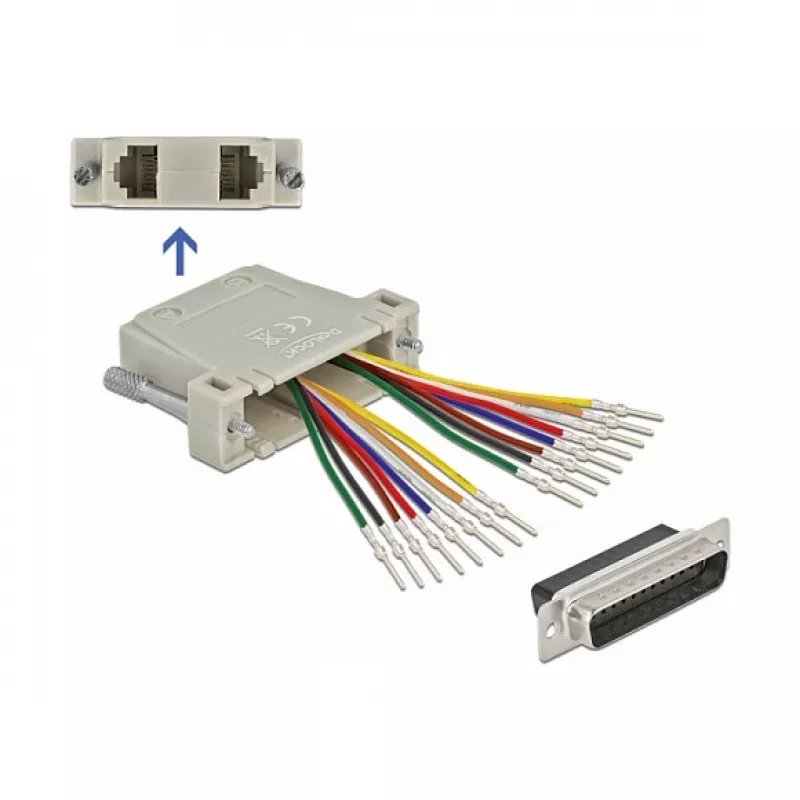

The DeLOCK D-Sub 25 pin crimp male to 2 x RJ45 female adapter enables connection between a 25-pin D-Sub port and two RJ45 network cables. The adapter is supplied with an assembly kit and has a beige housing. It allows using two optional network cables to extend or split a serial-like interface while keeping a compact, crimp-style connection.

Advantages

This adapter permits individual pin assignment by inserting the cable end into the desired hole of the connector and locking it into the housing. The crimp-style D-Sub 25 male interface and the two RJ45 female sockets provide a flexible solution for custom wiring. The included assembly kit simplifies installation and the beige housing offers a neutral, durable finish.

Suitable for

• Connecting devices with a D-Sub 25 interface to RJ45-wired setups
• Custom serial or control wiring using two network cables
• Laboratory, manufacturing, or field installations requiring flexible pin assignment

Key specifications

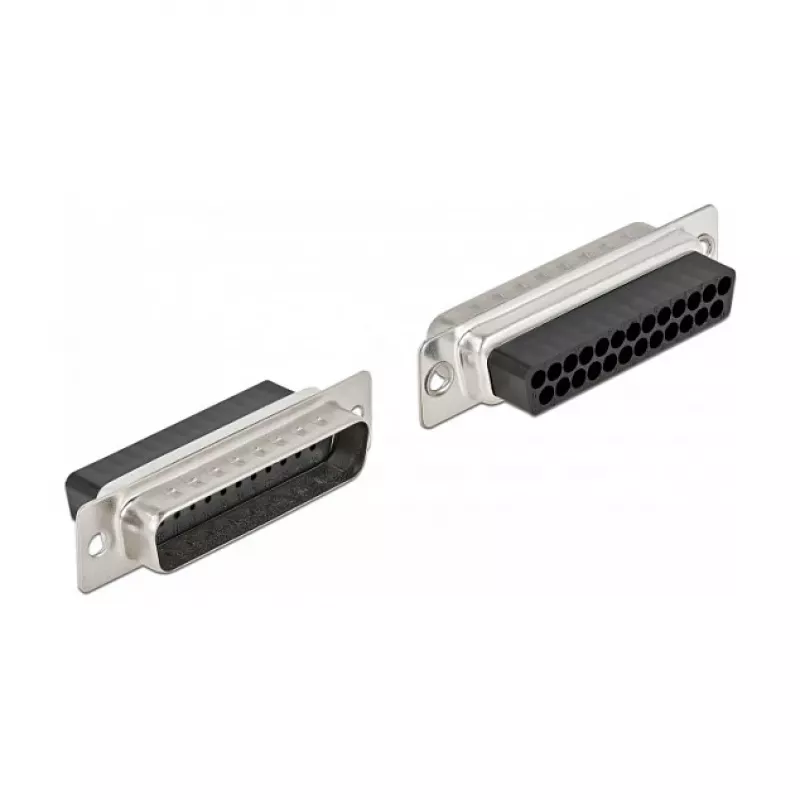

• Connector 1: D-Sub 25 pin (crimp male)
• Connector 2: 2 x RJ45 female
• Product colour: Beige
• Brand: DELOCK
• MPN: 66833
• EAN: 4043619668335

How to use

Prepare two RJ45 network cables as required, crimp or strip the cable ends according to the assembly kit instructions, then insert each conductor into the chosen hole of the D-Sub connector. Ensure each cable end locks into the connector housing. After assembly, mount the D-Sub 25 male into the mating socket and connect devices as needed.

Recommendations

For reliable operation, verify pin assignments and continuity before connecting live equipment. Use appropriate cable types for the application and follow the supplied assembly instructions to ensure secure crimps and correct locking of conductors.
