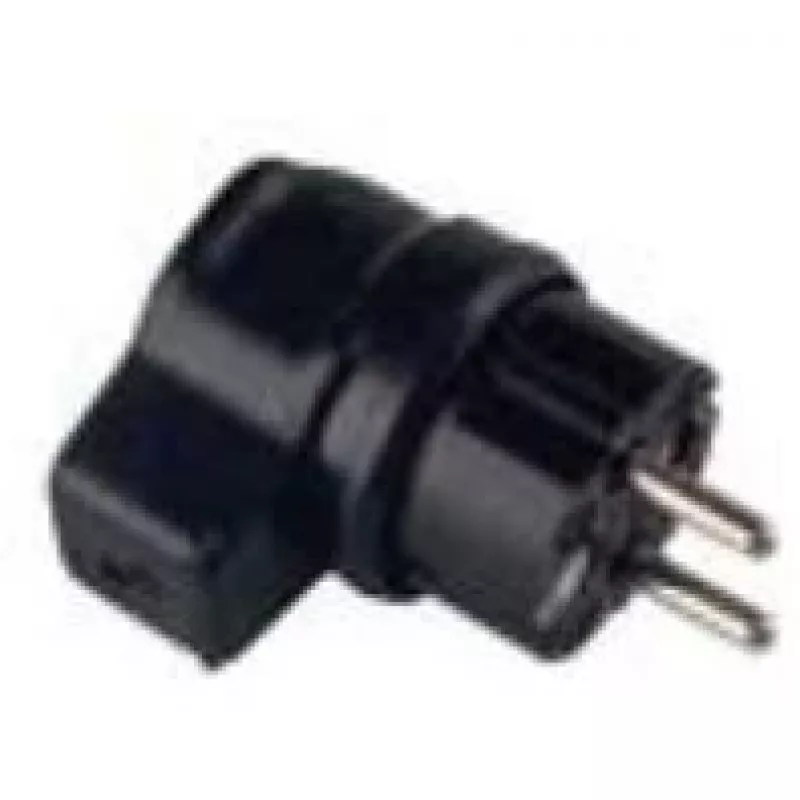

Ficha de rede elétrica Bachmann 919.178 preto

The Bachmann 919.178 electrical power plug is a robust industrial plug designed for safe connection according to Belgian and French earthing contact standards. It supports cables up to H07RN-F 3G 2.50 mm² and is built with a solid rubber insert, metal strain relief and surface clamps for secure, durable use. The plug is IP44 rated and operates in a temperature range from -40 °C to 70 °C.

Advantages

The plug provides a standardised clip-in function for quick and reliable installation, combined with a dual earthing contact system compatible with Belgian and French standards. Its solid rubber housing and metal strain relief improve mechanical resistance and longevity, while the IP44 rating offers protection against splashing water and ingress of solid objects.

Suitable for

• Industrial and outdoor power connections requiring IP44 protection
• Installation with H07RN-F 3G 2.50 mm² cable
• Applications following Belgian and French earthing contact requirements
• Situations needing a robust, impact-resistant plug

Key specifications

• Manufacturer: Bachmann
• Model / MPN: 919.178
• EAN: 4016514016945
• Current rating: 16 A
• Voltage: 250 V AC
• Cable compatibility: up to H07RN-F 3G 2.50 mm²
• Ingress protection: IP44
• Temperature range: -40 °C to 70 °C
• Housing: solid rubber insert, black

How to use

Select an appropriate H07RN-F 3G 2.50 mm² cable, strip the conductors according to local wiring practice, and insert the cable into the plug body. Use the clip-in function to secure the connector parts and fasten the screw terminal block to make the electrical connections. Ensure the metal strain relief and surface clamps are properly tightened to prevent cable pull-out. Verify correct earthing contact connection before applying power.

Recommendations

Use the Bachmann 919.178 plug only within its rated current and voltage (16 A, 250 V AC), ensure compatibility with Belgian/French earthing contact standards, and perform periodic inspections of the housing and strain relief for wear or damage, especially in outdoor or industrial environments.
