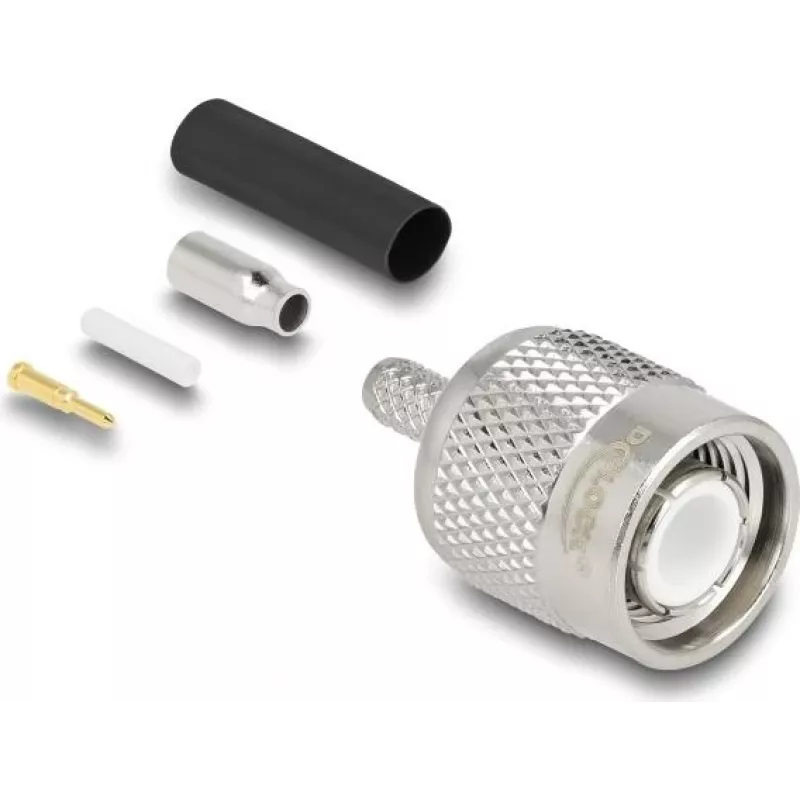

Ficha macho coaxial TNC de crimpar DELOCK para RG-174 / RG-316 com tubo termorretrátil, 1 unid.

DELOCK TNC crimp plug for RG-174 and RG-316 is a compact coaxial connector supplied as a single unit with a matching heat-shrink sleeve. It provides a reliable TNC termination by crimping the connector to the cable and applying the included sleeve to protect and insulate the joint. The connector is designed for small-diameter coaxial cables used in RF equipment, antenna leads and signal cabling where space and mechanical stability are important.

Advantages

This TNC crimp plug offers a secure mechanical and electrical connection through a crimped centre pin and outer sleeve. The included heat-shrink sleeve improves strain relief and environmental protection at the assembly point without requiring additional parts. Its compact design is suitable for installations with limited space and for repairing or extending existing coaxial runs while preserving RF performance for small-signal applications.

Key specifications

How to use

Prepare the RG-174 or RG-316 cable by stripping the outer jacket, braid and dielectric to the dimensions recommended for the connector. Insert the centre conductor into the crimp pin and crimp according to the tool and die specifications appropriate for the contact size. Slide the connector body over the cable and crimp the outer sleeve to secure the braid and provide the mechanical connection. Position the supplied heat-shrink sleeve over the joint and apply heat until it contracts and adheres, ensuring a compact insulated finish.

Recommendations

Use a correctly sized crimp tool and dies for the specific centre pin and outer sleeve to ensure proper electrical contact and mechanical stability. Verify strip lengths before crimping and test the assembled connection with appropriate RF equipment or continuity checks. Avoid excessive heat when shrinking the sleeve to prevent damage to the cable dielectric.
