Ficha modular universal de passagem Gembird Cablexpert UTP 8P8C RJ45, para condutores até 24 AWG, 10 unid. por saco (LC-PTU-01/10)

Network installations often suffer from unreliable terminations when using low-quality RJ45 plugs. The Gembird LC-PTU-01/10 modular plug solves this by providing a dependable, gold-plated connection for Cat5e UTP cabling, ensuring consistent performance in Ethernet and LAN environments. This pack includes 100 transparent plugs, ideal for bulk cabling projects.

Who is it for

IT professionals, network installers, and DIY enthusiasts who need to terminate solid or stranded Cat5e UTP cables with confidence. Whether you're wiring an office, setting up a home network, or repairing existing connections, these plugs deliver a secure and durable link.

Main features

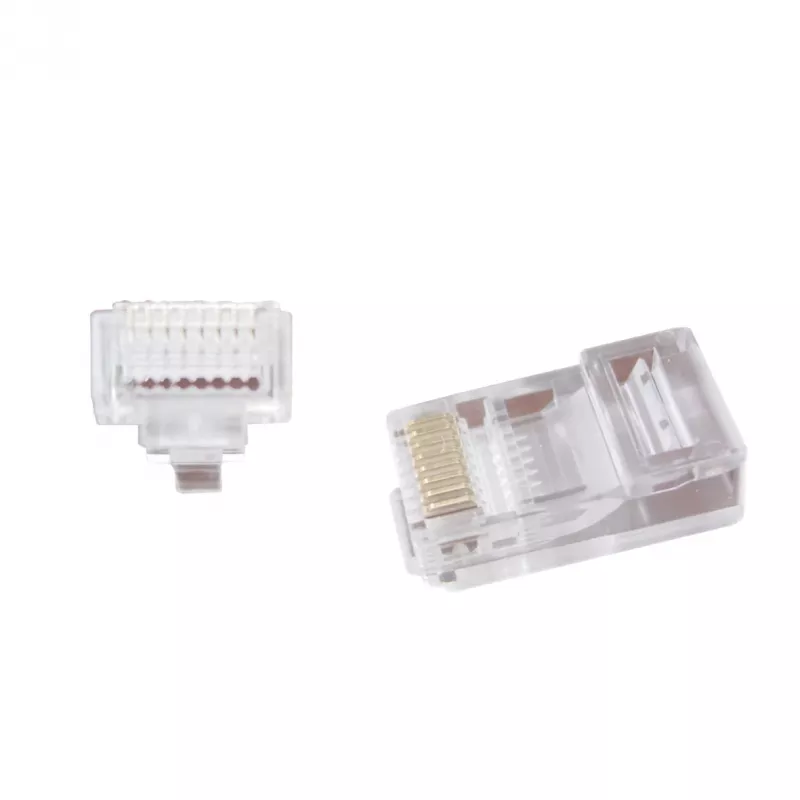

• RJ-45 male connector with 8P8C configuration
• Compatible with Cat5e UTP cable (solid and stranded)
• Gold-plated contacts (3µm) for superior conductivity and corrosion resistance
• Transparent polycarbonate housing for easy wire alignment
• Crimp termination for quick and reliable installation
• Supports up to 24 AWG conductor gauge
• RoHS compliant

Specifications

• Connector type: RJ-45 male
• Category rating: Cat5e
• Positions/contacts: 8P8C
• Contact plating: Gold (3µm)
• Contact material: Phosphor bronze
• Housing material: Polycarbonate (PC)
• Color: Transparent
• Termination method: Crimp
• Conductor compatibility: Solid and stranded
• Max conductor gauge: 24 AWG
• Insulation resistance: >500 MΩ
• Dielectric withstanding voltage: 1000V AC RMS
• Current rating: 1.5 A @ 20°C
• Operating temperature: -40°C to +80°C
• Insertion cycles: 750
• Pack quantity: 100 pieces
• Standards compliance: RoHS

Tips

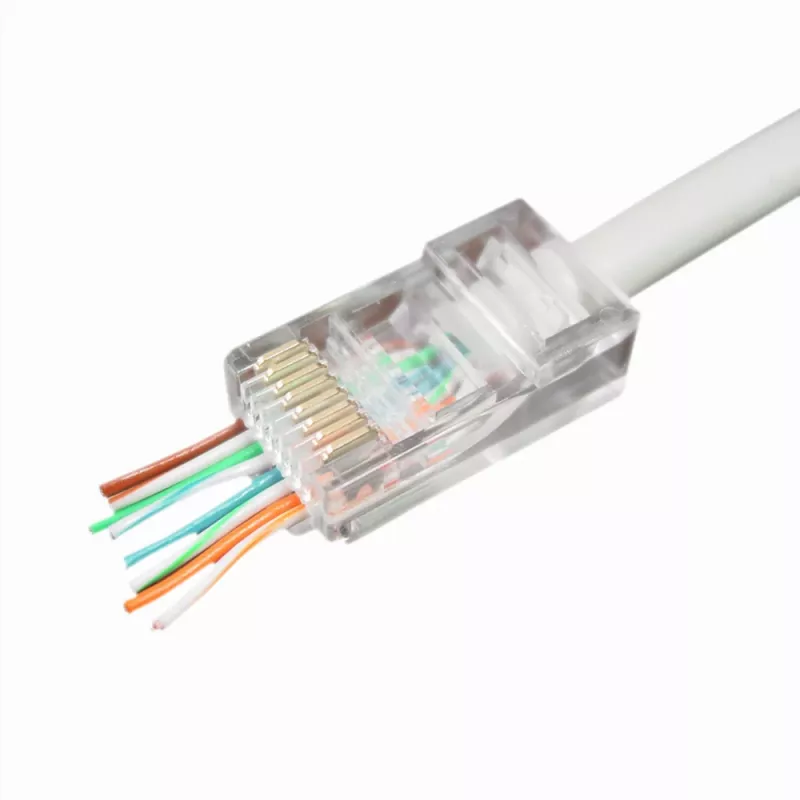

For best results, use a quality crimping tool designed for 8P8C modular plugs. Ensure the cable jacket is properly stripped and the wires are fully inserted to the end of the plug before crimping. The transparent housing allows visual inspection of wire order before final termination.
