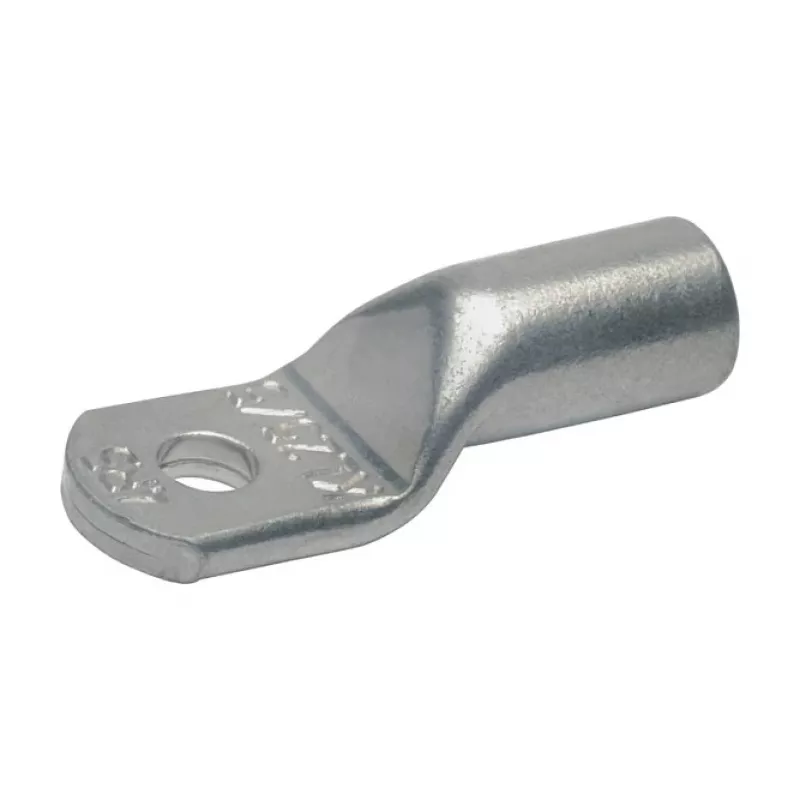

Gustav Klauke 8R10 Terminal de cobre para crimpagem – 95mm², parafuso M10

Engineered from high-purity electrolytic copper, the Gustav Klauke 8R10 crimping cable lug delivers a superior electrical connection for 95 mm² conductors with an M10 bolt. Rated to DIN 46235 and tested for extreme durability, this tubular lug is built for professionals who demand uncompromised performance in power distribution and industrial wiring.

Overview

The 8R10 is a copper crimp lug from Klauke's extensive range. Its flared entry and seamless construction simplifies conductor insertion while ensuring a tight, secure crimp every time. The lug is suitable for stranded, fine-stranded, and solid copper conductors, making it a versatile choice for a wide array of electrical installations.

What stands out

• Electrolytic copper (E-Cu) for maximum conductivity and corrosion resistance.
• DIN 46235 compliant – ensures consistent quality and dimensional accuracy.
• Flared barrel entry allows quick and easy wire insertion.
• Compatible with hex crimping tools for a reliable, gas-tight connection.
• Designed for 95 mm² conductor cross-section with a 10.5 mm bolt hole for M10 hardware.

Technical details

• Material: Electrolytic copper (E-Cu), bare surface
• Conductor cross-section: 95 mm²
• Bolt hole diameter: 10.5 mm (M10)
• Overall length: 68 mm
• Palm width: 28 mm
• Material thickness (palm): 3.0 mm
• Barrel inner diameter: 13.5 mm
• Operating temperature range: -55°C to +150°C
• Standard: DIN 46235
• Crimp type: Hexagonal crimp

Our verdict

For reliable, low-resistance terminations in heavy-duty applications, the Klauke 8R10 is the go-to choice. Its precision manufacturing and premium materials deliver lasting performance that professionals trust.
