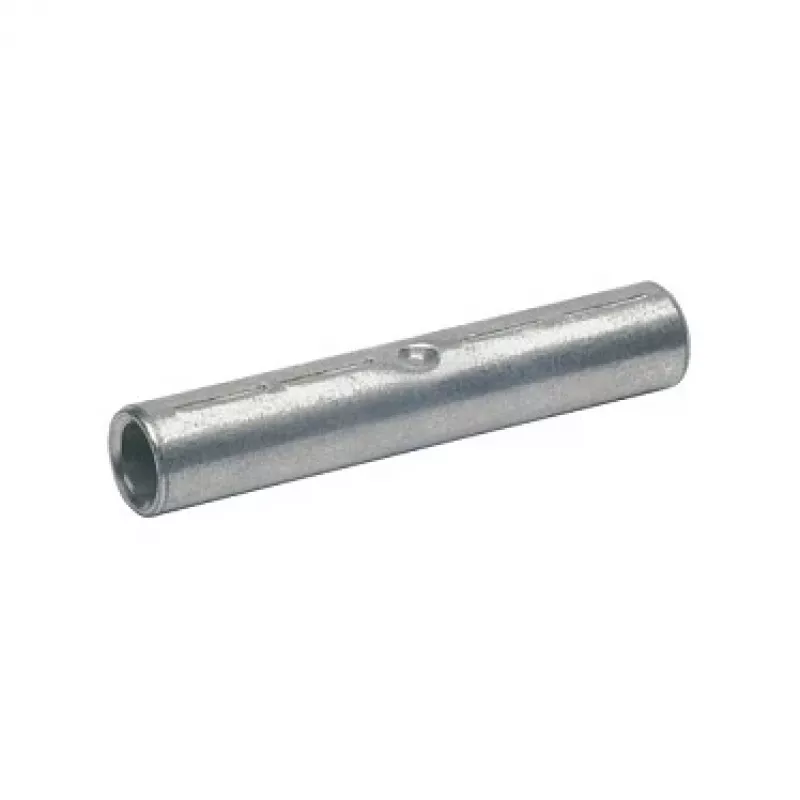

Gustav Klauke KLAU 126R conector de crimpagem de topo 50 mm², estanhado galvanicamente, DIN 46267

When high-current copper connections must hold up in demanding environments, the Gustav Klauke KLAU 126R crimp butt connector delivers the reliability you expect from a brand trusted by professionals. This 50 mm² press connector is galvanically tinned for superior corrosion resistance, ensuring a stable, long-lasting joint even in humid or industrial settings. Its compact, uninsulated design is engineered for hexagonal crimping, providing a secure, low-resistance connection for two copper conductors.

Highlights

• Conductor cross-section: 50 mm² – ideal for medium to heavy-duty power applications
• Galvanically tinned surface – excellent corrosion protection and low contact resistance
• Manufactured from high-purity electrolytic copper (E-Cu, >99.9% Cu) for optimal conductivity
• Complies with DIN 46267 – ensures dimensional and performance consistency
• Hexagonal crimp type – creates a strong, vibration-resistant mechanical joint
• Wide operating temperature range: -50°C to +150°C
• Rated for up to 1000 V – suitable for many industrial and commercial installations

In daily use

Whether you are terminating cables in a control cabinet, connecting busbars, or repairing heavy machinery wiring, the KLAU 126R simplifies the task. Its precise inner diameter (approx. 10.2 mm) and outer dimensions (approx. 13.5 mm) match standard crimping dies, allowing for consistent, repeatable results. The tinned surface also simplifies soldering if required, though crimping alone provides a durable, maintenance-free joint. Because it is uninsulated, always use appropriate heat-shrink tubing or insulation where needed.

Full specifications

• Brand: Gustav Klauke GmbH
• Model: 126R
• MPN: 126R
• EAN: 4012078058315
• Category: Crimp Butt Connector (Press-Stoßverbinder)
• Connector Type: Crimp Butt Connector
• Conductor Cross-Section: 50 mm²
• Conductor Material: Electrolytic Copper (E-Cu)
• Surface Treatment: Galvanically Tinned
• Standard Compliance: DIN 46267
• Application: Connecting two copper conductors
• Crimp Type: Hexagonal Crimp
• Material Purity: >99.9% Copper
• Operating Temperature Range: -50°C to +150°C
• Voltage Rating (Max): 1000 V
• Inner Diameter: Approx. 10.2 mm
• Outer Diameter: Approx. 13.5 mm
• Length: Approx. 65 mm
• Corrosion Protection: Yes (due to tinning)
• Insulation: Uninsulated
• RoHS Compliant: Yes
• Halogen-free: Yes
• Series: KLAU 126R

Final note

With its robust construction, precise dimensions, and corrosion-resistant finish, the Gustav Klauke KLAU 126R is a dependable choice for professionals who demand quality connections. Backed by a trusted German manufacturer, this connector meets the rigorous requirements of DIN 46267, making it a smart investment for any electrical project.
