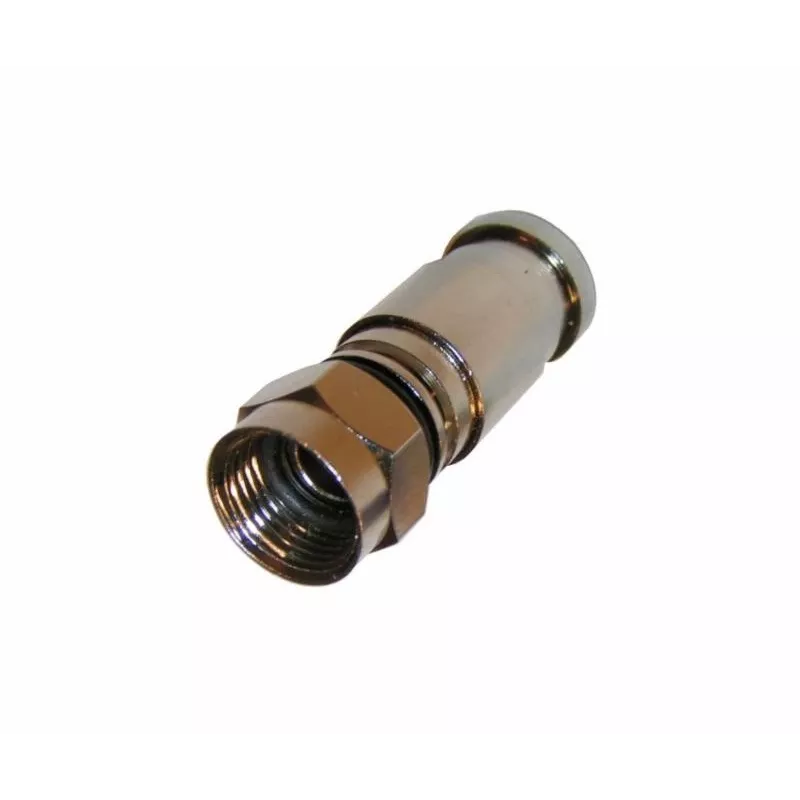

CONOTECH NS-512 Conector F (compressão) para cabo coaxial RG6 de 6,8 mm

The NS-512 stands apart from generic F connectors by pairing a true compression fit with a weatherproof seal, so signal loss and corrosion are engineered out rather than left to chance. Built for 6.8 mm RG6 coaxial cable, this nickel-plated brass connector delivers consistent 75 Ohm performance across satellite, cable TV, terrestrial DVB-T/T2, and cable modem installations.

Highlights

• Compression connection method for a secure, gas-tight bond on RG6 cable
• Nickel-plated brass body with high weather resistance and waterproof seal
• Broad frequency range 0–3000 MHz with return loss >20 dB and shielding effectiveness >90 dB
• Solid core inner conductor compatibility and 500 mating cycles durability
• Requires standard F-type compression tool (sold separately)

In daily use

Installers will appreciate the straightforward preparation: strip the RG6 cable to the specified dimensions, slide the connector over the dielectric, and compress. The result is a permanent, low-loss termination that holds up to temperature swings from -40°C to +60°C. Because the seal is integral to the connector, outdoor antenna and satellite dish connections remain protected from moisture ingress without extra tape or boots.

Full specifications

• Connector type: F-type
• Connection method: Compression
• Cable diameter compatibility: 6.8 mm
• Cable type compatibility: RG6
• Impedance: 75 Ohm
• Frequency range: 0–3000 MHz
• Material: Nickel-plated brass
• Weather resistance: High (waterproof seal)
• Inner conductor compatibility: Solid core
• Return loss: >20 dB
• Shielding effectiveness: >90 dB
• Operating temperature: -40°C to +60°C
• Durability: 500 mating cycles
• Colour: Silver
• Quantity per pack: 1 piece
• Installation tool required: F-type compression tool

Final note

For reliable, long-term coaxial terminations in both indoor and outdoor environments, the CONOTECH NS-512 delivers professional-grade performance in a single, corrosion-resistant package.
