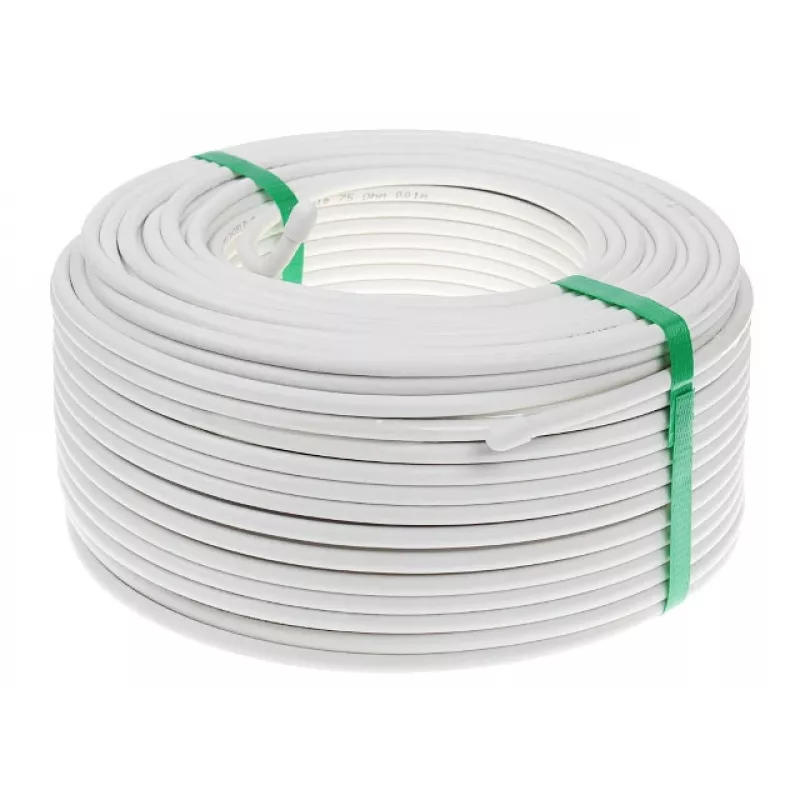

CONOTECH NS100 Cabo coaxial Trishield 1m branco 75 Ohm triplamente blindado

For installers wiring a satellite dish to a set-top box in a residential flat, the CONOTECH NS100 Trishield coaxial cable delivers reliable signal integrity over a 1-meter run. Its triple-layer shielding blocks electromagnetic interference from nearby power lines and mobile devices, ensuring crisp TV reception.

Key specifications

• Length: 1 m
• Impedance: 75 Ohm
• Cable type: Coaxial
• Shielding: Triple shield (bonded foil + 60% aluminum braid + unbonded foil)
• Inner conductor: 1.0 mm solid copper
• Dielectric: 4.8 mm foamed polyethylene
• Jacket: 6.8 mm white PVC
• Frequency range: 5–2400 MHz
• Screening effectiveness: >100 dB
• Attenuation: 7.0 dB/100m @200 MHz, 14.5 dB/100m @800 MHz, 23.0 dB/100m @2150 MHz

Why choose it

Trishield construction provides superior protection against ingress and egress of RF noise, making it ideal for dense urban environments. The solid copper core ensures low DC resistance and excellent long-term performance, while the foamed polyethylene dielectric maintains stable impedance across the entire frequency band.

Ideal use cases

• Connecting satellite LNBs to receivers (DVB-S/S2)
• Terrestrial antenna feeds for DVB-T/T2
• Cable TV and broadband distribution (DVB-C)
• Short patch leads in headend racks and wall outlets

Good to know

This cable is supplied without connectors, allowing you to fit F-type, IEC, or compression connectors as required. The white PVC jacket is UV-stable for indoor and protected outdoor use. For best results, maintain a minimum bend radius of 35 mm during installation.
