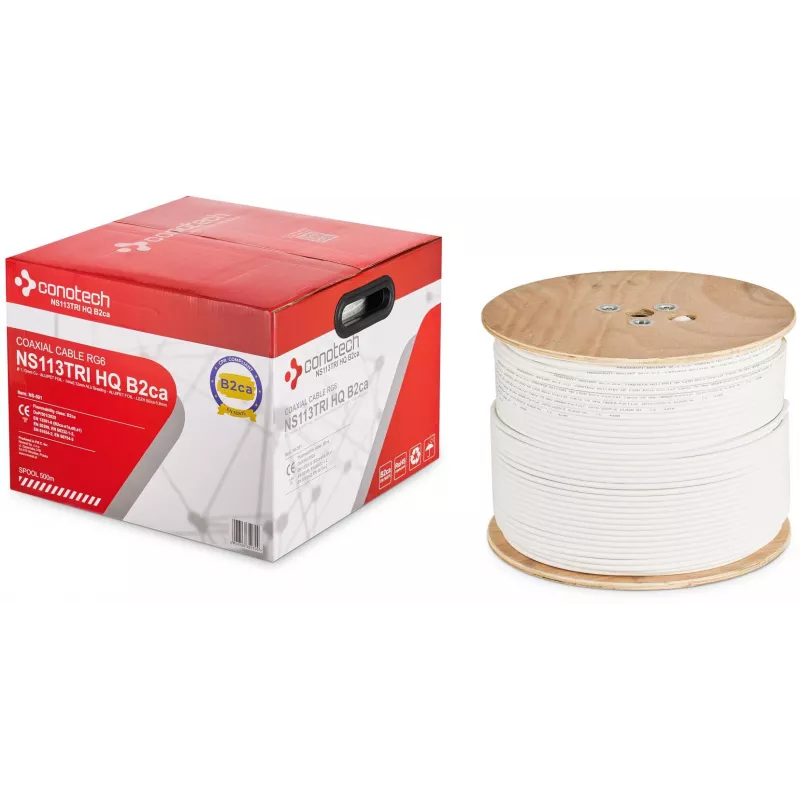

CONOTECH NS-113TRI HQ RG-6 Cabo Coaxial LSOH B2ca 500m Branco

The CONOTECH NS-113TRI HQ RG-6 coaxial cable is a high-performance, triple-shielded cable designed for professional satellite, terrestrial TV, cable TV, and internet applications. With a 75 Ohm impedance and solid copper center conductor, it ensures excellent signal transmission and minimal loss. The LSOH (Low Smoke Zero Halogen) jacket provides enhanced safety in case of fire, making it suitable for installations in public buildings and residential complexes. Certified to Euroclass B2ca-s1a,d1,a1, this cable meets stringent European fire safety standards.

Advantages

Triple shielding (APAP foil + tinned copper braid + APAP foil) delivers screening effectiveness >100 dB (Class A++), protecting against electromagnetic interference. The foamed polyethylene dielectric ensures low capacitance (52 pF/m) and high velocity of propagation (85%). With a 500-meter length, it is ideal for long runs without signal degradation.

Suitable for

• Satellite TV systems (e.g., DVB-S/S2)
• Terrestrial TV (DVB-T/T2)
• Cable TV (CATV) networks
• Broadband internet (DOCSIS)
• Security camera systems (CCTV)

Key specifications

• Cable type: RG-6 coaxial
• Impedance: 75 Ohm
• Inner conductor: Solid copper, 1.00 mm diameter

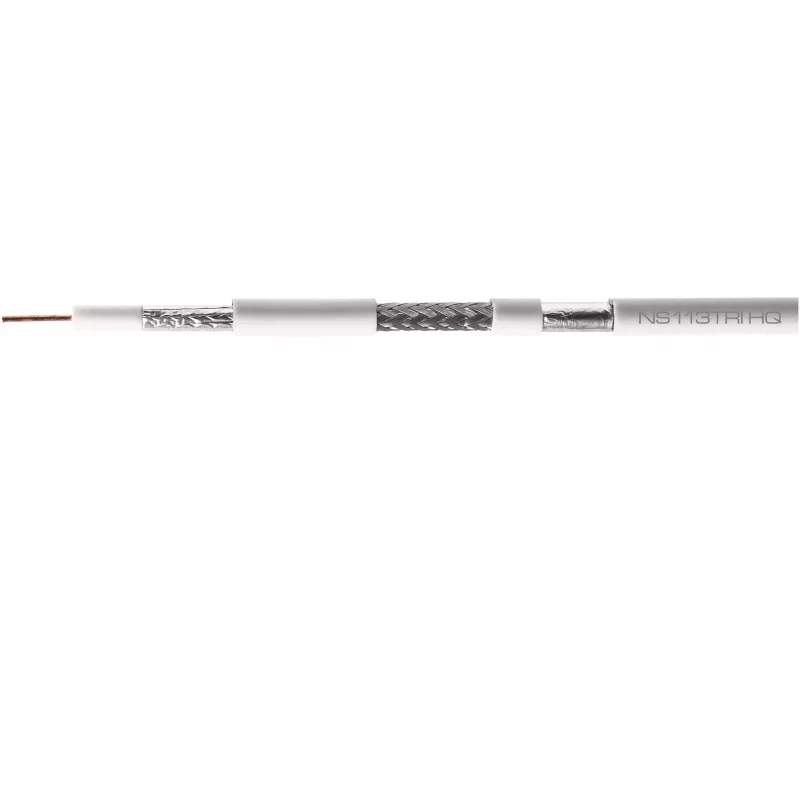

• Shielding: Triple (APAP foil + tinned copper braid + APAP foil)
• Jacket material: LSOH (Low Smoke Zero Halogen)
• CPR rating: Euroclass B2ca-s1a,d1,a1

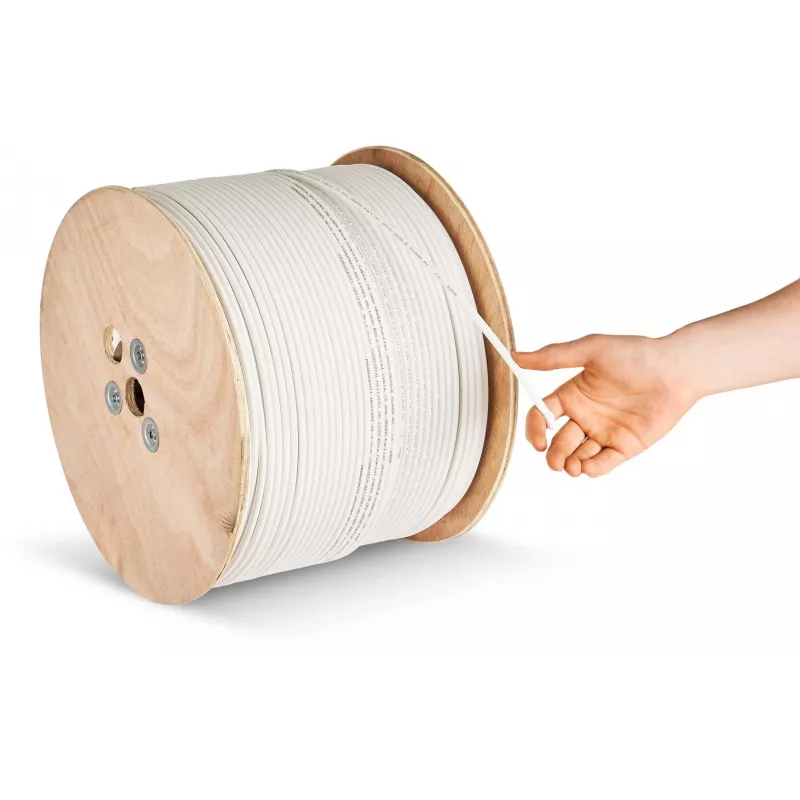

• Cable length: 500 m
• Outer diameter: 6.90 mm
• Attenuation @ 200 MHz: 7.5 dB/100m
• Attenuation @ 860 MHz: 16.0 dB/100m
• Attenuation @ 2150 MHz: 27.0 dB/100m
• Return loss (5-470 MHz): >23 dB
• Operating temperature: -25°C to +70°C
• Colour: White

Recommendations

For optimal performance, use with F-type connectors and ensure proper termination. Suitable for indoor and outdoor installations when protected from direct UV exposure. Always comply with local building regulations for fire safety.
