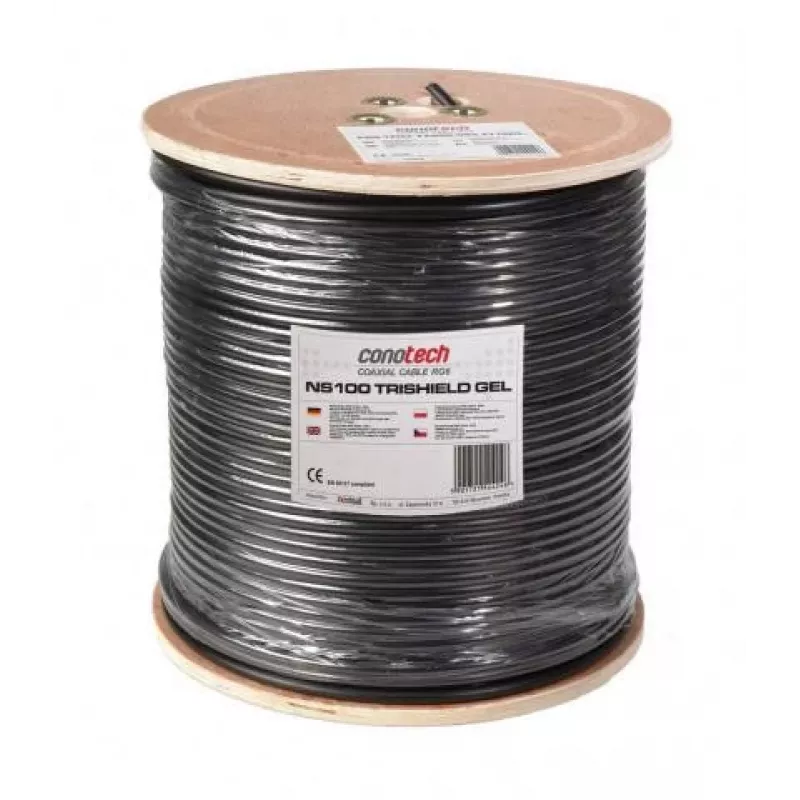

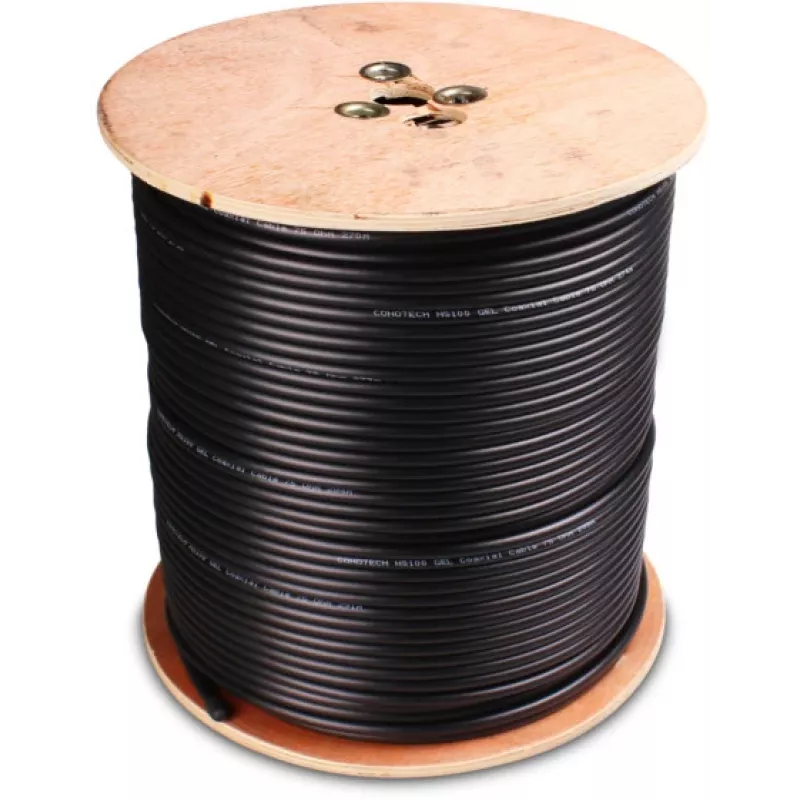

Cabo coaxial CONOTECH NS-752 NS100 TRI com gel preto - rolo 300m

The CONOTECH NS-752 is a high-performance coaxial cable designed for professional signal transmission in DVB-T, DVB-S, CCTV, radio, and internet applications. This NS100 TRI gel-filled cable features triple shielding for excellent electromagnetic interference protection and moisture resistance, making it ideal for outdoor and demanding installations. Supplied on a 300-meter spool, it ensures reliable connectivity over long distances.

Advantages

Triple shielding (aluminium foil + copper braid + aluminium foil) provides superior screening effectiveness >100 dB, minimizing signal loss and interference. The gel-filled construction prevents moisture ingress, extending cable life in harsh environments. UV-resistant PVC jacket ensures durability in outdoor use. Solid copper center conductor (1.0 mm) guarantees low attenuation and high signal integrity.

Suitable for

• DVB-T and DVB-S antenna installations
• CCTV camera connections
• Radio frequency signal distribution
• Internet and broadband connectivity
• Outdoor and underground cabling

Key specifications

• Cable type: Coaxial, 75 Ohm impedance
• Shielding: Triple (TRI-shield) – Aluminium foil + Copper braid + Aluminium foil
• Center conductor: Solid copper, 1.0 mm diameter
• Dielectric: Foamed polyethylene (FPE)
• Jacket: PVC, black, UV resistant
• Gel-filled: Yes
• Length: 300 meters on spool
• Outer diameter: 6.8 mm
• Screening effectiveness: >100 dB
• Attenuation: 8.0 dB/100m @ 200 MHz, 16.0 dB/100m @ 800 MHz, 28.0 dB/100m @ 2150 MHz
• Return loss: >18 dB (5-2150 MHz)

Recommendations

For optimal performance, use with appropriate F-type or BNC connectors (not included). Ensure proper grounding and avoid sharp bends to maintain signal quality. Suitable for both indoor and outdoor installations.
