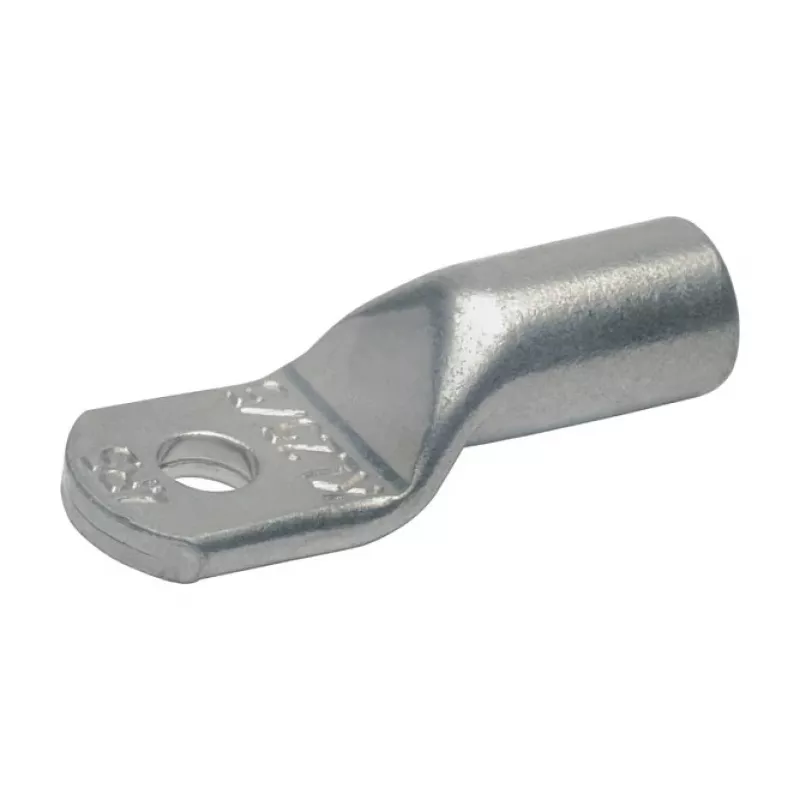

Terminal de anel de cobre Klauke 9R16, 120 mm², orifício para parafuso M16, DIN 46235

For heavy-duty power distribution and grounding, the Klauke 9R16 ring cable lug stands apart from generic lugs thanks to its seamless electrolytic copper construction and DIN 46235 compliance. This precision-engineered crimp connector is built to deliver reliable, low-resistance terminations for 120 mm² cables, making it a trusted choice in switchgear, control panels, and industrial wiring systems. The integrated inspection hole allows for quick visual confirmation of full cable insertion before crimping, reducing installation errors and ensuring a secure mechanical and electrical connection every time.

Highlights

• Material: Electrolytic copper (E-Cu) with >99.9% purity for maximum conductivity
• Cable cross-section: 120 mm²
• Bolt hole diameter: 16 mm (M16)
• Standard: DIN 46235
• Bare copper surface, untreated
• Inspection hole for visual verification of crimp

In daily use

This lug is ideal for creating secure, low-resistance connections in switchgear, control panels, and grounding systems. The inspection hole allows quick confirmation that the cable is fully inserted before crimping. Use with a suitable crimping tool designed for 120 mm² copper lugs to achieve a reliable, long-lasting termination. The seamless barrel design ensures uniform crimping and excellent mechanical strength, while the high-purity copper material maintains conductivity even under demanding conditions.

Full specifications

• Material: Electrolytic copper (E-Cu), purity >99.9%
• Cable cross-section: 120 mm²
• Bolt hole diameter: 16 mm (M16)
• Connection type: Crimp
• Lug type: Ring cable lug
• Standard compliance: DIN 46235
• Surface treatment: Untreated / bare copper
• Barrel design: Standard barrel with inspection hole
• Number of bolt holes: 1
• Operating temperature: -55°C to +150°C
• RoHS compliant: Yes
• Series: Klauke 9R

Final note

This Klauke 9R16 lug is manufactured from seamless E-Cu tubes, ensuring high conductivity and mechanical strength. It is a professional-grade component for demanding electrical installations.
