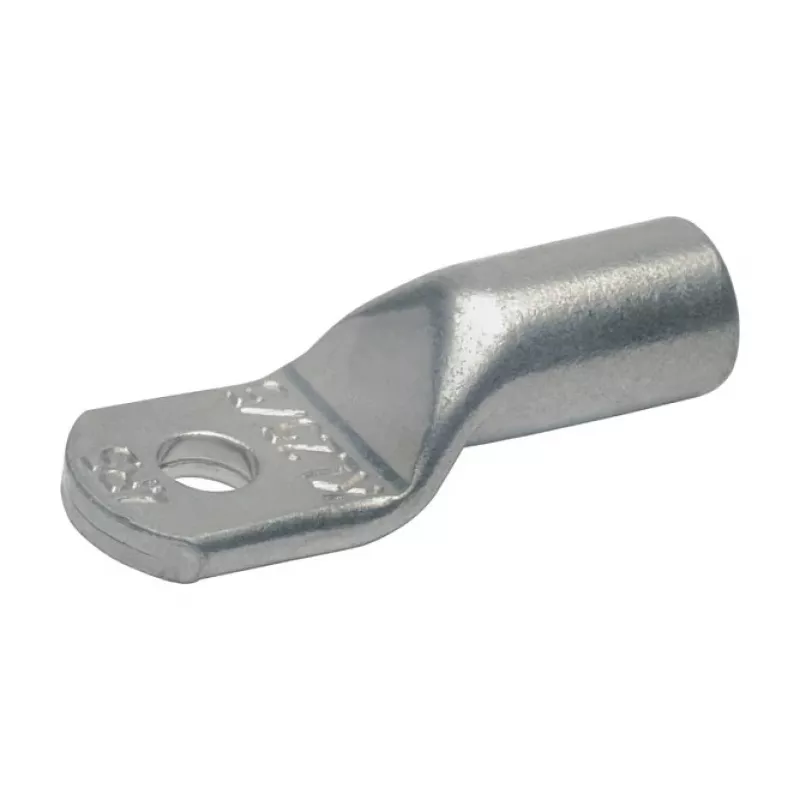

KLAU 7R12 terminal de cobre 70 mm² M12, estanhado eletroliticamente, DIN 46235

In high-current electrical installations, unreliable connections can lead to overheating, voltage drops, and even equipment failure. The KLAU 7R12 copper crimp cable lug eliminates these risks by providing a permanent, low-resistance joint between a 70 mm² copper conductor and an M12 stud or bolt. Manufactured from electrolytic copper and electro-tinned for corrosion resistance, this lug is engineered for demanding industrial and power distribution environments.

Who is it for

Electricians, panel builders, and maintenance technicians who need dependable terminations for large cross-section cables. It suits applications in switchgear, motor control centers, grounding systems, and renewable energy installations where vibration, thermal cycling, and moisture are present.

Main features

• Material: Electrolytic copper (E-Cu) for excellent conductivity and ductility.
• Surface treatment: Electro-tinned to resist oxidation and ensure long-term contact integrity.
• Conductor size: 70 mm², ideal for high-current power cables.
• Bolt hole: 12.5 mm diameter, compatible with M12 bolts or studs.
• Standard compliance: DIN 46235, guaranteeing dimensional accuracy and performance.
• Connection method: Crimp, providing a gas-tight, vibration-proof joint.
• Uninsulated design for use with heat-shrink tubing or other insulation systems.

Specifications

• Product type: Crimp cable lug
• Material: Electrolytic copper (E-Cu)
• Conductor cross-section: 70 mm²
• Bolt hole diameter: 12.5 mm
• Bolt size compatibility: M12
• Standard compliance: DIN 46235
• Surface treatment: Electro-tinned
• Connection method: Crimp
• Conductor material compatibility: Copper (Cu)
• Insulation: Uninsulated
• Number of mounting holes: 1
• Operating temperature range: -55°C to +150°C
• Voltage rating: Up to 1000 V (depending on application)
• Barrel type: Standard tubular
• Application: Power distribution, industrial wiring, grounding
• Corrosion protection: Yes (due to tinning)
• RoHS compliant: Yes
• Series: 7R

Tips

For optimal performance, use a hexagonal crimping die matched to the lug size and ensure the conductor is fully inserted into the barrel before crimping. Apply heat-shrink tubing over the barrel after crimping for additional insulation and environmental sealing if required.
