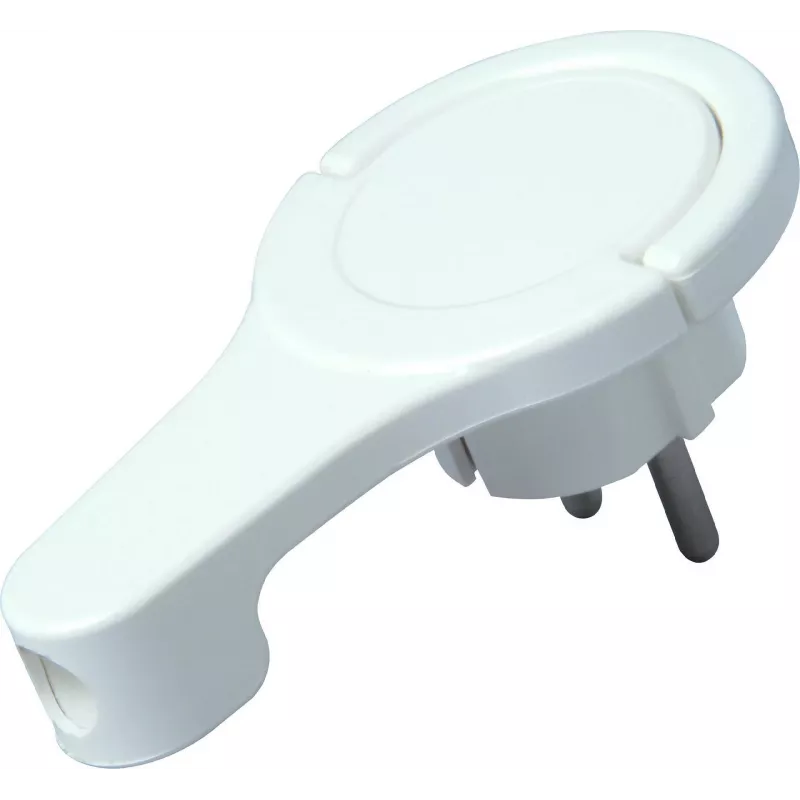

Ficha plana de proteção em plástico HEINRICH KOPP, angular, para 3x1,5 mm², branco ártico

Space behind furniture is often too tight for a standard Schuko plug, but this flat plug from HEINRICH KOPP solves that with a slim, right-angled design that keeps the cable close to the wall. The arctic white thermoplastic body blends into modern interiors while the integrated bracket takes strain off the connection. It is built for 3 x 1.5 mm² cables and delivers a secure, earthed connection for indoor appliances up to 16 A.

Highlights

• Flat Schuko plug (Type F) with protective contact for safe earthing
• Right-angled cable entry keeps the profile low behind furniture
• Integrated strain relief and bracket for durable cable retention
• Screw terminals accept 3 x 1.5 mm² flexible or rigid conductors
• Thermoplastic housing in arctic white, rated IP20 for indoor use
• Complies with DIN VDE 0620-1 and carries VDE certification

In daily use

Wiring is straightforward: strip the cable, insert the conductors into the clearly marked screw terminals, and tighten. The bracket clamps the outer sheath to prevent pulling on the terminals. Because the plug is flat, it sits almost flush with the socket, making it ideal for kitchen appliances, lamps, or AV equipment placed against a wall. The 2-pole + earth configuration and 250 V / 16 A rating cover most household devices.

Full specifications

• Brand: HEINRICH KOPP
• Model: 172002037
• MPN: 172002037
• EAN: 4008224588812
• Plug type: Schuko (Type F), flat / angled
• Material: Thermoplastic
• Colour: Arctic white
• Rated voltage: 250 V AC
• Rated current: 16 A
• Max. cable cross-section: 3 x 1.5 mm²
• Connection: Screw terminals
• Grounding: Yes (protective contact)
• Strain relief: Integrated
• Protection rating: IP20
• Application: Indoor
• Number of poles: 2-pole + earth
• Cable entry direction: Straight (rear)
• Standard compliance: DIN VDE 0620-1
• Certifications: VDE
• Mounting type: Cable-mounted
• Operating temperature: -5°C to +40°C

Final note

For a reliable, space-saving power connection that meets German VDE standards, this HEINRICH KOPP flat plug is a practical choice for any indoor installation.
