Ficha RJ45 LogiLink MP0020 transparente

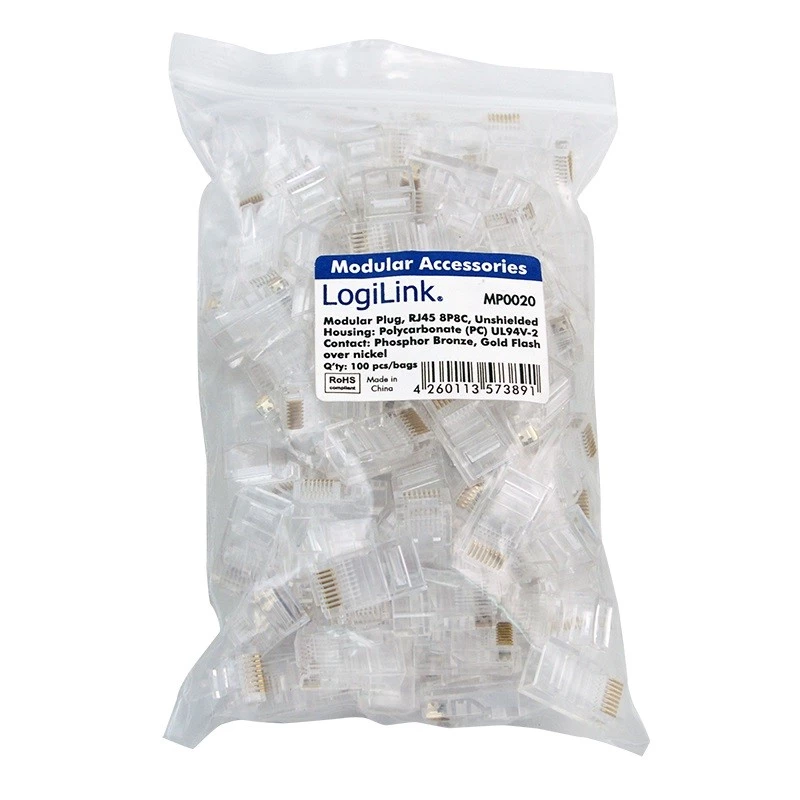

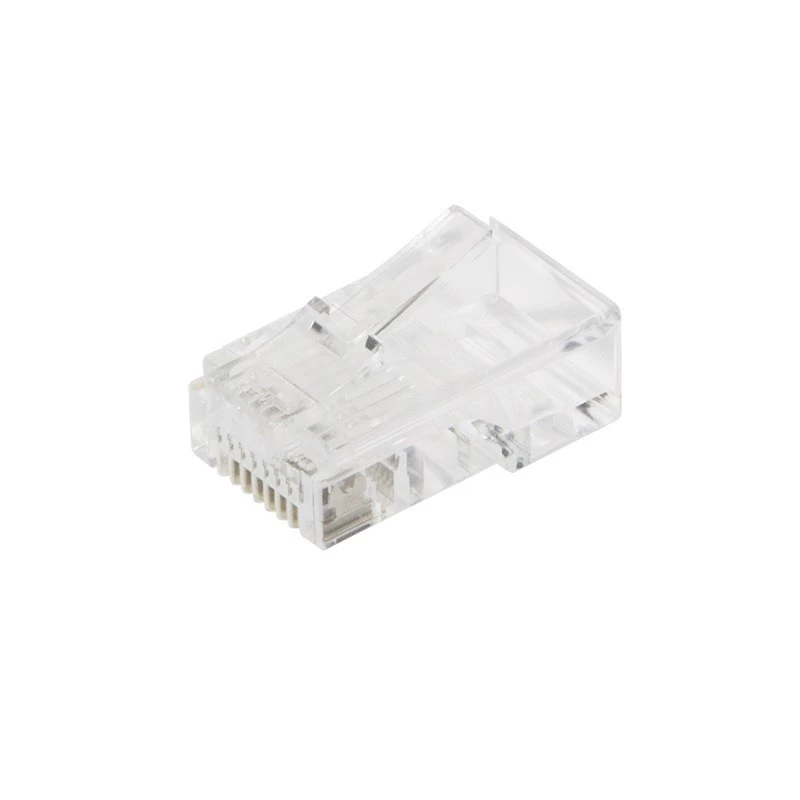

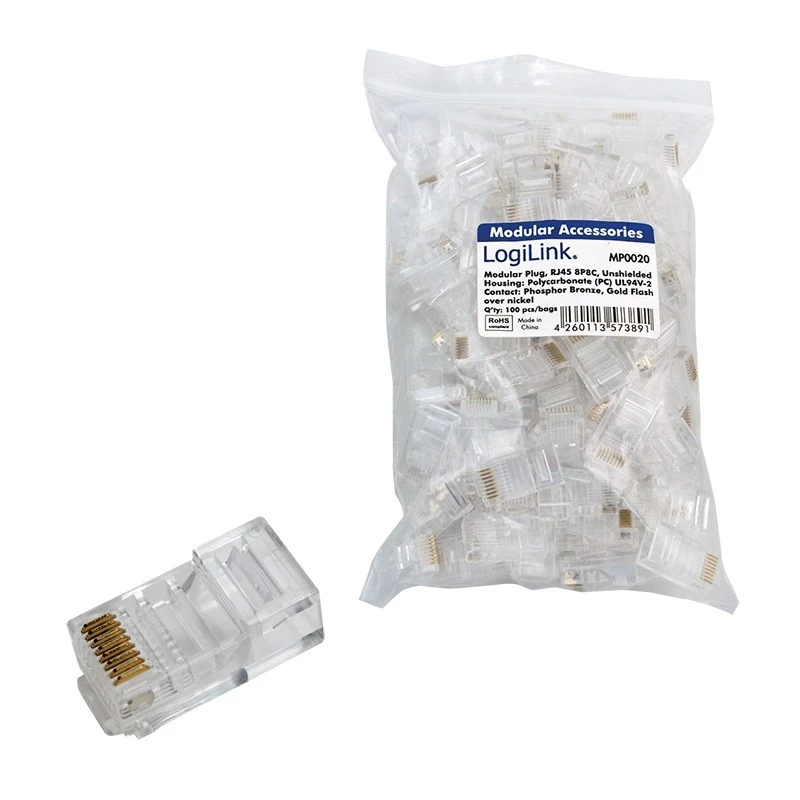

Modular Plug for flat cable RJ45 8P8C in a transparent body. The LogiLink MP0020 connector is unshielded and fitted with gold-plated contacts to ensure reliable conductivity and straightforward visual inspection during assembly. Supplied in a pack of 100, these transparent RJ45 connectors are suitable for creating or repairing Ethernet cables for home and small office networks.

Advantages

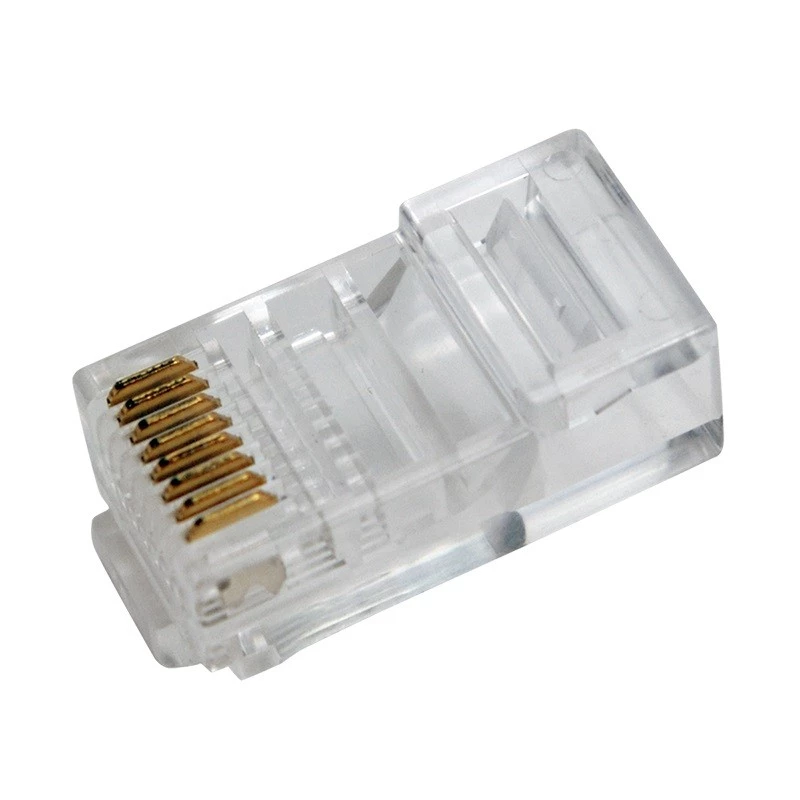

The transparent RJ45 connector features gold-plated contacts for improved contact quality and corrosion resistance. Its unshielded design is suitable for typical Ethernet installations where shielding is not required. The clear body allows easy alignment of flat cable conductors, facilitating faster and more accurate crimping. Supplied in a bulk pack of 100 pieces for cost-effective use in multiple projects.

Suitable for

• Termination of flat Ethernet cables (CAT5e/CAT6 compatible when using flat conductors)
• Creating patch cables for home or small office networks
• Repairing damaged RJ45 connectors on existing cables
• Small installation and cabling projects where unshielded connectors are acceptable

Key specifications

• Connector: RJ45 (8P8C)
• Shielding: Unshielded
• Contacts: Gold plated
• Body colour: Transparent
• Pack quantity: 100 pieces
• Brand: LOGILINK, MPN: MP0020, EAN: 4052792006278

How to use

Strip the outer jacket of the flat cable to the required length, arrange the conductors in the correct order, and insert them fully into the RJ45 connector so each wire reaches its contact. Use an appropriate crimping tool designed for flat cable RJ45 plugs to crimp the connector securely. After crimping, gently pull the cable to verify that all conductors are retained and that contacts make firm connection.

Recommendations

Use with flat-profile Ethernet cables and a compatible crimping tool. Avoid applications requiring shielded connectors or environments with high electromagnetic interference. Verify cable type and conductor order before crimping to ensure proper network performance.
