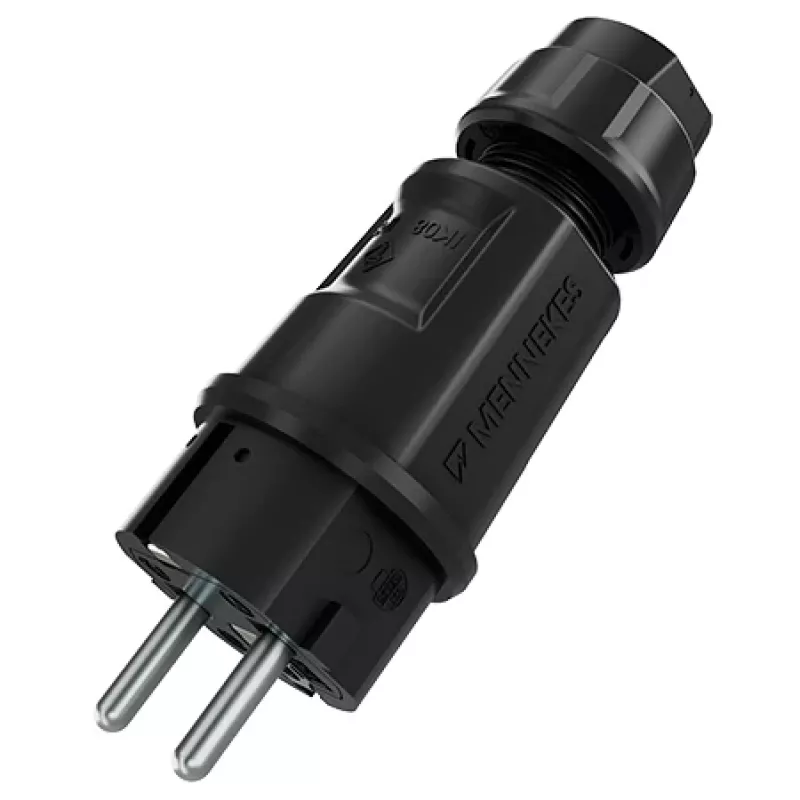

Ficha SCHUKO Mennekes preta 2P+PE IP54 (152072)

The Mennekes SCHUKO plug (Type F) in black is a robust and reliable connector designed for industrial and commercial applications. With a 2P+PE configuration, it ensures safe and secure electrical connections. The IP54 rating provides protection against dust and splashing water, making it suitable for demanding environments.

Advantages

High-quality thermoplastic housing and nickel-plated brass contacts ensure durability and long service life. The integrated strain relief and screw terminals facilitate easy and secure wiring. The plug is designed for a rated current of 16 A and voltage of 250 V AC, meeting standard requirements.

Suitable for

• Industrial power distribution
• Workshops and construction sites
• Outdoor electrical connections
• Extension cords and power tools

Key specifications

• Plug Type: SCHUKO (Type F)
• Configuration: 2P+PE
• Rated Current: 16 A
• Rated Voltage: 250 V AC
• IP Rating: IP54
• Colour: Black
• Connection: Screw terminals
• Cable Entry: Straight
• Max. Cable Diameter: 13 mm
• Max. Conductor Cross-section: 2.5 mm²
• Housing Material: Thermoplastic
• Contact Material: Brass, nickel-plated
• Operating Temperature: -25 to +80 °C
• Standards: DIN VDE 0620-1, IEC 60884-1
• Frequency: 50/60 Hz

Recommendations

For optimal performance, use with matching Mennekes sockets and ensure proper cable preparation. Always follow local electrical codes and regulations.
