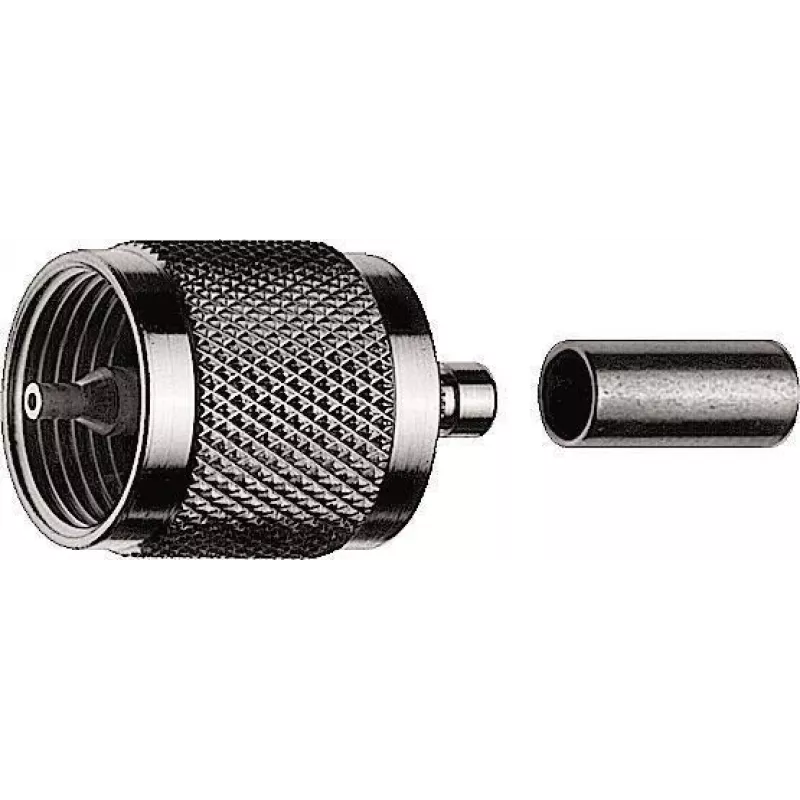

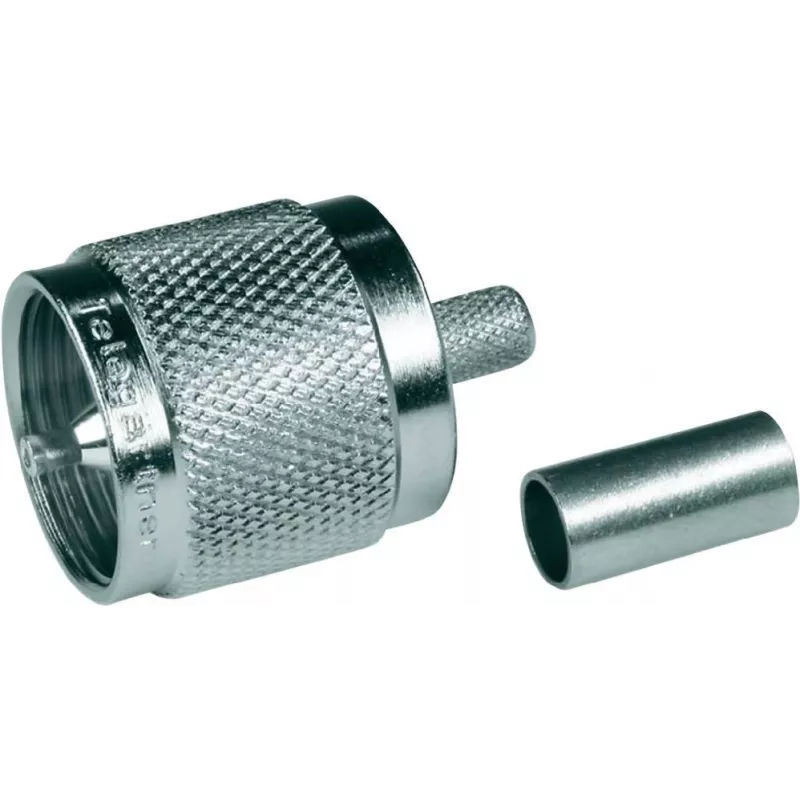

Ficha UHF macho de crimpagem Telegärtner G01 para RG-58 C/U, 50 Ohm, níquel/ouro, 1 unid. J01040A0001

DC to 300 MHz performance with VSWR ≤ 1.3 at 300 MHz makes this UHF plug a solid choice for RF connections up to 300 MHz. It is a crimp-style connector for RG-58 C/U and compatible 50 Ohm cables, built with a nickel-plated brass body and gold-plated center contact.

Overview

The Telegärtner J01040A0001 is a UHF male connector (PL-259 style) with crimp termination for both center and outer conductor. It fits RG-58 C/U, RG-58 A/U, RG-142 B/U, RG-223 /U, URM 43, URM 76, and KX 15 cables. The connector is rated for 500 Veff and operates from -40°C to +85°C.

What stands out

• Wide frequency range up to 300 MHz with low VSWR
• Gold-plated center contact for reliable signal transfer
• PTFE insulator for thermal stability and low loss
• Durable construction: 500 mating cycles

Technical details

• Impedance: 50 Ohm
• Frequency range: DC to 300 MHz
• VSWR: ≤ 1.3 at 300 MHz
• Voltage rating: 500 Veff
• Insulation resistance: ≥ 5 GΩ
• Center contact resistance: ≤ 1.5 mΩ
• Outer contact resistance: ≤ 1 mΩ
• Operating temperature: -40°C to +85°C
• Body material: Brass, nickel-plated
• Center contact: Brass, gold-plated
• Insulator: PTFE
• Gasket: Silicone
• Mounting type: Cable mount
• Series: G01

Our verdict

A dependable UHF crimp connector for 50 Ohm coax, offering solid electrical performance and robust materials for professional RF installations.
