Filtro EMI monofásico Akyga EN2080-12-S, 12 A, 120–250 V AC, 50/60 Hz, conectores de parafuso M4

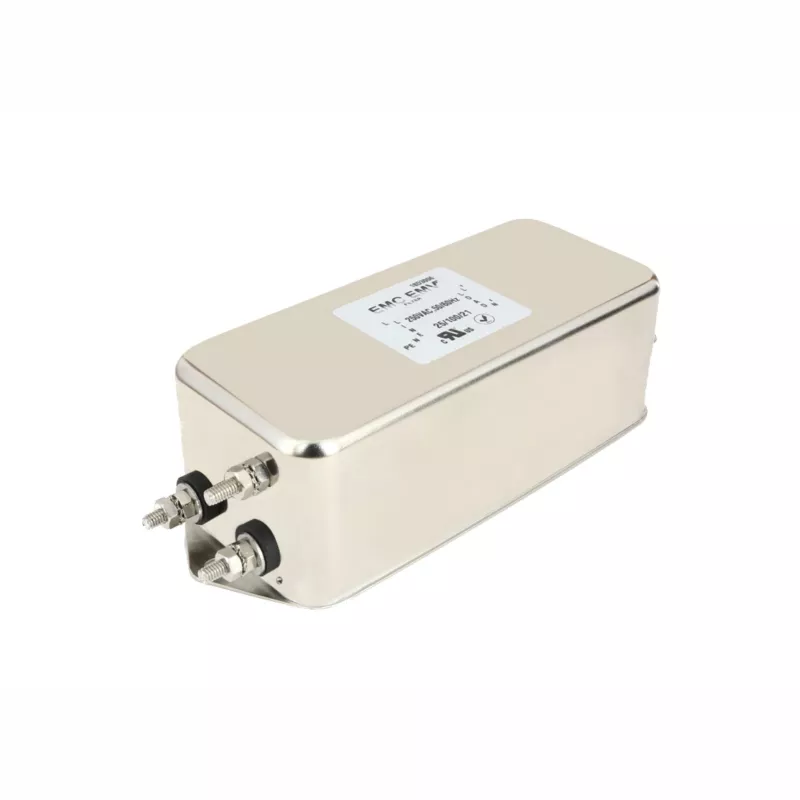

The Akyga EN2080-12-S is a single-phase EMI filter designed to protect systems from electromagnetic interference at operating currents up to 12 A. It features M4 screw terminals for a secure connection and a metal housing that shields against external interference and mechanical damage.

Key features

• Single-phase EMI filter
• Rated current: 12 A
• Rated voltage (AC): 120 - 250 V
• Input frequency: 50/60 Hz
• Number of poles: 2
• Connection type: M4 screw connectors
• Metal housing
• Operating temperature: -25 - 100 °C
• Compliance certificates: CE, RoHS, REACH

Specifications

• Brand: AKYGA
• MPN: EN2080-12-S
• Type: Single-phase EMI filter
• Rated current: 12 A
• Rated voltage (AC): 120 - 250 V
• Input frequency: 50/60 Hz
• Number of poles: 2
• Connection type: M4 screw connectors
• Material: Metal
• Operating temperature (T-T): -25 - 100 °C
• Width: 57 mm
• Height: 45 mm
• Depth: 162 mm
• Compliance certificates: CE, RoHS, REACH
