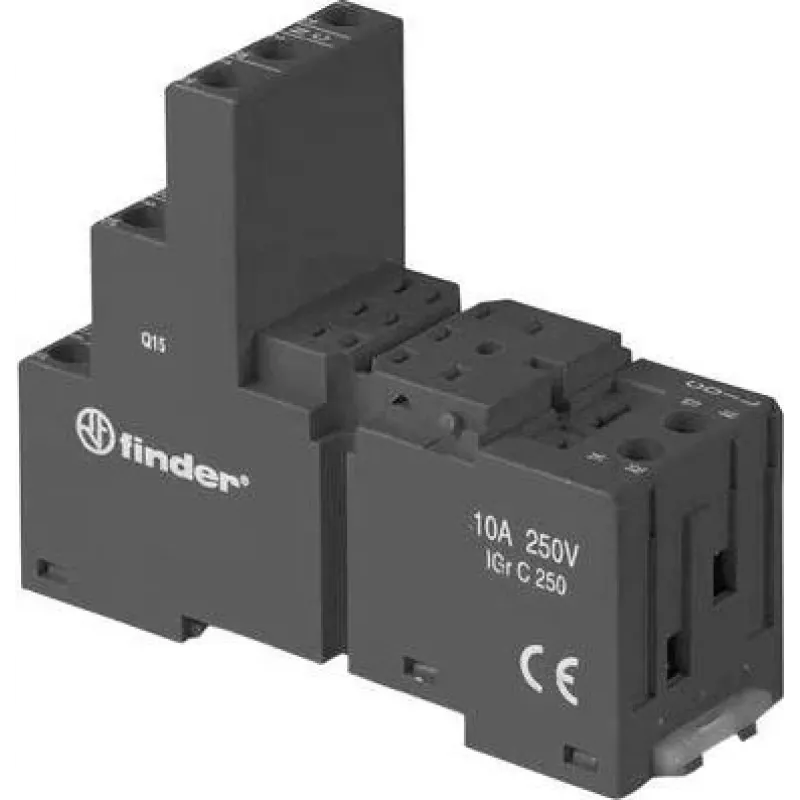

Finder 94.03.0 Base de parafuso Preta para relés 55.33/55.34 e 85.33/85.34, 3 polos, 10A 250V, montagem em calha DIN/painel

Relay installations often suffer from unreliable connections when sockets are mismatched or poorly secured. The Finder 94.03.0 screw socket eliminates this risk by providing a dedicated, robust base for Finder 55.33, 55.34, 85.33, and 85.34 series relays. Its 3-pole configuration with screw terminals ensures a firm, vibration-resistant hold for solid or stranded wires, making it ideal for industrial control panels, HVAC systems, and automation equipment.

Who is it for

This socket is built for electrical engineers, panel builders, and maintenance technicians who need a dependable relay mounting solution. It suits applications where DIN rail or panel mounting is required, and where wiring must remain secure under continuous operation. Whether you are retrofitting existing control cabinets or building new automation systems, this socket provides a professional-grade connection point.

Main features

• Compatible with Finder 55.33, 55.34, 85.33, and 85.34 relay series
• 3-pole screw terminal connection for solid or stranded conductors
• Rated for 10 A current and 250 V AC voltage
• DIN rail or panel mountable for flexible installation
• Black polyamide housing with IP20 protection
• Wide operating temperature range from -40 °C to +70 °C
• CE and cURus approved for global compliance

Specifications

• Product type: Relay socket
• Number of poles: 3
• Terminal type: Screw terminals
• Mounting type: DIN rail / panel mount
• Compatible relay series: Finder 55.33, 55.34, 85.33, 85.34
• Rated current: 10 A
• Rated voltage: 250 V AC
• Dielectric strength (coil-contacts): 6 kV (1.2/50 µs)
• Operating temperature range: -40 to +70 °C
• Wire stripping length: 8 mm
• Screw tightening torque: 0.5 Nm
• Max. solid wire cross-section: 1x 6 mm² / 2x 2.5 mm²
• Max. stranded wire cross-section: 1x 4 mm² / 2x 2.5 mm²
• Colour: Black
• Protection degree: IP20
• Insulation material: Polyamide (PA)
• Approvals: CE, cURus

Tips

When wiring, strip conductors to 8 mm and tighten screws to 0.5 Nm for optimal contact. For stranded wires, use ferrules to prevent fraying. Mount the socket on a standard 35 mm DIN rail or directly to a panel using appropriate screws. Always verify relay compatibility before installation to ensure a secure fit.
