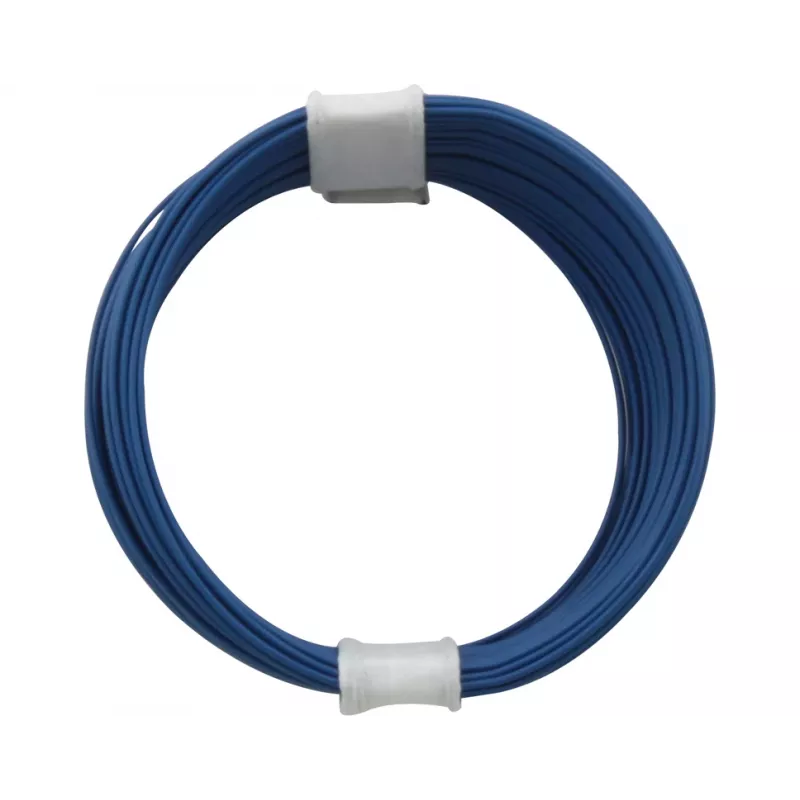

Fio de ligação Donau Elektronik 110-2 1 x 0,04 mm² azul 10 m

For fine internal wiring in low-voltage circuits, prototyping, and model building, this single-core hook-up wire offers a tinned copper conductor with PVC insulation in blue. The 0.04 mm² cross-section (approx. 31 AWG) suits compact connections where space is limited.

Key specifications

• Conductor cross-section: 0.04 mm²
• Number of cores: 1
• Conductor material: tinned copper
• Insulation: PVC, blue
• Length: 10 m
• Rated voltage: 300 V
• Temperature range: -20°C to +80°C
• Outer diameter: approx. 0.6 mm

Why choose it

The fine-stranded tinned copper conductor resists corrosion and remains flexible for routing in tight enclosures. The PVC jacket provides basic mechanical protection and flame retardancy.

Ideal use cases

• Internal wiring of electronic devices
• Prototyping on breadboards or perfboards
• Low-voltage signal connections
• Model building and hobby projects

Good to know

Supplied as a 10 m coil. The wire is suitable for soldering and standard stripping tools.
