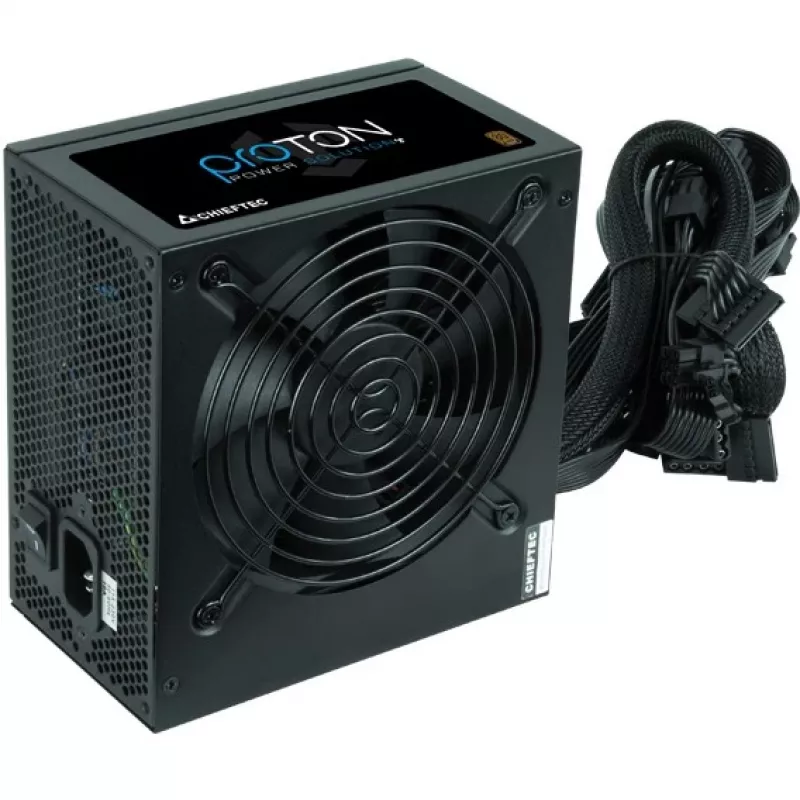

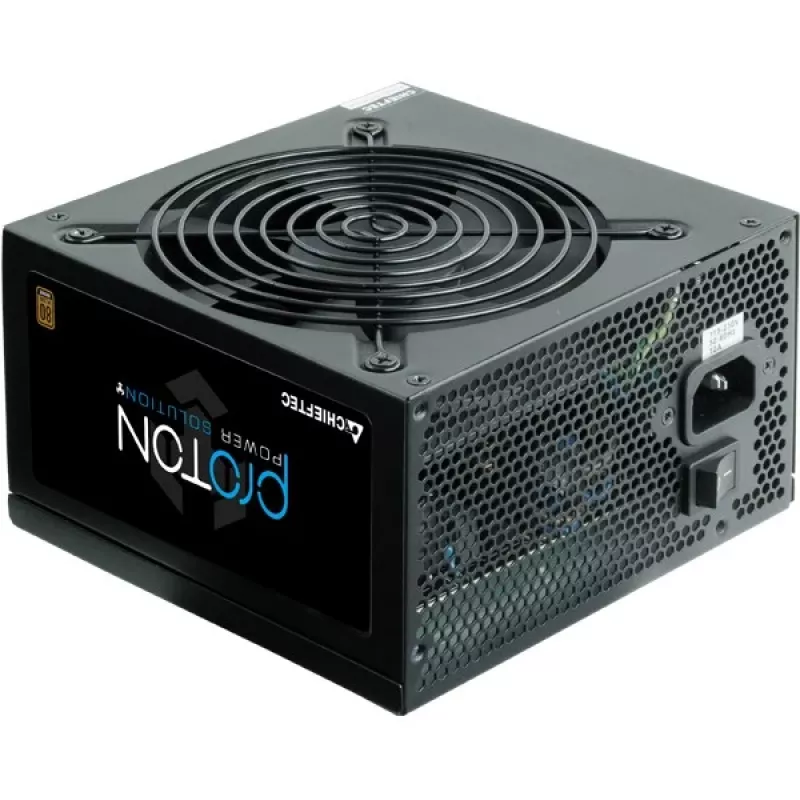

Fonte de alimentação Chieftec BDF-600S 600W

The Chieftec BDF-600S 600W is a compact ATX power supply designed for desktop PCs that require steady power delivery and basic efficiency features. Built with a 24-pin ATX motherboard connector and non-modular cabling, this unit offers a straightforward installation and supports AC input voltages from 115 to 230 V at 50–60 Hz. The BDF-600S integrates DC-to-DC conversion technology from the PROTON Series and holds an 80 PLUS Bronze efficiency certification, delivering around 85% typical efficiency while helping to maintain voltage stability and component longevity. Its active cooling system uses a 120 mm fan to manage thermal performance within its 150 x 140 x 87 mm enclosure.

Advantages

The Chieftec BDF-600S combines proven DC-to-DC power conversion with 80 PLUS Bronze certification to provide reliable voltage regulation and improved energy use compared with non-certified units. Its 600 W total output is suitable for many mainstream systems, and the included 120 mm fan balances cooling and noise for typical desktop environments. Compact dimensions and standard 24-pin ATX connectivity make it compatible with most mid-tower and small form-factor cases that accept standard PSUs.

Suitable for (tasks / use cases)

• Office and home desktop systems with single GPU or integrated graphics
• General-purpose PCs for web browsing, office applications and media playback
• System upgrades where a reliable, non-modular 600 W PSU is required
• Environments requiring wide input voltage compatibility (115–230 V)

When it may not be suitable

This non-modular power supply may not be ideal for builds where cable management and minimal internal airflow obstruction are priorities, since unused cables remain inside the case. It is also not targeted at high-end gaming rigs or multi-GPU configurations that demand higher power headroom or fully modular cabling for tidy builds.

Key specifications

• Total output power: 600 W
• Typical efficiency: approximately 85%
• Certification: 80 PLUS Bronze
• Input voltage range: 115–230 V AC
• Input frequency: 50–60 Hz
• Motherboard connector: 24-pin ATX
• Cooling: 120 mm fan (active cooling)
• Form factor / dimensions: 150 x 140 x 87 mm
• Colour: Black

How to use

Install the Chieftec BDF-600S into a compatible PC case following standard ATX PSU mounting procedures. Ensure the case is powered off and disconnected from mains before connecting the unit. Attach the 24-pin ATX connector to the motherboard and connect required peripheral and CPU power connectors to the system components. Route cables to avoid obstructing airflow from case fans and the PSU fan. After all connections are secure, reconnect mains power and power on the system to verify stable boot and operation. Observe standard safety precautions when handling internal components and grounding yourself to prevent electrostatic discharge.

What to consider before purchase

• Check total system power draw and leave headroom above 600 W for peak loads.
• Consider whether non-modular cabling meets your case airflow and cable management needs.
• Verify your case supports standard PSU dimensions (150 x 140 x 87 mm).
• Confirm required connectors (CPU/PCIe/peripheral) are present for your components.

Recommendations

For best results, pair the Chieftec BDF-600S with mainstream builds that do not exceed its power rating, maintain clear airflow paths in the case, and perform periodic dust maintenance on the 120 mm fan to preserve cooling efficiency and component longevity.
