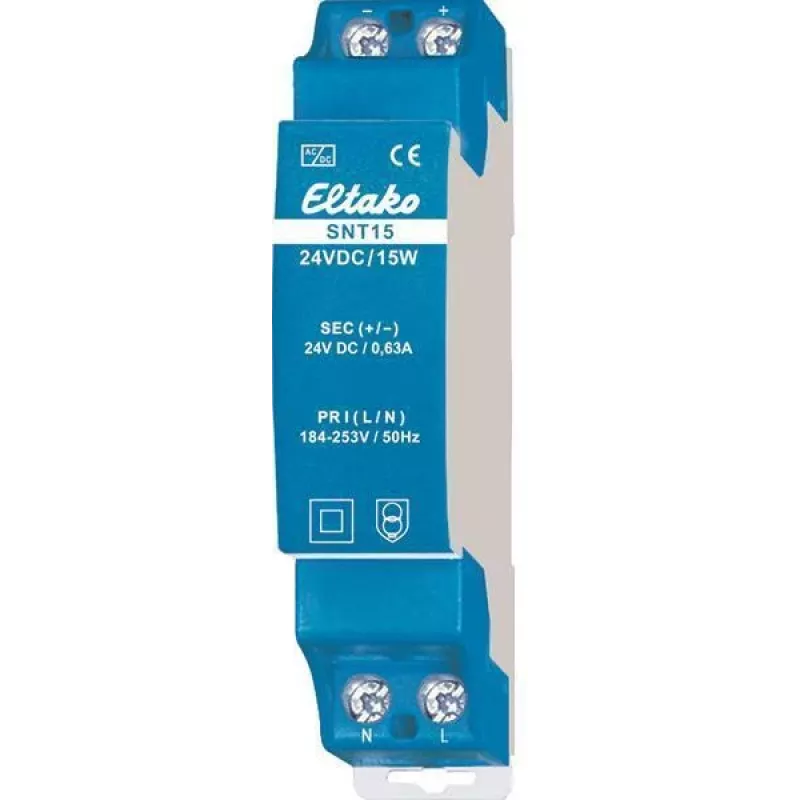

Fonte de alimentação de calha DIN Eltako SNT15-24VDC/15W 24V DC 15W 0,625A 20000168

The Eltako SNT15-24VDC/15W stands out as a compact DIN rail power supply that delivers stable 24V DC output in a width of just 1 TE (18 mm). Unlike bulkier alternatives, it combines a wide AC input range with DC input capability, making it versatile for building automation and control cabinet applications.

Highlights

• DIN rail mounting (TS35) for quick installation in distribution boards
• Wide input voltage range: 195-253V AC or 90-140V DC
• High efficiency >80% and low standby loss <0.5 W
• Short-circuit proof and overload protected
• Protection class II insulation for enhanced safety

In daily use

This switching power supply reliably powers sensors, actuators, and controllers in industrial and residential environments. Its screw terminals ensure secure connections, and the IP20 housing is suited for protected indoor installations. With an operating temperature range of -20°C to +50°C, it performs consistently across typical building conditions.

Full specifications

• Output voltage: 24V DC
• Output power: 15 W
• Output current: 0.625 A
• Input voltage (AC): 195-253V AC
• Input voltage (DC): 90-140V DC
• Input frequency: 50/60 Hz
• Efficiency: >80%
• Standby loss: <0.5 W
• Protection: short-circuit proof, overload protection
• Operating temperature: -20°C to +50°C
• Connection: screw terminals
• Number of outputs: 1
• Housing width: 1 TE (18 mm)
• Degree of protection: IP20
• Insulation class: Protection Class II

Final note

With its slim profile and dual input flexibility, the SNT15-24VDC/15W is a practical choice for space-constrained control cabinets requiring reliable 24V DC power.
