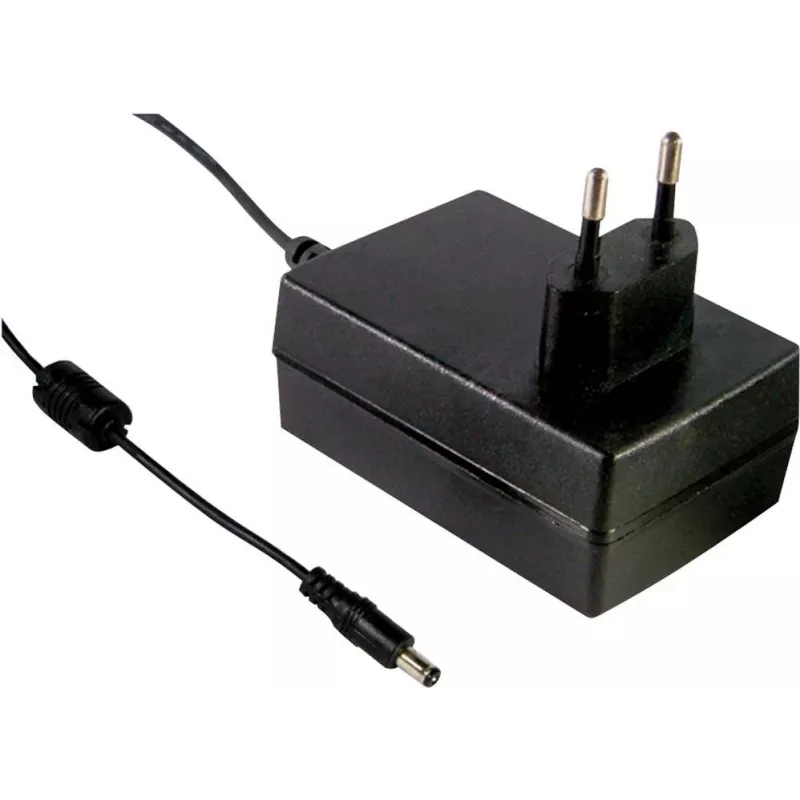

Fonte de alimentação de mesa AC/DC médica MEAN WELL GSM36E15-P1J 36W, 15V 2,4A, ficha DC 2,1x5,5mm, entrada IEC C14, eficiência Level VI

The GSM36E15-P1J from MEAN WELL stands apart from generic desktop power supplies by combining medical-grade safety (2 x MOPP) with high efficiency and a compact, reliable design. This 36-watt adapter delivers a stable 15V DC output at up to 2.4A, making it a trusted choice for medical devices, laboratory instruments, and industrial equipment where patient or operator safety is paramount.

Highlights

• Medical safety approvals: ANSI/AAMI ES60601-1 and IEC/EN60601-1 with 2 x MOPP isolation
• Ultra-low no-load power consumption: less than 0.1W, meeting Level VI energy efficiency requirements
• Wide input voltage range: 90 to 264V AC, suitable for global use without switches
• Comprehensive protection: short circuit, overload, over voltage, and over temperature
• Low ripple and noise: 120mVp-p for clean power delivery
• Operating temperature range: -30°C to +70°C, with full power up to +50°C

In daily use

Connect the IEC C14 socket to a standard mains cord (sold separately) and plug the 2.1 x 5.5mm centre-positive barrel connector into your device. The adapter runs cool and silent, with an efficiency of 88% reducing heat and energy waste. Its desktop form factor keeps the power supply away from the device, minimising electromagnetic interference and simplifying thermal management in tight enclosures.

Full specifications

• Brand: MEAN WELL
• Model: GSM36E15-P1J
• MPN: GSM36E15-P1J
• Output voltage: 15V DC
• Output current: 2.4A
• Output power: 36W
• Input voltage: 90 ~ 264V AC
• Input frequency: 47 ~ 63 Hz
• Efficiency: 88%
• No-load power consumption: <0.1W
• DC connector: 2.1 x 5.5mm barrel plug, centre positive
• AC input connector: IEC 320-C14
• Medical safety: 2 x MOPP (ANSI/AAMI ES60601-1, IEC/EN60601-1)
• Protections: short circuit, overload, over voltage, over temperature
• Operating temperature: -30 ~ +70°C
• Ripple & noise: 120mVp-p
• Leakage current: <100µA
• Energy efficiency level: Level VI
• Form factor: desktop type

Final note

When safety and reliability cannot be compromised, the MEAN WELL GSM36E15-P1J delivers certified medical-grade performance in a compact, energy-efficient package.
