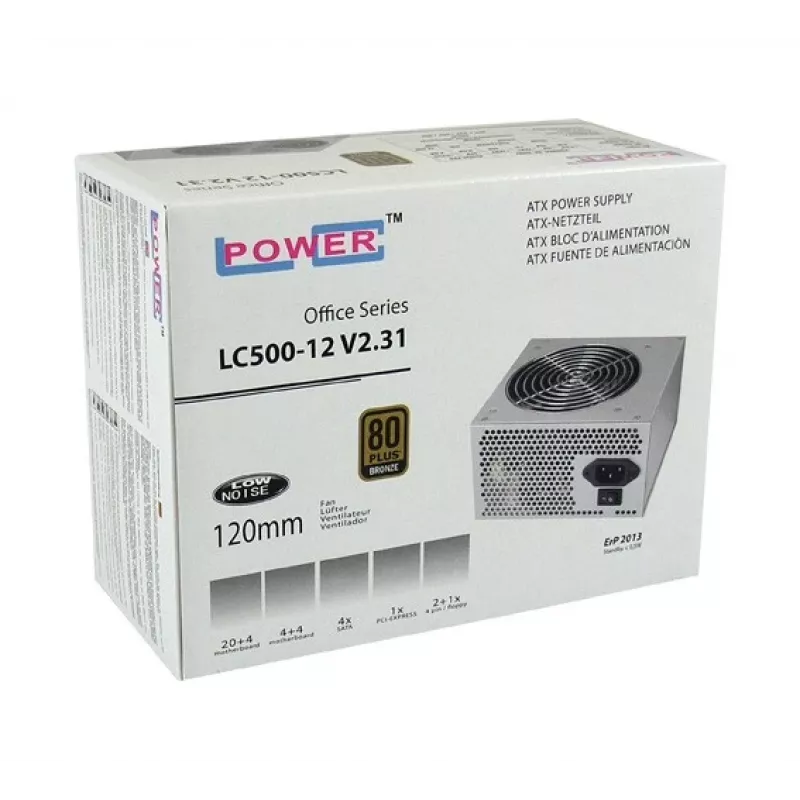

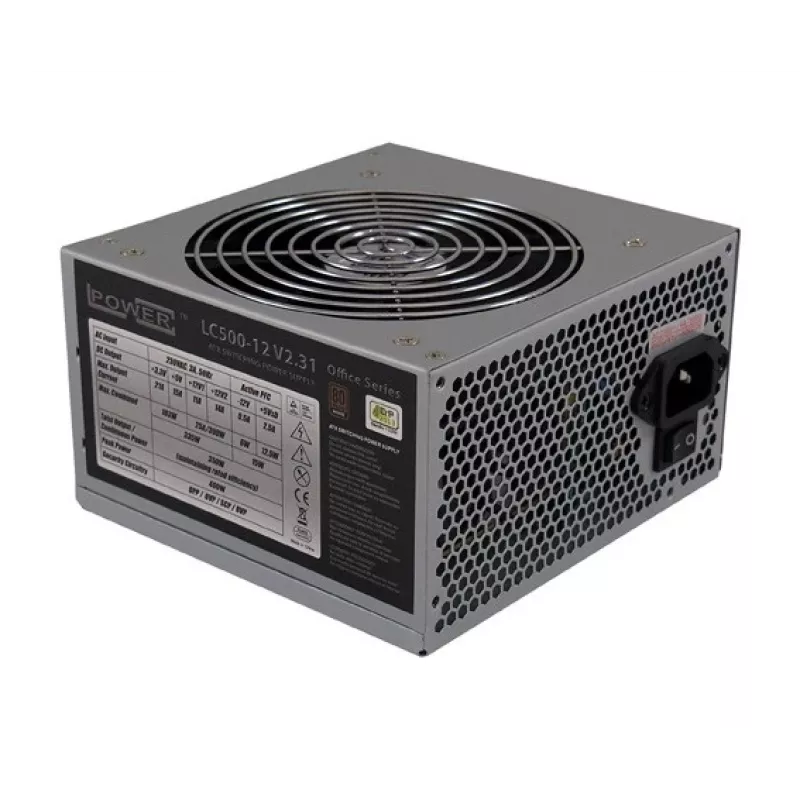

Fonte de alimentação LC-Power LC500-12 V2.31 350 W

The LC-Power LC500-12 V2.31 350 W is a compact ATX power supply designed for office and home PCs. It provides stable 350 W continuous output with 400 W peak power and includes standard connectors for typical office systems. The 120 mm fan and rear ventilation grille deliver effective cooling while keeping noise levels low. The unit is 80 PLUS Bronze certified and meets TÜV and CE safety requirements, offering efficient operation and low standby consumption.

Advantages

This power supply combines a balanced price-performance ratio with energy-saving technology, achieving up to 88.63% efficiency. The 120 mm fan enables quiet operation suitable for work or home environments, and the non-modular cabling includes a 20+4 pin ATX connector and other common office connectors for straightforward installation. Standby power is reduced to 0.21 W, lowering idle energy use.

Suitable for

• Office desktop PCs
• Home computers for web, office applications and media playback
• Small business workstations with standard components

Key specifications

• Total power: 350 W (400 W peak)
• Efficiency: 88.63% (80 PLUS Bronze)
• Motherboard connector: 20+4 pin ATX
• Fan diameter: 120 mm
• Standby power: 0.21 W
• Certifications: TÜV, CE
• Colour: Grey
• Weight: 1.378 kg

How to use

Install the LC500-12 V2.31 into a compatible ATX case, secure it with the supplied screws and connect the 20+4 pin ATX cable to the motherboard. Attach the other necessary connectors to your drives and peripherals. Ensure the rear ventilation grille is unobstructed to allow proper airflow from the 120 mm fan. Verify all connections before powering on the system.

Recommendations

Place the PC in a location with at least a few centimetres of clearance behind the ventilation grille and avoid enclosing the case in tight cabinets to maintain cooling efficiency and low noise levels.
