Fonte de alimentação para calha DIN EXSYS EX-6973 60W 24V 2,5A

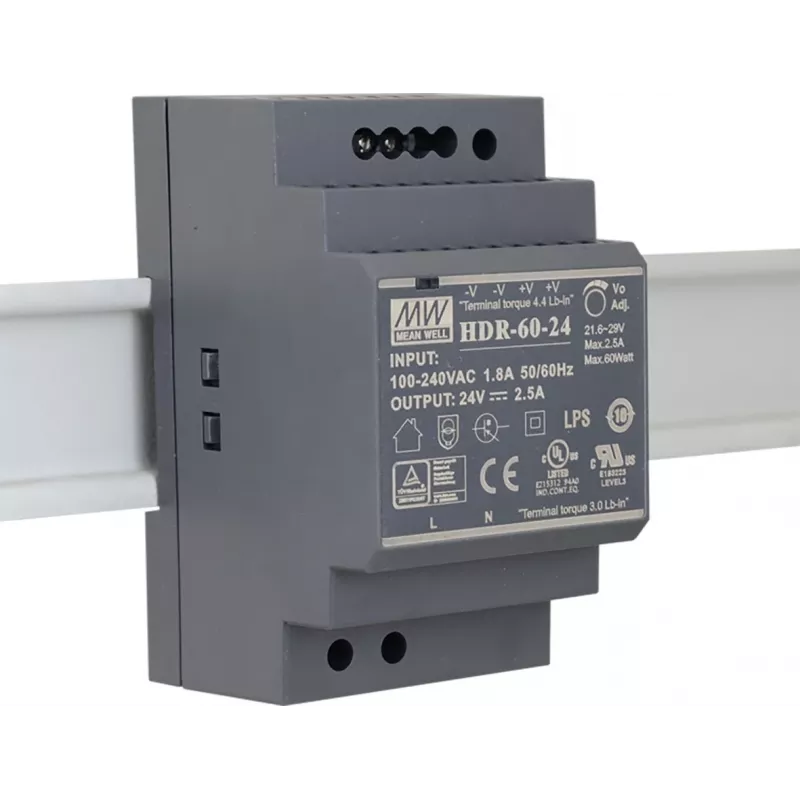

In industrial control cabinets and building automation, a stable DC power source is essential. The EXSYS EX-6973 is a DIN rail power supply that converts AC 100-240 V input to a regulated 24 V DC output with 2.5 A current, delivering 60 W of power. It mounts directly onto standard DIN rails (TS-35/7.5 or TS-35/15), making it suitable for distribution boards and machine enclosures.

Key specifications

• Input voltage: AC 100-240 V (50/60 Hz)
• Output voltage: DC 24 V
• Output current: 2.5 A
• Output power: 60 W
• Efficiency: >85%
• Mounting: DIN rail (TS-35/7.5 or TS-35/15)
• Protection: overload, overvoltage, short circuit
• Operating temperature: -20°C to +70°C
• Cooling: free air convection
• Ripple & noise: <150mVp-p
• MTBF: >100,000 hours

Why choose it

This power supply offers universal AC input for worldwide use and a compact DIN rail form factor. Its high efficiency reduces heat generation, and built-in protections ensure reliable operation in demanding environments.

Ideal use cases

• Industrial automation systems
• Building control panels
• Machine power distribution
• 24 V DC device supply

Good to know

The unit uses screw terminal blocks for input and output connections, providing secure wiring. It operates in a wide temperature range and is designed for continuous duty.
