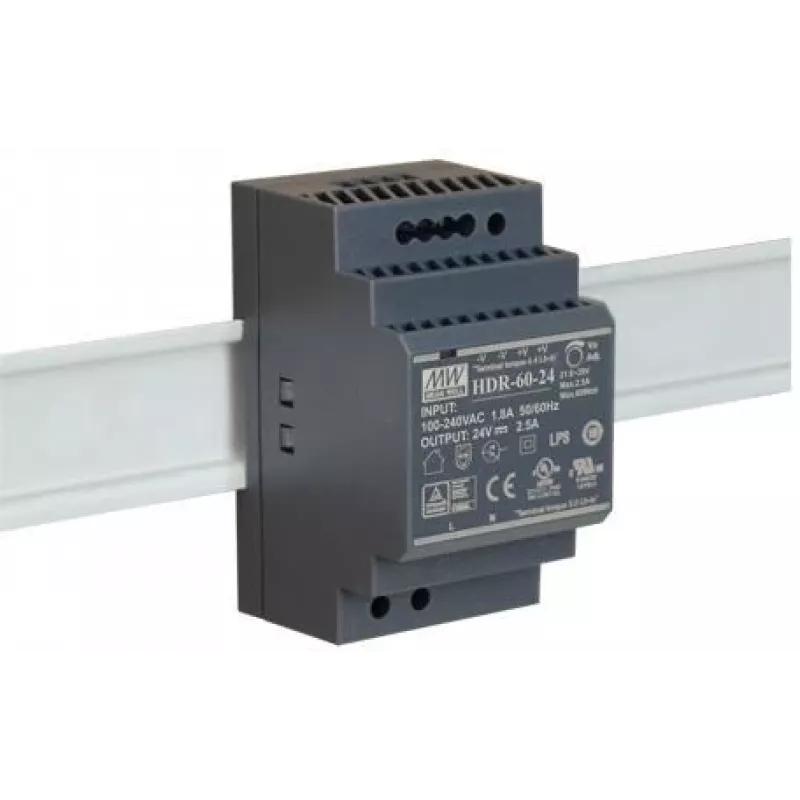

Fonte de alimentação para calha DIN PULSAR Mean Well HDR-60-24 24V/60W/2,5A

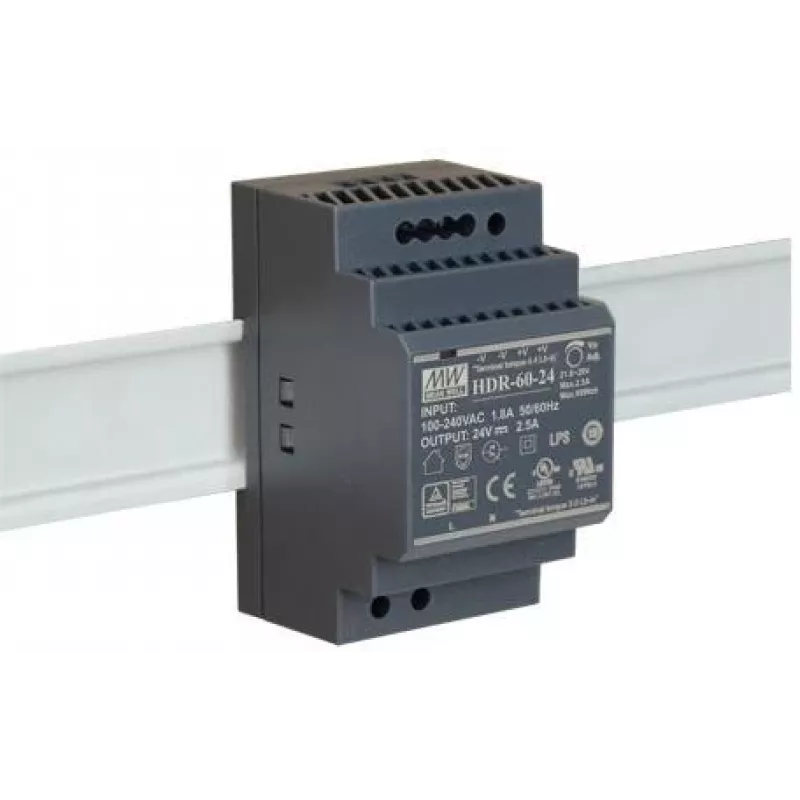

In control cabinets and automation panels, a reliable 24V DC bus is essential for powering sensors, PLCs, and other industrial electronics. The PULSAR DIN Rail Power Supply Mean Well HDR-60-24 delivers exactly that—a compact 60W unit that snaps onto standard TS-35 rails and converts 85–264VAC mains input into a stable 24V DC output at up to 2.5A. Its slim 52.5mm width saves valuable rail space, while free air convection cooling ensures silent, maintenance-free operation even in tight enclosures.

Key specifications

• Output: 24V DC, 2.5A, 60W
• Input: 85–264VAC or 120–370VDC
• Efficiency: 88%
• Mounting: DIN rail TS-35/7.5 or TS-35/15
• Protections: short circuit, overload, over voltage
• Operating temperature: -30°C to +70°C
• Ripple & noise: 150mVp-p
• Adjustable output voltage: 21.6–29V
• No-load power consumption: <0.3W
• Isolation: 3kVAC input to output
• MTBF: >700K hrs per MIL-HDBK-217F
• Certifications: UL 508, TUV EN60950-1, CE, CB

Why choose it

This power supply is built for industrial environments where uptime and safety are non-negotiable. The wide input range handles unstable mains voltages, and the full set of protections guards both the supply and connected loads. Its high efficiency reduces heat generation, extending component life and lowering energy costs. With a no-load consumption below 0.3W, it also meets strict standby power requirements.

Ideal use cases

• Powering PLCs, HMIs, and industrial controllers
• Supplying sensors, relays, and actuators in automation systems
• Building control and HVAC systems
• Security and access control installations

Good to know

The HDR-60-24 is part of Mean Well's HDR series, known for its ultra-slim design and high reliability. It operates silently thanks to convection cooling and can be mounted on either TS-35/7.5 or TS-35/15 rails. The output voltage is adjustable from 21.6V to 29V, allowing fine-tuning for specific load requirements.
