FRAENKISCHE ROHRWERKE GEBR. KIRCHNER GMBH & CO. KG curva de encaixe em aço inoxidável VBS-E 25 V2A/V4A W1.4571 (20860025)

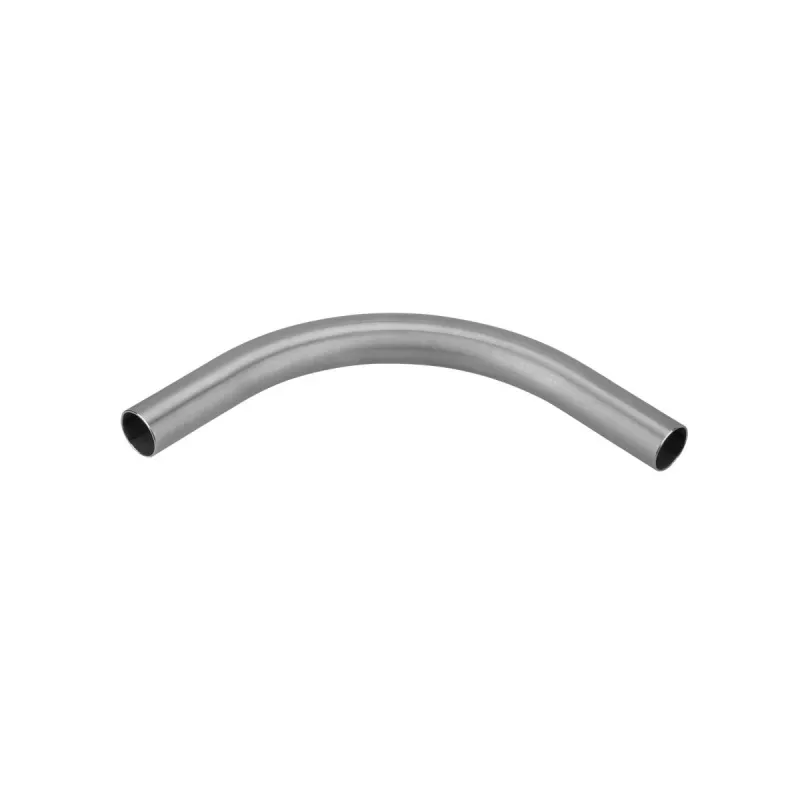

The VBS-E 25 stainless steel plug-in bend offers a quick push-fit connection for 25 mm conduit systems, eliminating the need for threading or welding. Its 90° angle and 60 mm bend radius route cables cleanly around corners while maintaining full inner diameter.

Highlights

• Material: Stainless steel 1.4571 (AISI 316Ti), equivalent to V4A corrosion resistance
• Nominal diameter: 25 mm
• Bend angle: 90°
• Connection type: Plug-in (Stecksystem)
• Bend radius: 60 mm
• Temperature range: -45°C to +400°C (material specific)
• Halogen-free

In daily use

Designed for electrical conduit systems, this bend installs in seconds without special tools. The stainless steel construction withstands aggressive environments, high temperatures, and UV exposure, making it suitable for industrial, outdoor, and marine applications where corrosion resistance is critical.

Full specifications

• Product type: Conduit bend / elbow
• Material grade: 1.4571 (AISI 316Ti)
• Corrosion resistance: Very high (V4A equivalent)
• Surface finish: Natural stainless steel
• UV resistance: Excellent
• Chemical resistance: Excellent
• Fire resistance: Non-flammable
• System compatibility: OBO Bettermann VBS-E conduit system
• Impact resistance: High
• Installation: Quick push-fit assembly

Final note

The VBS-E 25 combines durable stainless steel with a tool-free plug-in design, offering a reliable and corrosion-resistant solution for conduit installations.
