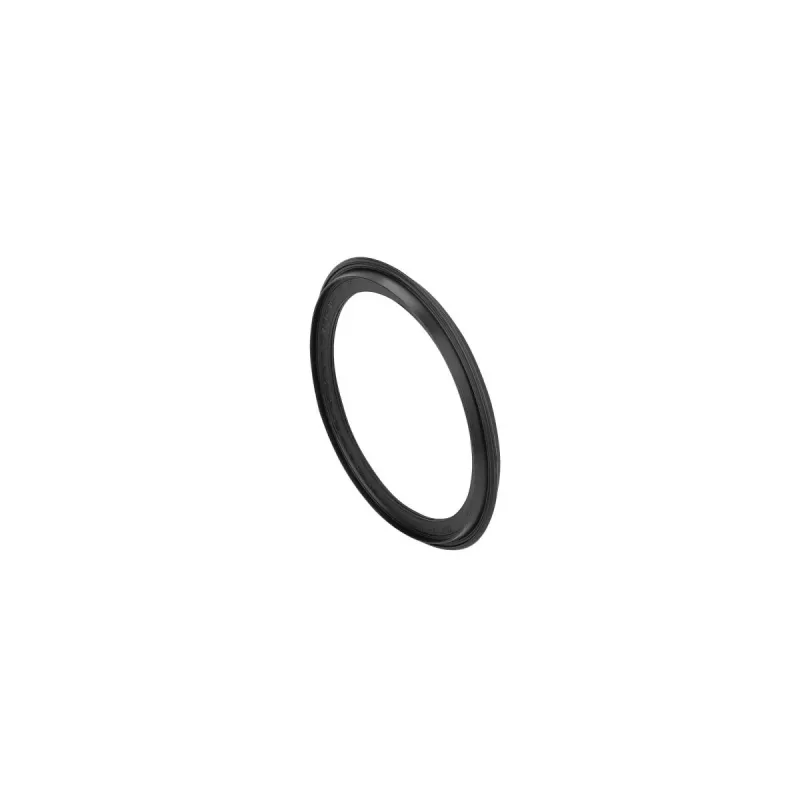

FRAENKISCHE ROHRWERKE Anel de vedação perfilado WD DN 160 para Kabuflex S/r (19980160)

Seal underground conduit joints with the FRAENKISCHE ROHRWERKE Profildichtring WD DN 160, engineered for waterproof integrity in Kabuflex S/r corrugated conduit systems. This EPDM rubber sealing ring withstands temperatures from -40°C to +100°C and offers excellent ozone and UV resistance for long-term durability.

Overview

The Profildichtring WD DN 160 is a profile sealing ring designed to create a watertight connection between Kabuflex S/r corrugated conduits with a nominal diameter of 160 mm. Its push-fit installation ensures a secure seal without additional adhesives, making it ideal for underground cable protection applications.

What stands out

• Waterproof (WD) sealing for reliable protection against moisture ingress
• EPDM rubber construction provides high resistance to aging, ozone, and UV radiation
• Halogen-free and chemically resistant to common acids, alkalis, and salts
• Designed for DIN EN 61386-24 compliant conduit systems

Technical details

• Product Type: Profile Sealing Ring
• Nominal Diameter (DN): 160 mm
• Compatibility: Fränkische Kabuflex S/r Corrugated Conduits
• Material: EPDM Rubber
• Colour: Black
• Operating Temperature Range: -40°C to +100°C
• UV Resistance: Yes
• Chemical Resistance: Good (against common acids, alkalis, salts)
• Installation Method: Push-fit / Gasket
• Halogen-free: Yes
• Ozone Resistance: Good
• Outer Diameter (Ring): Approx. 190 mm
• Ring Thickness: Approx. 18 mm

Our verdict

A robust and reliable sealing solution for Kabuflex conduit systems, the Profildichtring WD DN 160 ensures long-term waterproof performance in demanding underground environments.
