FRAENKISCHE ROHRWERKE curva de encaixe em alumínio ABS-E 16 curva de tubo, alumínio, 16 mm, 90° 20960016

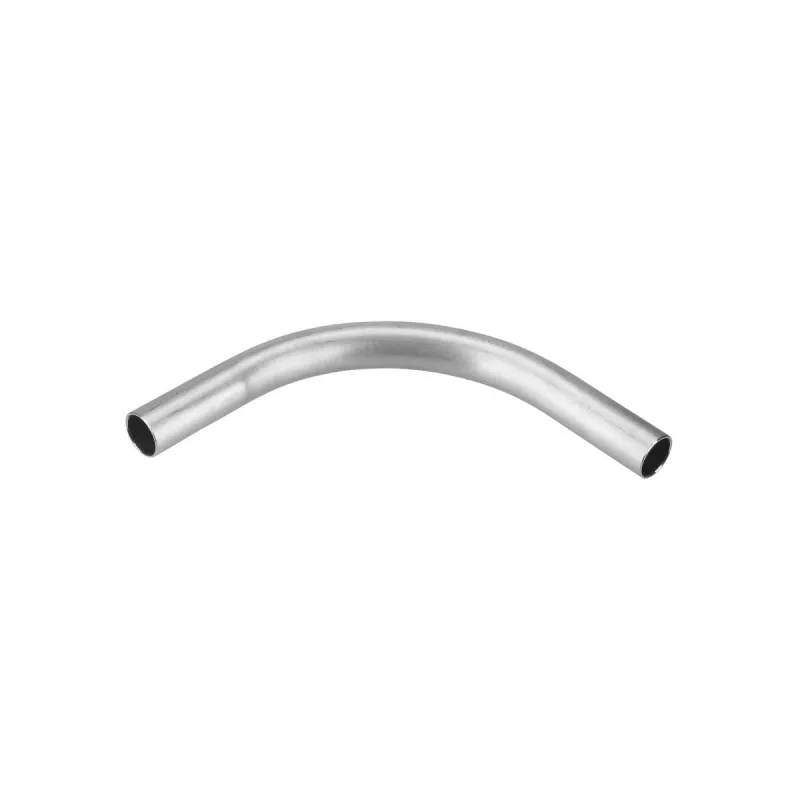

The Alu-Steckbogen ABS-E 16 is a push-fit 90° bend for 16 mm aluminium conduit systems. Its aluminium construction matches FRÄNKISCHE FFKu-EM-F-UV, FFKu-EM-F-UV speed and FFKu-EM-F-UV halogen-free conduits, creating a continuous metallic run without separate couplers.

Highlights

• Aluminium body for corrosion resistance and consistent shielding
• Push-fit connection speeds up installation
• 90° bend angle for routing around corners
• Compatible with FRÄNKISCHE FFKu-EM-F-UV series conduits
• UV-stabilized and halogen-free

In daily use

This bend is used in electrical installations where aluminium conduit must change direction. The push-fit ends accept the conduit directly, maintaining the system's mechanical protection and electromagnetic compatibility. The aluminium finish blends with the conduit, and the UV-stabilized material suits both indoor and outdoor applications.

Full specifications

• Product type: Conduit bend
• Material: Aluminium
• Nominal diameter: 16 mm
• Bend angle: 90°
• Connection type: Push-fit
• Compatible conduit series: FFKu-EM-F-UV, FFKu-EM-F-UV speed, FFKu-EM-F-UV halogen-free
• Temperature range: -25 °C to +60 °C
• UV resistance: UV-stabilized
• Halogen-free: Yes
• Flame retardant: Yes
• Corrosion resistance: Yes
• Colour: Aluminium

Final note

The Alu-Steckbogen ABS-E 16 provides a reliable, tool-free bend for FRÄNKISCHE aluminium conduit systems, ensuring a secure and durable connection.
