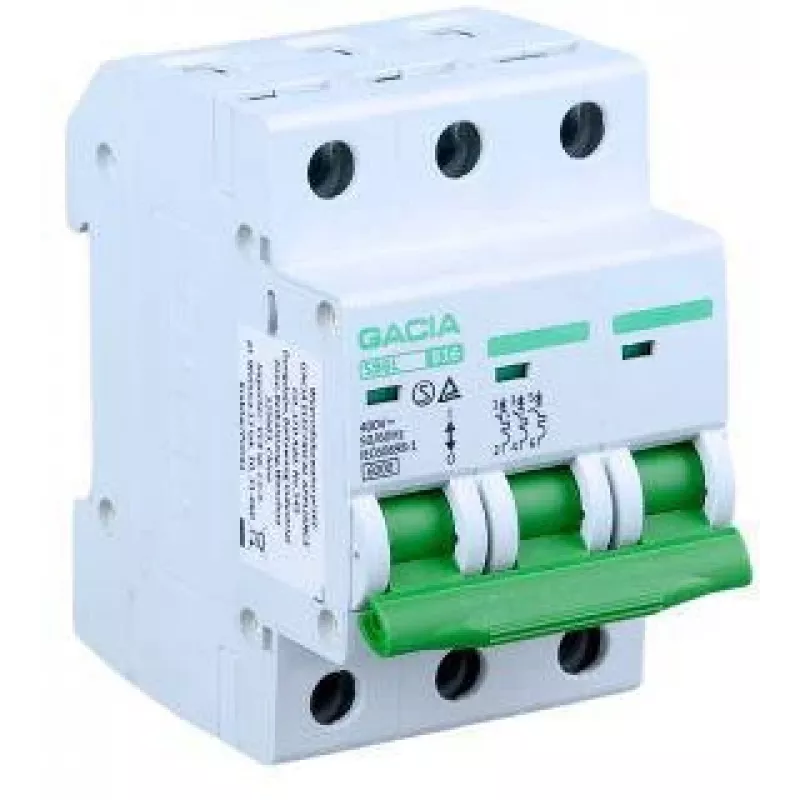

GACIA SB6L B 3P 50A 6kA disjuntor miniatura MCB 3 polos curva B 50A

The GACIA SB6L B 3P 50A is a high-quality miniature circuit breaker (MCB) designed for reliable overcurrent protection in residential and commercial electrical installations. With a 3-pole configuration, B-curve tripping characteristic, and a rated current of 50A, this MCB ensures safe and efficient operation. Compliant with IEC/EN 60898-1 standards, it offers a breaking capacity of 6kA and is suitable for DIN rail mounting.

Advantages

This MCB provides precise protection against overloads and short circuits, with a B-curve that trips between 3-5 times the rated current, ideal for resistive and lighting loads. Its compact design saves space in distribution boards, while the clear ON/OFF position indicator simplifies status monitoring. The screw terminals accommodate conductors up to 25 mm², ensuring secure connections.

Suitable for

• Residential electrical panels
• Commercial building distribution boards
• Lighting circuits
• General-purpose overcurrent protection

Key specifications

• Product Type: Miniature Circuit Breaker (MCB)
• Number of Poles: 3P (3-Pole)
• Rated Current (In): 50 A
• Tripping Curve: B-Curve
• Rated Short-Circuit Breaking Capacity (Icn): 6 kA
• Rated Voltage (Ue): 400 V AC
• Frequency: 50/60 Hz
• Mounting Type: DIN Rail (35mm)
• Terminal Type: Screw Terminals
• Terminal Capacity (Solid/Stranded): 1-25 mm²
• Electrical Endurance: 10,000 cycles
• Mechanical Endurance: 20,000 cycles
• Standard Compliance: IEC/EN 60898-1
• Protection Degree (Enclosure/Terminals): IP20
• Operating Temperature Range: -25°C to +55°C
• Energy Limiting Class: 3
• Indicator: ON/OFF Position Indicator
• Overvoltage Category: III
• Pollution Degree: 2
• Rated Impulse Withstand Voltage (Uimp): 4 kV

Recommendations

For optimal performance, ensure the MCB is installed by a qualified electrician and used within its specified ratings. Pair with compatible distribution boards and accessories for a complete electrical protection system.
