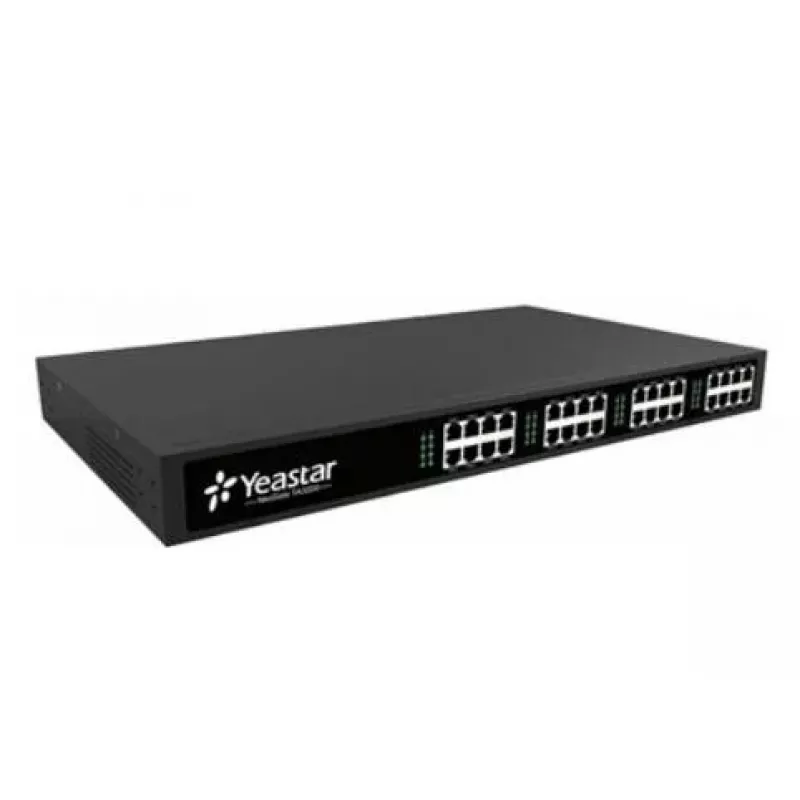

Gateway Yeastar TA3200

The Yeastar TA3200 is an FXS VoIP gateway designed to connect legacy telephones, fax machines and PBX systems to IP telephony networks and IP-based PBX platforms. It supports SIP and IAX2 signalling, common voice codecs (G.711, G.722, G.723, G.726, G.729A) and 10/100 Mbit/s Ethernet connectivity. The unit is a 1U rack-capable device with management options such as SNMP, RADIUS and TR-069, and supports network protocols including FTP, TFTP, HTTP, HTTPS and SSH for flexible deployment and remote management.

Advantages

The TA3200 provides a feature-rich gateway with carrier-grade reliability, flexible calling rules and broad interoperability with softswitches, PBX and IP-PBX systems. Web-based configuration simplifies setup and ongoing management, while its hardware and software architecture is designed for stable, continuous operation.

Suitable for

• Small and medium enterprises integrating traditional phones or fax machines into IP-based telephony
• Service providers needing SIP and IAX2 gateway connectivity
• Deployments requiring rack-mountable gateway hardware (1U) with remote management

Key specifications

• Model: Yeastar TA3200 (MPN: 10000203, EAN: 6926150033849)
• Interface: FXS VoIP gateway
• Ethernet: 10/100 Mbit/s
• Rack size: 1U
• Supported codecs: G.711, G.722, G.723, G.726, G.729A
• Protocols: SIP, IAX2
• Management: SNMP, RADIUS, TR-069; network: FTP, TFTP, HTTP, HTTPS, SSH

How to use

Install the TA3200 in a standard 19" rack or place it on a flat surface according to site requirements, connect the Ethernet port to your network and attach analogue phones or fax machines to the FXS ports. Access the web-based management interface via HTTP/HTTPS to configure SIP/IAX2 accounts, codec preferences and calling rules. Use SNMP, RADIUS or TR-069 for centralised management and monitoring when required.

Recommendations

For optimal voice quality, select appropriate codecs based on bandwidth availability (for example G.711 for highest quality on sufficient bandwidth, G.729A for bandwidth-limited links) and ensure firmware is kept up to date. Use HTTPS and SSH for secure remote management and configure SNMP or TR-069 for ongoing monitoring.
