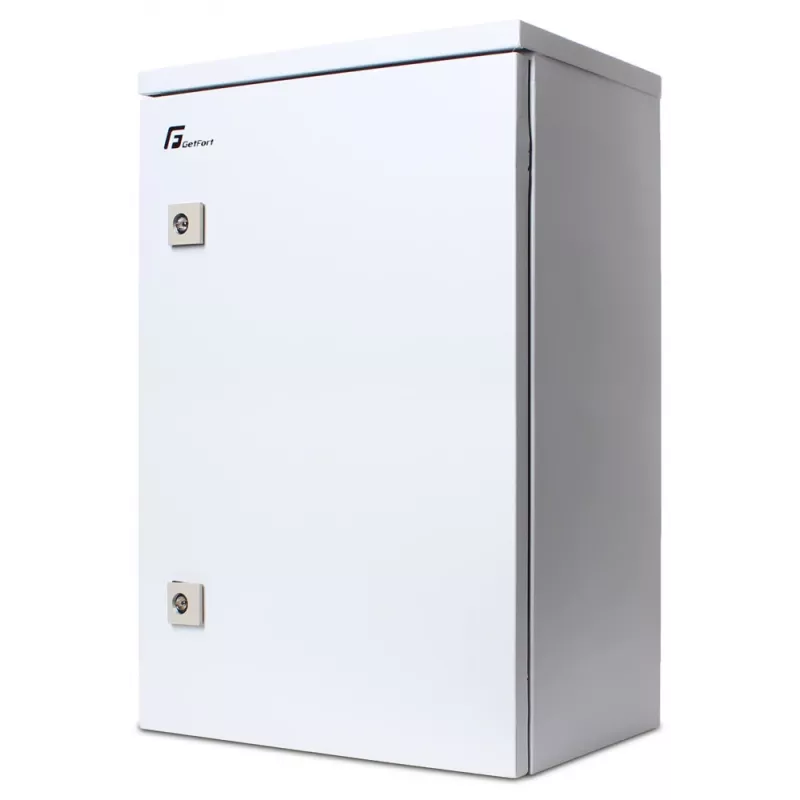

Getfort Armário de rack hermético 10 polegadas 9U para montagem na parede 330x230 mm IP54 cinzento-claro

The Getfort HGF09-32E-WSG is a high-quality hermetic wall-mount rack cabinet designed for secure and weatherproof installation of 10-inch network and IT equipment. With 9U of rack space and an IP54 rating, this enclosure is ideal for both indoor and protected outdoor environments where dust and water splashes are a concern.

Advantages

This rack cabinet offers robust protection for your valuable equipment. Its hermetic construction with IP54 rating ensures resistance to dust and water ingress, making it suitable for industrial settings, warehouses, or outdoor areas under cover. The solid metal door with single-point lock provides security against unauthorized access. The compact 10-inch form factor saves space while accommodating standard 10-inch rack-mountable devices.

Suitable for

• Networking equipment such as switches, patch panels, and routers
• Security systems including DVRs and CCTV components
• Industrial automation and control devices
• Telecommunications installations in challenging environments

Key specifications

• Rack Standard: 10-inch
• Rack Units: 9U
• External Dimensions (W x D x H): 330 x 230 x 400 mm
• Usable Depth: 200 mm
• Material: Powder-coated steel
• Colour: Light Grey (RAL 7035)

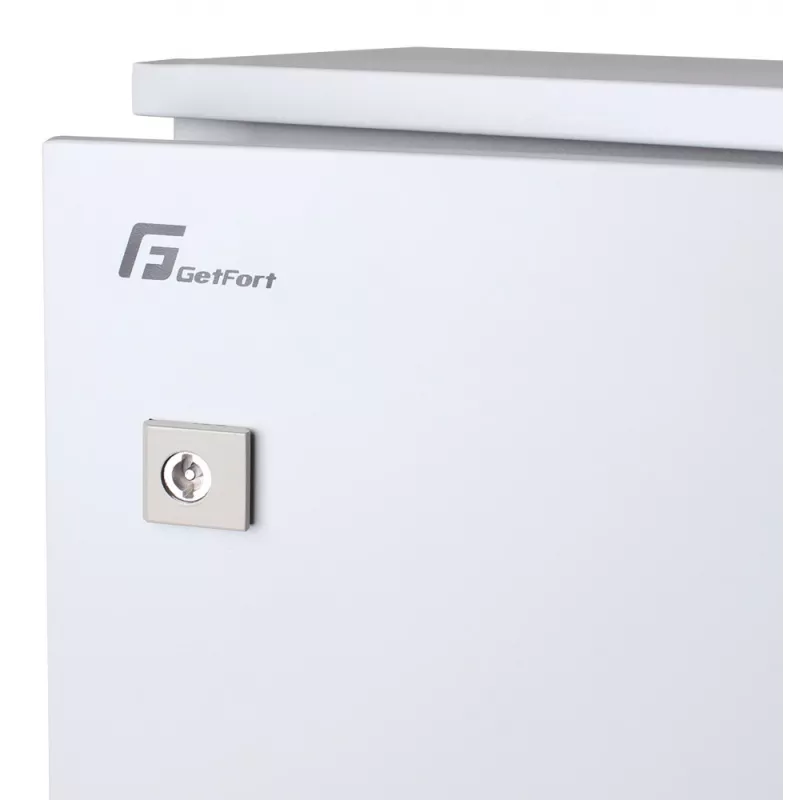

• Door Type: Solid metal door with single-point lock
• IP Rating: IP54
• Max Static Load: 20 kg
• Mounting: Wall-mounted
• Cable Entry: Gland type (bottom)

Recommendations

For optimal performance, ensure the cabinet is mounted on a sturdy wall capable of supporting the total weight of the cabinet and installed equipment. Use appropriate cable glands for sealing cable entries to maintain the IP54 protection. This cabinet is not suitable for direct outdoor exposure without additional weatherproofing.
