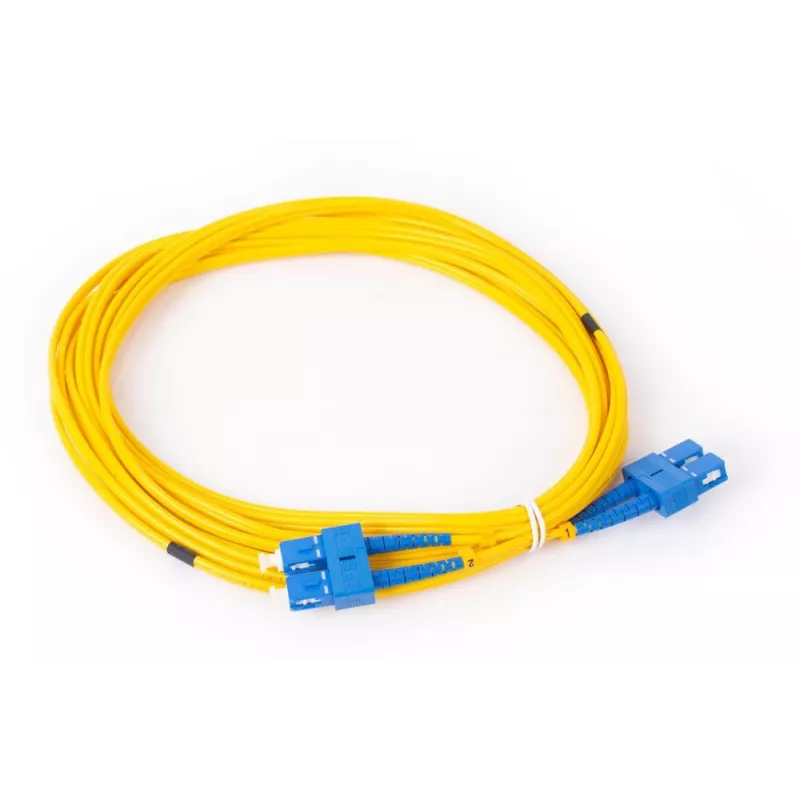

GETFORT GF-SUSUD3 cabo patch de fibra ótica monomodo SC/UPC para SC/UPC duplex 3m LSZH

In modern network infrastructures, reliable high-speed data transmission over long distances is critical. The GETFORT GF-SUSUD3 single-mode fiber optic patch cord solves the challenge of connecting fiber optic equipment with precision and low signal loss. With SC/UPC connectors on both ends and a duplex configuration, this 3-meter cable ensures stable, high-performance links in data centers, telecom rooms, and enterprise networks.

Who is it for

This patch cord is ideal for network engineers, IT professionals, and system integrators who need dependable fiber optic connectivity for switches, routers, media converters, and optical distribution frames. It is suitable for both new installations and maintenance of existing single-mode fiber systems.

Main features

• Single-mode 9/125 µm fiber for long-distance transmission up to 10 km and beyond
• SC/UPC to SC/UPC duplex connectors with ultra physical contact polish for low insertion loss
• 3-meter length provides flexibility in equipment layout and cable management
• LSZH (Low Smoke Zero Halogen) jacket for enhanced safety in enclosed spaces
• Low insertion loss ≤ 0.3 dB and high return loss ≥ 50 dB ensure signal integrity
• Supports wavelengths 1310 nm and 1550 nm with low attenuation
• Durable construction with 500 mating cycles and bend radius of 30 mm

Specifications

• Fiber mode: Single-mode (SM)
• Connector type: SC/UPC to SC/UPC
• Cable configuration: Duplex
• Cable length: 3 meters
• Fiber core/cladding diameter: 9/125 µm
• Connector polish: UPC (Ultra Physical Contact)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Cable diameter: 3.0 mm
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 50 dB
• Operating wavelengths: 1310 nm, 1550 nm
• Attenuation at 1310nm: ≤ 0.35 dB/km
• Attenuation at 1550nm: ≤ 0.25 dB/km
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Minimum bend radius: 30 mm
• Durability: 500 mating cycles
• Standard compliance: IEC 61754-4, TIA/EIA-568-C.3

Tips

When installing, avoid exceeding the minimum bend radius to prevent signal degradation. Use dust caps on connectors when not in use to maintain performance. For best results, clean connector end faces with appropriate tools before mating.
