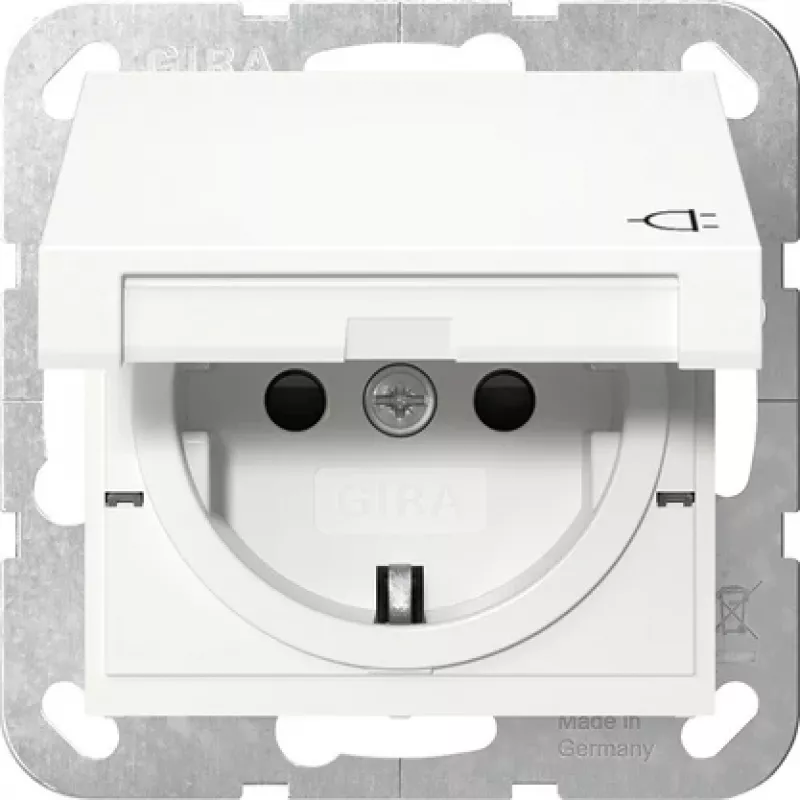

GIRA 475403 Tomada SCHUKO com tampa basculante, proteção reforçada contra contacto, System 55, branco puro

This Gira System 55 insert combines a SCHUKO socket outlet with a hinged lid and increased contact protection, offering a safe and clean solution for flush-mounted installations. Unlike standard sockets, the integrated lid keeps the socket covered when not in use, reducing dust accumulation and providing a sleek appearance.

Highlights

• SCHUKO socket outlet (Type F) with hinged lid
• Increased contact protection (child safety)
• Compatible with Gira System 55 frames
• Flush-mounted design for seamless integration
• Rated voltage: 250 V AC, rated current: 16 A
• Connection via screw terminals
• Material: thermoplastic (PC), UV-resistant
• Colour: pure white, glossy finish

In daily use

The hinged lid closes smoothly over the socket, protecting it from dirt and accidental contact. The increased contact protection ensures that foreign objects cannot be inserted into the live contacts, making it suitable for households with children. Installation is straightforward with screw terminals accepting conductors up to 2.5 mm².

Full specifications

• Socket type: SCHUKO (Type F)
• Number of sockets: 1
• Mounting type: Flush-mounted
• Rated voltage: 250 V AC
• Rated current: 16 A
• Connection type: Screw terminals
• Material: Thermoplastic (PC), UV-resistant
• Colour: Pure white
• Finish: Glossy
• Halogen-free: Yes
• Terminal capacity: Up to 2.5 mm² rigid conductors
• Design: Single gang insert
• Operating temperature: -20 °C to +40 °C

Final note

Designed for the Gira System 55 range, this socket insert offers a balance of safety, durability, and aesthetic appeal for modern electrical installations.
