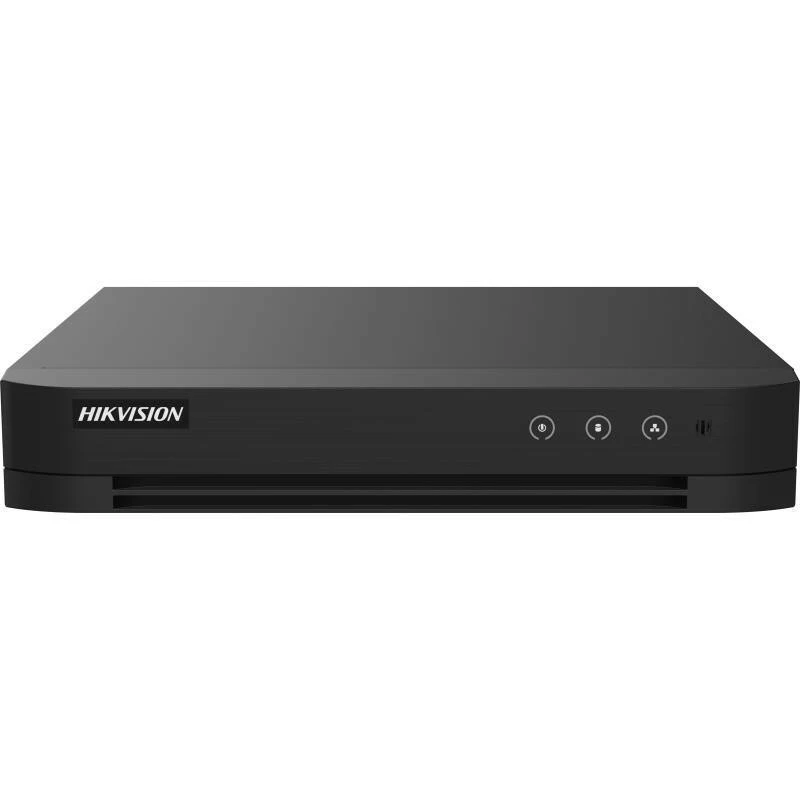

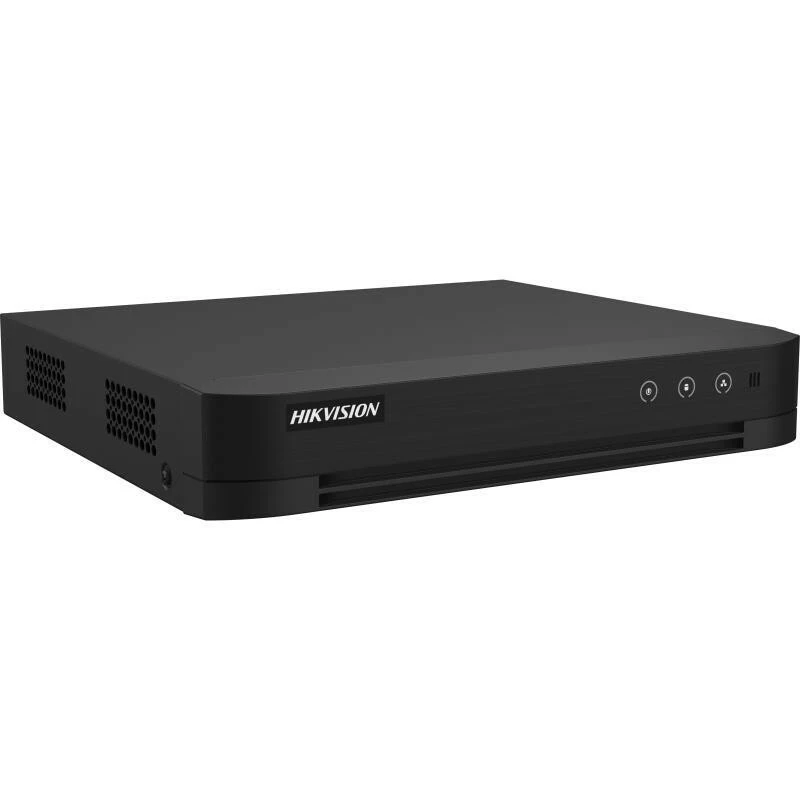

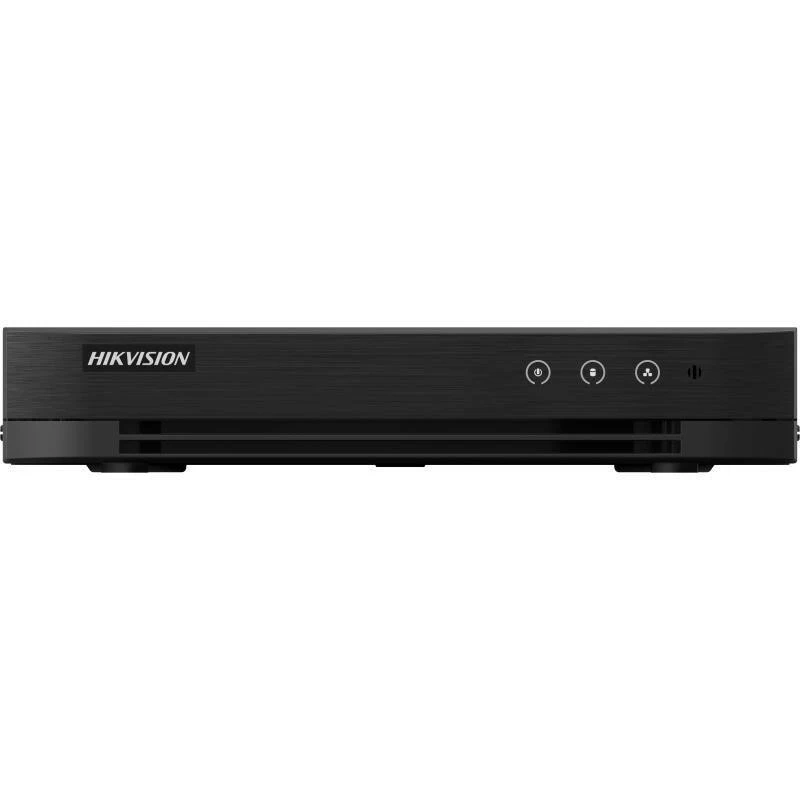

The Hikvision iDS-7216HQHI-M1/T is a high-performance 5-in-1 digital video recorder that supports HDTVI, AHD, CVI, CVBS, and IP cameras. With 16 analog channels plus 2 IP channels (up to 18 total), it delivers reliable surveillance for medium-sized installations. Featuring AcuSense technology for human/vehicle detection, this DVR ensures accurate alerts and efficient storage.

Advantages

AcuSense smart detection reduces false alarms by filtering out irrelevant motion. H.265 Pro+ compression saves bandwidth and storage without compromising video quality. The 1U desktop chassis is compact and easy to install.

Suitable for

• Retail stores and shops
• Office buildings
• Warehouses and logistics centers
• Educational facilities
• Small to medium businesses

Key specifications

• Video Input: 16-ch Analog + 2-ch IP (max 18-ch)
• Analog Input Type: HDTVI/AHD/CVI/CVBS/IP (5-in-1)
• Max Recording Resolution: 1080p @ 15fps analog; 6 MP IP
• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Audio: 1-ch RCA input, 1-ch RCA output, AoC support
• HDD: 1 SATA, up to 10 TB
• Network: 1 RJ45 10/100 Mbps
• USB: 1 × USB 2.0 (front), 1 × USB 3.0 (rear)
• Video Output: 1 HDMI, 1 VGA (up to 1920×1080)
• Smart Features: AcuSense (human/vehicle), Motion Detection 2.0
• Power: 12 VDC, ≤ 24 W (without HDD)
• Operating Temperature: -10 °C to +55 °C

Recommendations

For optimal performance, use with Hikvision AcuSense cameras and a high-quality SATA HDD up to 10 TB. Ensure proper ventilation and stable power supply.
