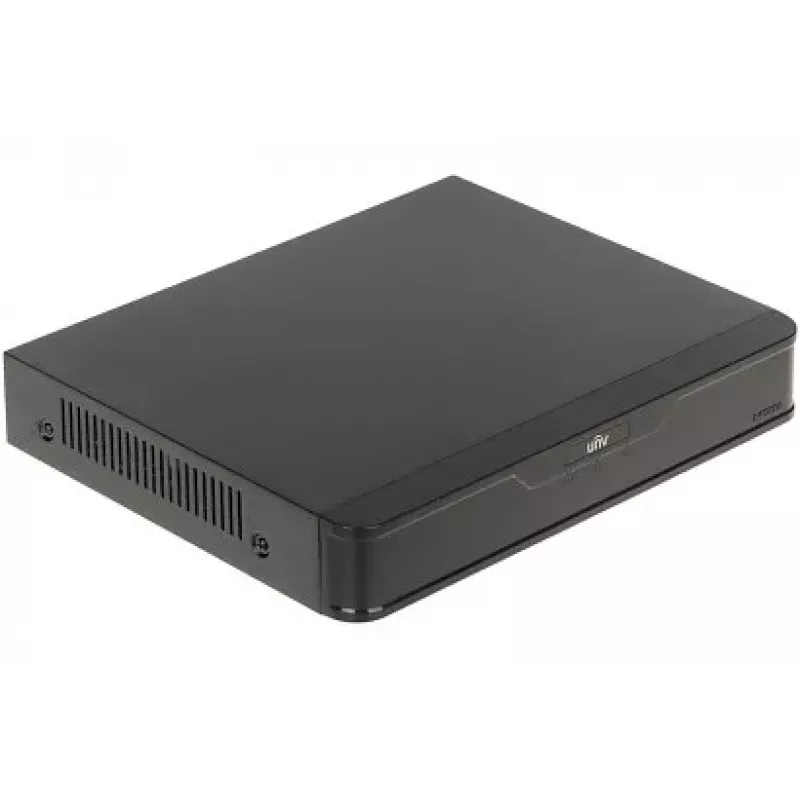

Gravador de vídeo em rede PoE UNIVIEW NVR501-08B-P8 8 canais 4K

The UNIVIEW NVR501-08B-P8 is a high-performance 8-channel network video recorder designed for small to medium-sized surveillance systems. With built-in PoE support and 4K recording capability, it provides a reliable and cost-effective solution for IP camera management.

Advantages

This NVR features 8 integrated PoE ports (IEEE 802.3af/at) with a total power budget of 72W, eliminating the need for separate power supplies for cameras. It supports up to 8MP (4K) resolution recording and offers smart compression technologies (Smart H.265+/H.265/Smart H.264+/H.264) to save storage space without compromising image quality. The device also supports AI features via compatible cameras, including SMD Plus and Perimeter Protection.

Suitable for

• Retail stores and small offices requiring up to 8 IP cameras
• Residential surveillance with PoE cameras
• Warehouses and workshops needing reliable 24/7 recording
• Upgrades from analog to IP systems

Key specifications

• Video Input: 8 IP channels
• PoE Ports: 8 (IEEE 802.3af/at, total 72W)
• Max Recording Resolution: 8MP (4K)
• Decoding: 1-ch 8MP@30fps or 4-ch 1080P@30fps
• Video Output: 1 HDMI (up to 4K), 1 VGA (up to 1080p)
• Audio: 1-ch RCA in, 1-ch RCA out, two-way talk
• Storage: 1 SATA port, up to 10TB
• Network: 1 RJ-45 10/100 Mbps
• USB: 2 USB 2.0 ports
• Power: DC 48V/53V external adapter
• Operating Temperature: -10°C to +55°C (14°F to 131°F)
• Mobile App: DMSS
• ONVIF: Profile S, T, G
• Max Incoming Bandwidth: 80 Mbps

Recommendations

For optimal performance, pair with UNIVIEW IP cameras supporting AI features. Use high-quality CAT5e or CAT6 cables for PoE connections. Ensure the NVR is placed in a well-ventilated area to maintain operating temperature.
